Model
Tappan TRS20WRHD3
Refrigerator, Side-By-Side, W/Dispenser
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRS20WRHD3Refrigerator, Side-By-Side, W/Dispenser
9 diagrams308 parts
Parts Sections (9)
Diagram

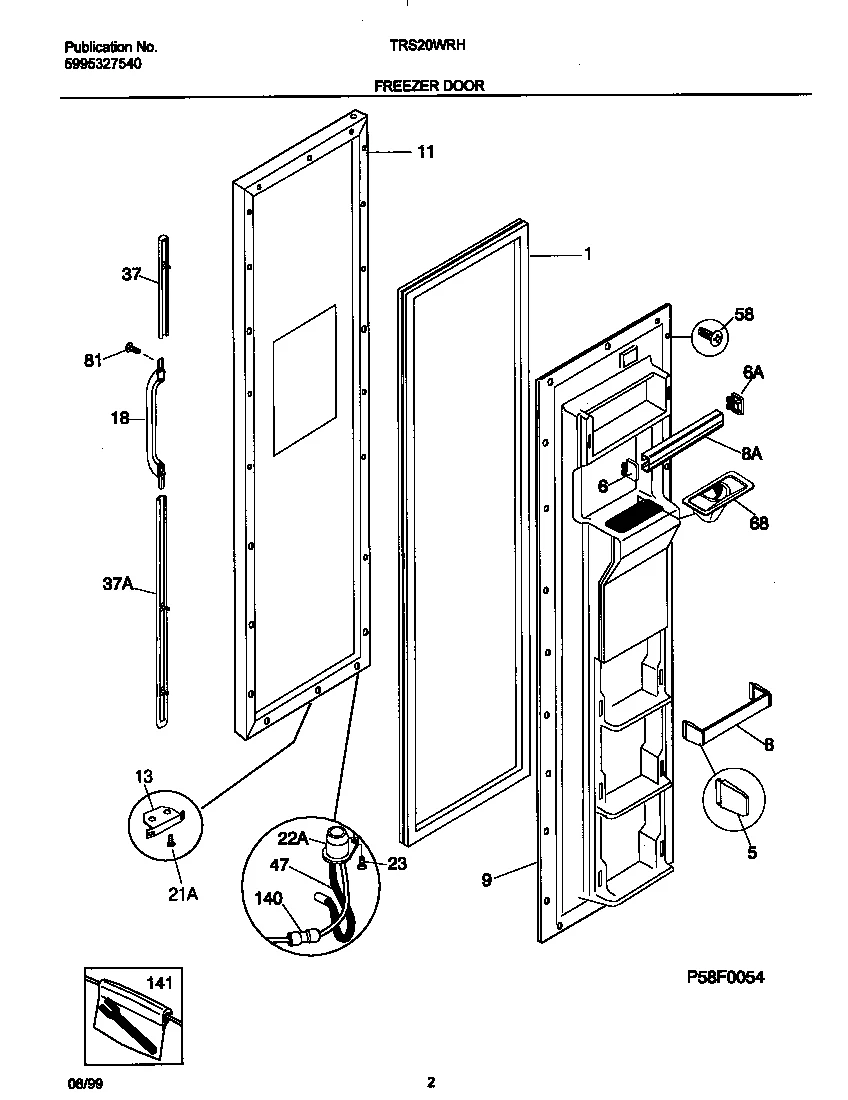

FREEZER DOOR
Parts in FREEZER DOOR
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303288954replaces 215734311 GASKET-FRZR DOOR, WHITE, MAGNETIC | - |
| 5 |  | 215473602replaces 215473601 SUPPORT-DOOR RACK, RH/LH | $2.57 Part Advantage |
| 6 |  | 3206166replaces 5303324303 SUPPORT-DOOR RACK, LH | $5.72 Part Advantage |
| 6 |  | 3206165replaces 5303324321 SUPPORT-DOOR RACK, RH | $4.42 Part Advantage |
| 8 | – | 215806341 RACK-DOOR | - |
| 8 | | RACK-DOOR | - |
| 9 | – | 218748601 PANEL-INNER DOOR, FRZR | - |
| 11 | – | 5303918137 PANEL-EXT FRZR DOOR,ALMOND ,W/FOAM INSULATN | - |
| 13 | | DOOR STOP, REFR DOOR | - |
| 18 | | 218668402NLA HANDLE-DOOR, ALMOND | Discontinued |
| 21 |  | SCREW-DOOR STOP MTG, PHL TRUSS HD, 10-16 X 3/4, BUMPER M | - |
| 22 | | 215615300NLA BRUSHING-DOOR, BRONZE | Discontinued |
| 23 |  | SCREW-DOOR CLOSER MTG, CR FLAT HEAD, 8-32(D) X 1/2 | - |
| 37 | – | 215867084 TRIM-HANDLE, ALMOND, LOWER, WITH SNAP LOCKS | - |
| 37 |  | LOCK-HANDLE TRIM, SNAP-IN (NOT ILLUSTRATED) | - |
| 37 | | TRIM-HANDLE, ALMOND, UPPER, WITH SNAP LOCK | - |
| 47 | | 218922901NLA WIRING HARNESS,FRZR DOOR | Discontinued |
| 58 |  | 218781101replaces 218781100 SCREW, PAN HEAD, No.8-18 X 5/8 | $9.03 Part Advantage |
| 68 | | CHUTE-ICE | - |
| 81 |  | 5304455650replaces 5308016566 SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PROFILE | $10.31 Parts Dr |
| 140 | | ELBOW-WATER TUBE | - |
| 141 | | 218975801replaces 218929601 TOOL-PUSH CONNECTOR | $18.85 |
| *91000 | | 215598900NLA WASHER-FLAT, .691 X 1 X .05, ZINC, I & W HINGE BRKT (NON-ILLUSTRATED) | Discontinued |
| *91001 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
