Model
Tappan TRS22WRAW0
Refrigerator, Side-By-Side, W/Dispenser
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRS22WRAW0Refrigerator, Side-By-Side, W/Dispenser
9 diagrams354 parts
Parts Sections (9)
Diagram

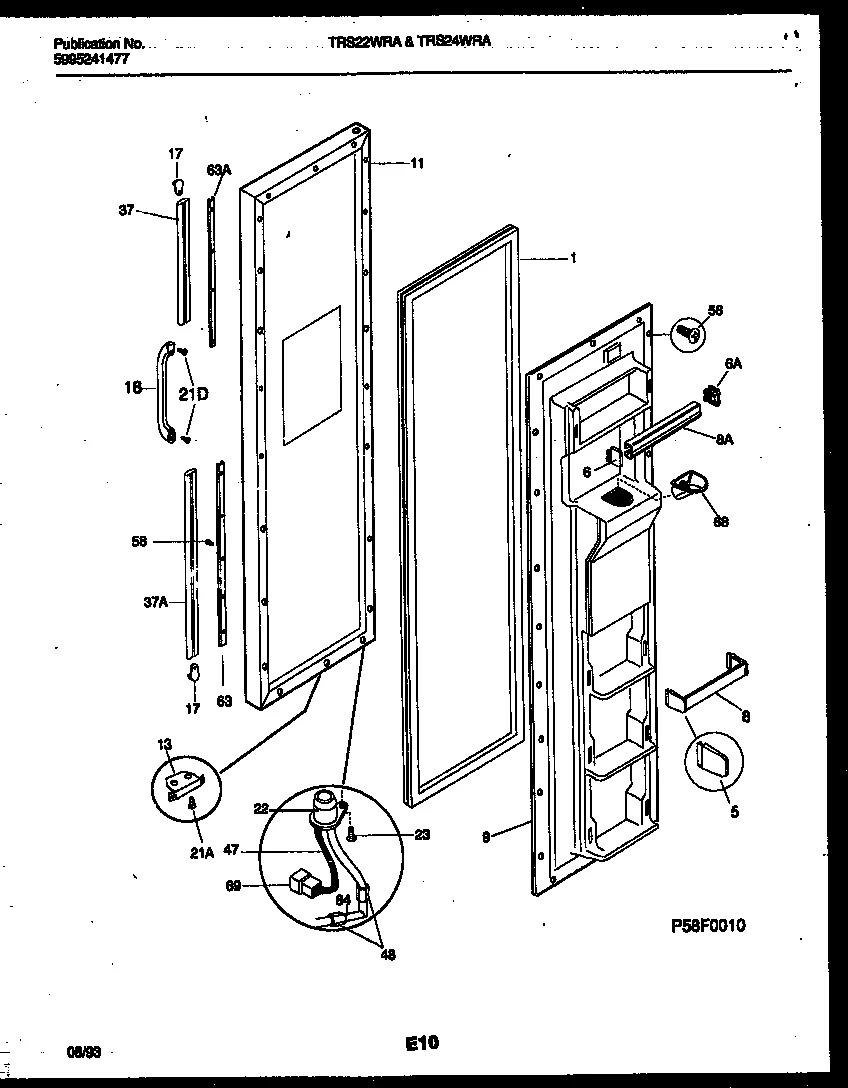

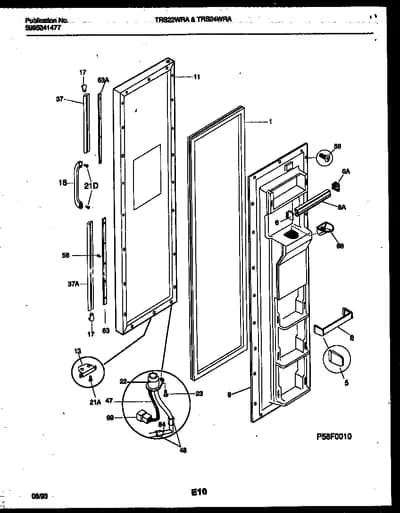

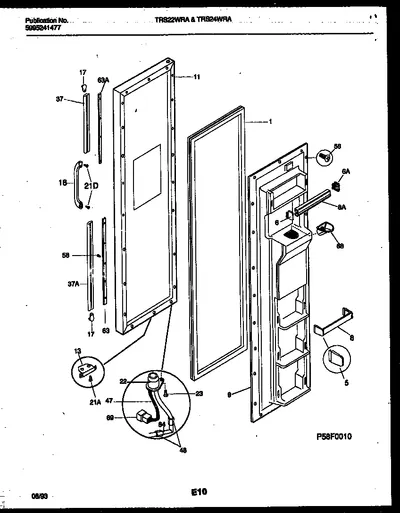

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, WHITE, MAGNETIC | - |
| 5 |  | SUPPPORT, DOOR RACK, ``2, LITER``, RH/LH | $2.21 Part Advantage |
| 6 |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH | $5.72 Part Advantage |
| 6A |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH | $4.42 Part Advantage |
| 8 |  | 215366002replaces 215366080 RACK-DOOR, (3) | $30.97 Part Advantage |
| 8A |  | RACK-DOOR | Discontinued |
| 9 | – | 215201501 PANEL-INNER DOOR, FRZR | - |
| 11 | – | 215491101 PANEL-FRZR DOOR, WHITE, W/FOAM INSULATN | - |
| 13 |  | DOOR STOP, REFR DOOR | - |
| 17 | | 218025301replaces 215100001 HANDLE END, WHITE | - |
| 18 | | HANDLE-DOOR, WHITE | - |
| 21A | | 215218600NLA SCREW-DOOR STOP MTG, FLAT HEAD TORX, 10-16 X 3/4 | Discontinued |
| 21D | – | 215659600 SCREW-HANDLE MTG,HEX HEAD ,10-32 X 0.500 | - |
| 22 | | 215615300NLA BRUSHING-DOOR, BRONZE | Discontinued |
| 23 |  | SCREW-DOOR CLOSER MTG, CR FLAT HEAD, 8-32(D) X 1/2 | - |
| 37 | | 215117414replaces 215117408 TRIM-HANDLE, 15.88``, WHITE, UPPER | - |
| 37A | | 215117414replaces 215117410 TRIM-HANDLE, 31.46``, WHITE, LOWER | - |
| 47 | – | 215294000 HARNESS-WIRING,FRZR DOOR | - |
| 48 |  | 218731600replaces 5308000200 NUT-INLET/WTR VALVE, 7/16 X 20, NYLON | $43.95 ApplianceParts Pro |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| 63 | – | 215117206 RAIL-HANDLE TRIM MTG, LOWER (NON-ILLUSTRATED) | - |
| 63A | – | 215117208 RAIL-HANDLE TRIM MTG, UPPER (NON-ILLUSTRATED) | - |
| 68 | | 218667900replaces 5303297851 CHUTE-ICE | - |
| 69 | | CONNECTOR-DOOR HARNESS | - |
| 84 | | ELBOW-WATER TUBE | - |
| *88308 | – | 215361200 FOAM STRIP, HANDLE MTG HOLE | - |
| *88308 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
| *88308 | | 215598900NLA WASHER-FLAT, .691 X 1 X .05, ZINC, I & W HINGE BRKT (NON-ILLUSTRATED) | Discontinued |
