Model
Tappan TRT15DRAW0
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRT15DRAW0Refrigerator, Top Mount
4 diagrams150 parts
Parts Sections (4)
Diagram

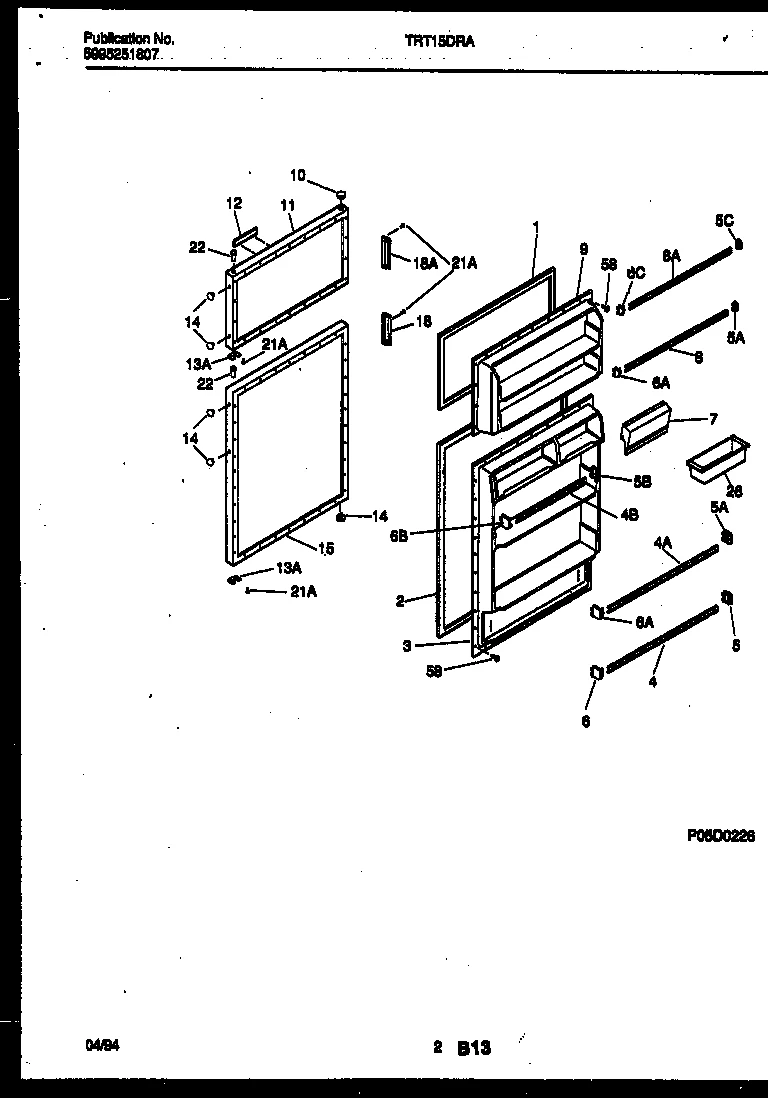

DOOR PARTS
Parts in DOOR PARTS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, ALMOND, MAGNETIC | Discontinued |
| 2 |  | 218730603replaces 5318680311 GASKET-REFR DOOR, MAGNETIC, WHITE | $30.97 Part Advantage |
| 3 | – | 5303284098 PANEL-INNER DOOR, REFR | - |
| 4 |  | 215366002replaces 215366077 RACK-DOOR, 23.17`` X 1.62`` | $30.97 Part Advantage |
| 4A | | 215366002replaces 215366068 RACK-DOOR, 22.95`` X 1.62`` | $30.97 Part Advantage |
| 4B |  | RACK-DOOR, 12.83`` X 1.12`` | Discontinued |
| 5 |  | SUPPORT-DOOR RACK, EXTENDS 1/81``, RH | - |
| 5A |  | 3206161NLA SUPPORT-DOOR RACK,EXTENDS 1.06`` ,RH ,W/MTG HOOKS | Discontinued |
| 5B |  | 5304402658replaces 3206156 SUPPORT-DOOR RACK, EXTENDS .56``, RH | - |
| 5C |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH | $4.42 Part Advantage |
| 6 | | 3206151NLA SUPPORT-DOOR RACK, EXTENDS 1.81``, LH | Discontinued |
| 6A | | 3206162NLA SUPPORT-DOOR RACK,EXTENDS 1.06`` ,LH ,W/MTG HOOKS | Discontinued |
| 6B |  | 5304402659replaces 3206157 SUPPORT-DOOR RACK, EXTENDS .56``, LH | - |
| 6C |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH | $5.72 Part Advantage |
| 7 | – | 5303300053 DOOR-DAIRY | - |
| 8 | | 215366002replaces 215366069 RACK-DOOR, 22.55`` X 1.62`` | $30.97 Part Advantage |
| 8A | | RACK-DOOR, 22.55`` X 1.12`` | Discontinued |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | | PANEL-FRZR DOOR, WHITE, W/INSULATION | - |
| 12 | – | 215754301 NAMEPLATE ASSY, WHITE | - |
| 12A | – | 215220317 LABEL-NAMEPLATE, WHITE, (NON-ILLUSTRATED) | - |
| 12B | – | 215366301 FRAME-NAMEPLATE, WHITE (NON-ILLUSTRATED) | - |
| 12C | | 5315340712NLA TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED, (NON-ILLUSTRED, (NON-ILLUSTRATED) | Discontinued |
| 13A |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | – | 3916558 PANEL-REFR DOOR, WHITE W/INSULATION | - |
| 18 | | 5303273079NLA HANDLE-DOOR-WHITE-REFR | Discontinued |
| 18A | – | 5303273081 HANDLE-DOOR-WHITE-FRZR | - |
| 21A | | SCREW | - |
| 22 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 26 |  | CONTAINER-EGG OPTIONAL ACCESSORY-NOT ORIGINAL EQUIPMENT. | $81.84 PartSelect |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *99110 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
