Model
Tappan TRT15DRCD2
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRT15DRCD2Refrigerator, Top Mount
4 diagrams163 parts
Parts Sections (4)
Diagram

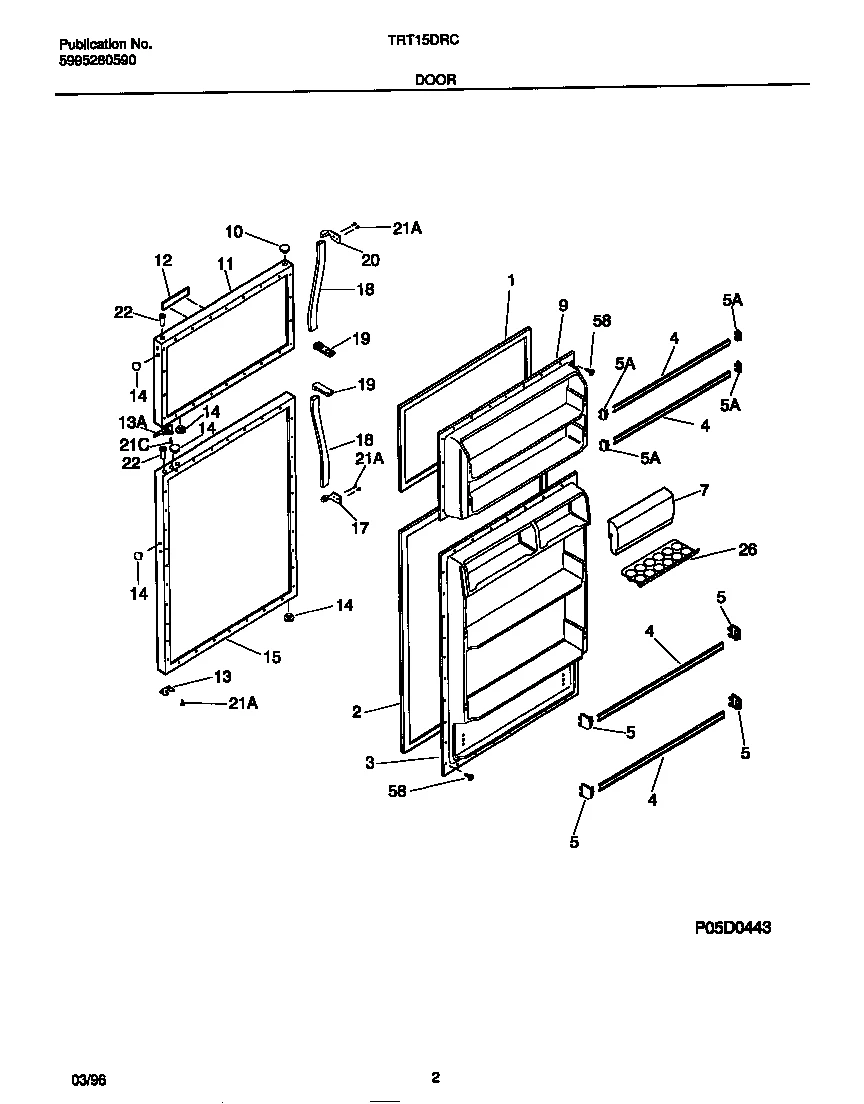

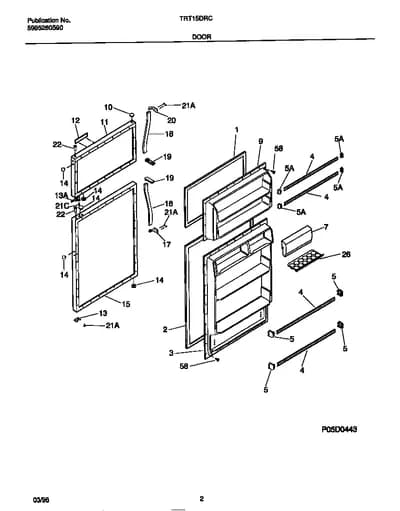

DOOR
Parts in DOOR
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, ALMOND, MAGNETIC | Discontinued |
| 2 |  | 218730603replaces 5303288857 GASKET-REFR DOOR, MAGNETIC, ALMOND | $30.97 Part Advantage |
| 3 |  | 218359001NLA PANEL-INNER DOOR, REFR | Discontinued |
| 4 |  | 215366002replaces 218027057 RACK-DOOR, 22.20`` X 1.62`` | $30.97 Part Advantage |
| 5 |  | 215473602replaces 215473601 SUPPORT-DOOR RACK, RH/LH | $2.57 Part Advantage |
| 5 |  | SUPPPORT, DOOR RACK, ``2, LITER``, RH/LH | $2.21 Part Advantage |
| 7A | – | 218287815 DOOR-DAIRY,10.71`` WIDE | - |
| 7B | – | 5303001380 SCREW | - |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 5303917655 PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE | - |
| 12 | – | 218531502 NAMEPLATE ASSY, ALMOND, W/MOUNTING TAPE | - |
| 12 | – | 215366311 FRAME-NAMEPLATE, ALMOND (NON-ILLUSTRATED) | - |
| 12A | | 5315340712NLA TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED, (NON-ILLUSTRED, (NON-ILLUSTRATED) | Discontinued |
| 12B | | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM / NAMEPLATE, DOUBLE FACED (NON-ILLUSTRATED) | - |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13 |  | DOOR STOP, ALMOND, FRZR SECTION | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 15 | – | 5303917685 PANEL-FRZR DOOR, ALMOND, W/INSULATION | - |
| 17 | | HANDLE END-BOTTOM | - |
| 18 | | 5303211953replaces 5303211209 INSERT-HANDLE GRIP, ALMOND, (NON-ILLUSTRATED) | - |
| 18 | | 5303015111NLA GRIP-HANDLE, (2) | Discontinued |
| 19 | | HANDLE END, (2) | - |
| 20 | | HANDLE END-TOP | $41.73 RepairClinic |
| 21 | | SCREW, NO. 8 OVAL HEAD, 10-32(CA) X 5/8, CROSSED RECESSED | - |
| 21A |  | 218252201replaces 218252200 Screw,#8 truss hd ,10-32CA x 0.500 | $10.30 Parts Dr |
| 21B |  | 131420300replaces 5308007097 SCREW-WATER TANK MTG, CR TRUSS HEAD, 8(A) X 3/4, (3) | $8.78 Parts Dr |
| 22 | | 218519300NLA BEARING-HINGE | Discontinued |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 58 |  | 216858001replaces 5303314236 SCREW, TRUSS/PH HEAD, 8-18AB X 0.500 | $9.94 ApplianceParts Pro |
| *81800 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
