Model
Tappan TRT15DRCZ1
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRT15DRCZ1Refrigerator, Top Mount
4 diagrams158 parts
Parts Sections (4)
Diagram

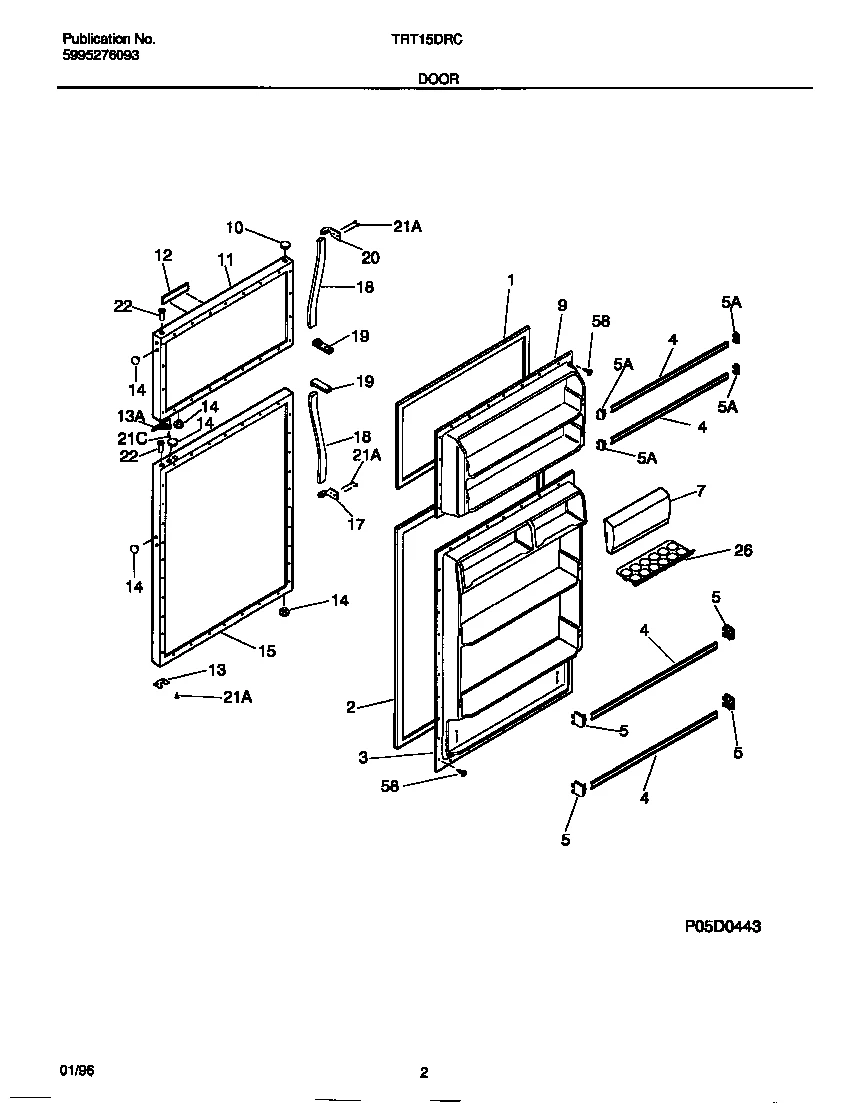

DOOR
Parts in DOOR
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5308007123NLA GASKET-FRZR DOOR, MAGNETIC, WHITE | Discontinued |
| 2 |  | 218730603replaces 5318680311 GASKET-REFR DOOR, MAGNETIC, WHITE | $30.97 Part Advantage |
| 3 |  | 218359001NLA PANEL-INNER DOOR, REFR | Discontinued |
| 4 |  | 215366002replaces 218027057 RACK-DOOR, 22.20`` X 1.62`` | $30.97 Part Advantage |
| 5 |  | 215473602replaces 215473601 SUPPORT-DOOR RACK, RH/LH | $2.57 Part Advantage |
| 5 |  | SUPPPORT, DOOR RACK, ``2, LITER``, RH/LH | $2.21 Part Advantage |
| 7 | – | 218287815 DOOR-DAIRY,10.71`` WIDE | - |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | – | 5303917684 PANEL-FRZR DOOR, WHITE, W/INSULATION | - |
| 12 | – | 218531501 NAMEPLATE ASSY, WHITE, W/MOUNTING TAPE | - |
| 12 | – | 215366301 FRAME-NAMEPLATE, WHITE (NON-ILLUSTRATED) | - |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13 | | 218249001NLA DOOR STOP, WHITE, FRZR SECTION | Discontinued |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | – | 5303917654 PANEL-REFR DOOR, WHITE, W/INSUL & BRACE | - |
| 17 | | HANDLE END-BOTTOM | - |
| 18 | | 5303015111NLA GRIP-HANDLE, (2) | Discontinued |
| 18 | – | 5303301465 INSERT-HANDLE GRIP, WHITE, (NON-ILLUSTRATED) | - |
| 19 | | HANDLE END, (2) | - |
| 20 | | HANDLE END-TOP | $41.73 RepairClinic |
| 21 |  | 218252201replaces 218252200 Screw,#8 truss hd ,10-32CA x 0.500 | $10.30 Parts Dr |
| 21 | | SCREW, NO. 8 OVAL HEAD, 10-32(CA) X 5/8, CROSSED RECESSED | - |
| 22 | | 3206153NLA BEARING-HINGE, REFR | Discontinued |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 58 |  | 216858001replaces 5303314236 SCREW, TRUSS/PH HEAD, 8-18AB X 0.500 | $9.94 ApplianceParts Pro |
| *62920 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
