Model
Tappan TRT15L2JW4
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRT15L2JW4Refrigerator, Top Mount
4 diagrams105 parts
Parts Sections (4)
Diagram

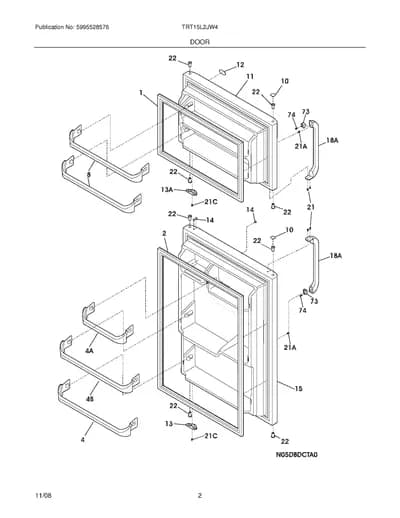

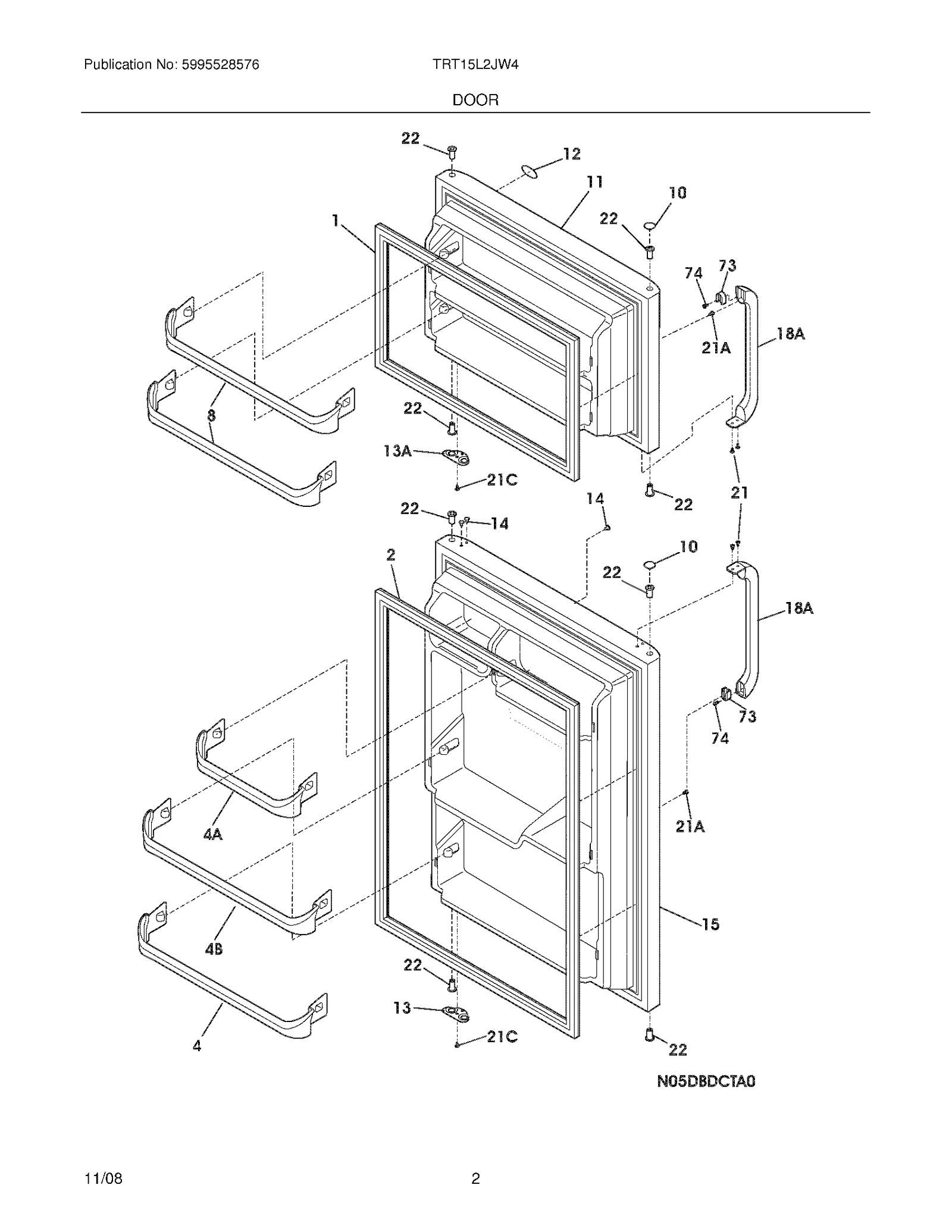

DOOR
Parts in DOOR
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, WHITE, MAGNETIC | $60.50 Parts Dr |
| 2 |  | Gasket-refr door,white ,magnetic | $64.84 Part Advantage |
| 4 |  | Rack-door | $15.92 Part Advantage |
| 4A |  | Rack-door,12.03`` | $22.55 Part Advantage |
| 4B |  | RACK-DOOR | $15.40 Part Advantage |
| 8 |  | Rack-door | $27.87 Part Advantage |
| 10 |  | Plug-button,white ,hinge brg hole ,(2) | $10.24 Part Advantage |
| 11 |  | Door,frzr ,white ,complete assy | - |
| 12 | – | 240418703 Label-nameplate,white | - |
| 13 |  | 240312421replaces 240312403 DOOR STOP, (WHITE), REF | $10.31 Parts Dr |
| 13A |  | 240312414replaces 240312404 Door Stop,white ,frzr | $13.57 Parts Dr |
| 14 |  | Button,plug ,white | $9.83 Part Advantage |
| 15 |  | Door,refr ,white ,complete assy | - |
| 18A |  | HANDLE-DOOR W/BLOCK AND SCREW, WHITE | $12.30 Part Advantage |
| 21 |  | 5304515677replaces 240383406 Screw,truss hd quad ,#10-16 x .500 ,zinc | $4.89 Part Advantage |
| 21A |  | Screw,#10-16 x 1/2 | $8.19 Part Advantage |
| 21C |  | Screw,#8 truss hd ,10-32CA x 0.500 | $10.30 Parts Dr |
| 22 |  | 5304507146replaces 240527101 Bearing-hinge,natural color | $4.09 Part Advantage |
| 73 |  | 218396700replaces 218396701 BLOCK-HANDLE MTG, DOVETAIL | $26.24 Part Advantage |
| 74 |  | Screw,cr pan hd ,10-16 x 0.500 | $4.09 Part Advantage |
