Model
Tappan TRT16NRHD2
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRT16NRHD2Refrigerator, Top Mount
4 diagrams154 parts
Parts Sections (4)
Diagram

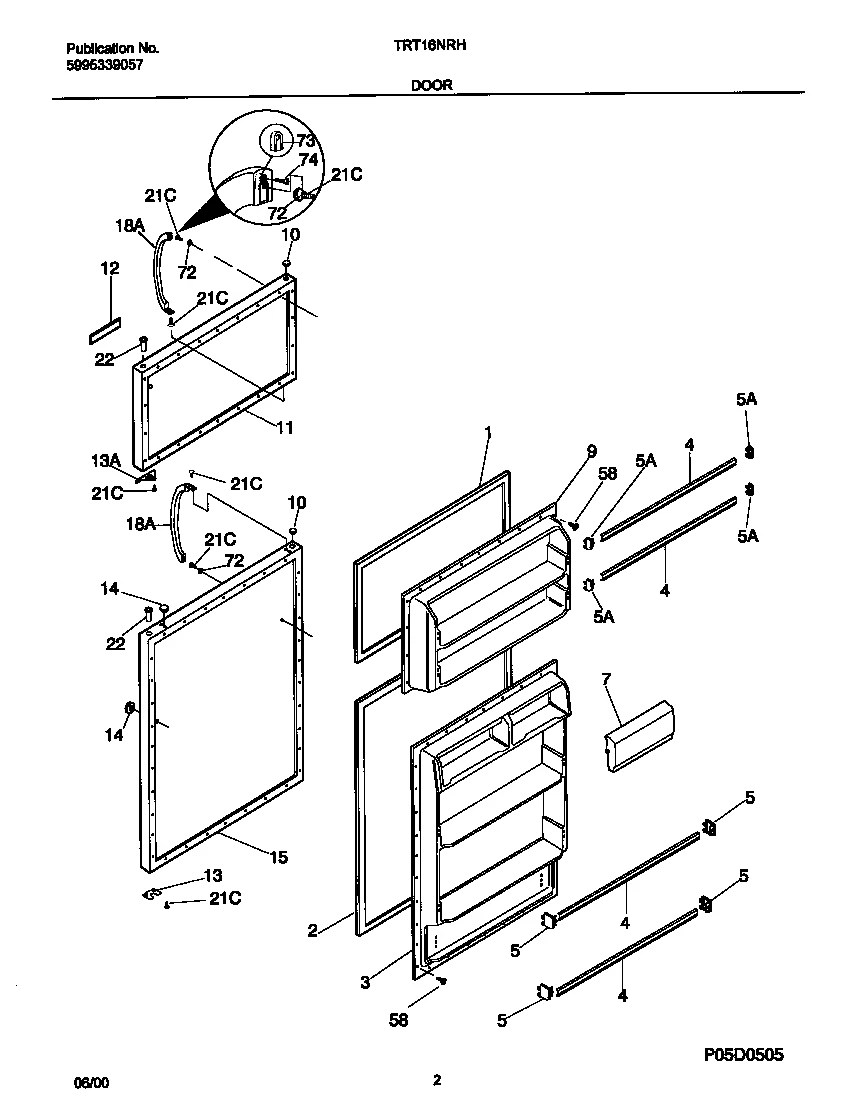

DOOR
Parts in DOOR
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5308007123NLA GASKET-FRZR DOOR, MAGNETIC, WHITE | Discontinued |
| 2 |  | 218730603replaces 5318680311 GASKET-REFR DOOR, MAGNETIC, WHITE | $30.97 Part Advantage |
| 3 |  | 218359001NLA PANEL-INNER DOOR, REFR | Discontinued |
| 4 |  | 215366002replaces 218027017 RACK-DOOR,22.20`` X 1.62`` | $30.97 Part Advantage |
| 5 |  | SUPPPORT, DOOR RACK, ``2, LITER``, RH/LH | $2.21 Part Advantage |
| 5 |  | 215473602replaces 215473601 SUPPORT-DOOR RACK, RH/LH | $2.57 Part Advantage |
| 7 | | 218287817NLA DOOR-DAIRY,10.71`` WIDE ,CLEAR ,NO GRAPHICS | Discontinued |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 5303917804 PANEL-FRZR DOOR, ALMOND, W/INSULATION | - |
| 12 | – | 215220347 LABEL-NAMEPLATE,ALMOND | - |
| 13 | | DOOR STOP,PLATED | - |
| 13 |  | DOOR STOP, ALMOND, FRZR SECTION | - |
| 14 | | 240494004replaces 218915702 PLUG-BUTTON,ALMOND | - |
| 15 | | PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE | - |
| 18 | | HANDLE-DOOR W/BLOCK AND SCREW, ALMOND | Discontinued |
| 21 |  | 218252201replaces 218252200 Screw,#8 truss hd ,10-32CA x 0.500 | $10.30 Parts Dr |
| 22 | | 218519300NLA BEARING-HINGE | Discontinued |
| 58 |  | 218781101replaces 218781100 SCREW, PAN HEAD, No.8-18 X 5/8 | $9.03 Part Advantage |
| 72 |  | BUTTON-HANDLE MTG, DOVETAIL | - |
| 73 |  | BLOCK-HANDLE MTG, DOVETAIL | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 SCREW, CR PAN HEAD, 10, 16 X 1/2, SPECIAL/HI, LO | $4.09 Part Advantage |
| *57120 | – | 218428202 FRAME-NAMEPLATE, ALMOND | - |
| *57122 | | MAGNET-NAMEPLATE (NOT ILLUSTRATED) | - |
| *57123 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
