Model
Tappan TRT17NRBW0
Refrigerator, Top Mount
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRT17NRBW0Refrigerator, Top Mount
3 diagrams133 parts

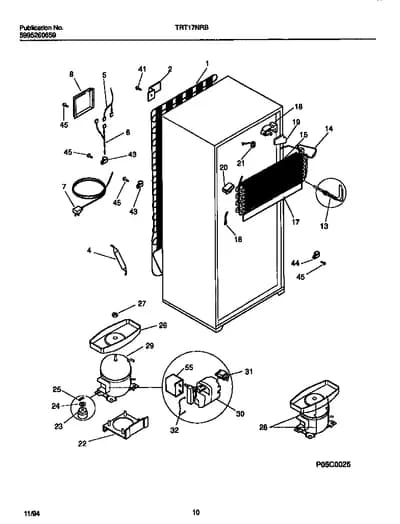

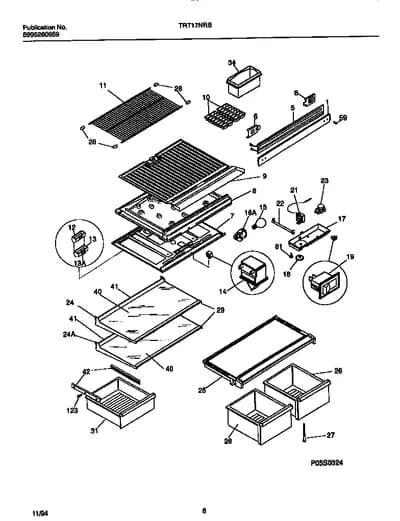

Parts Sections (3)
Diagram

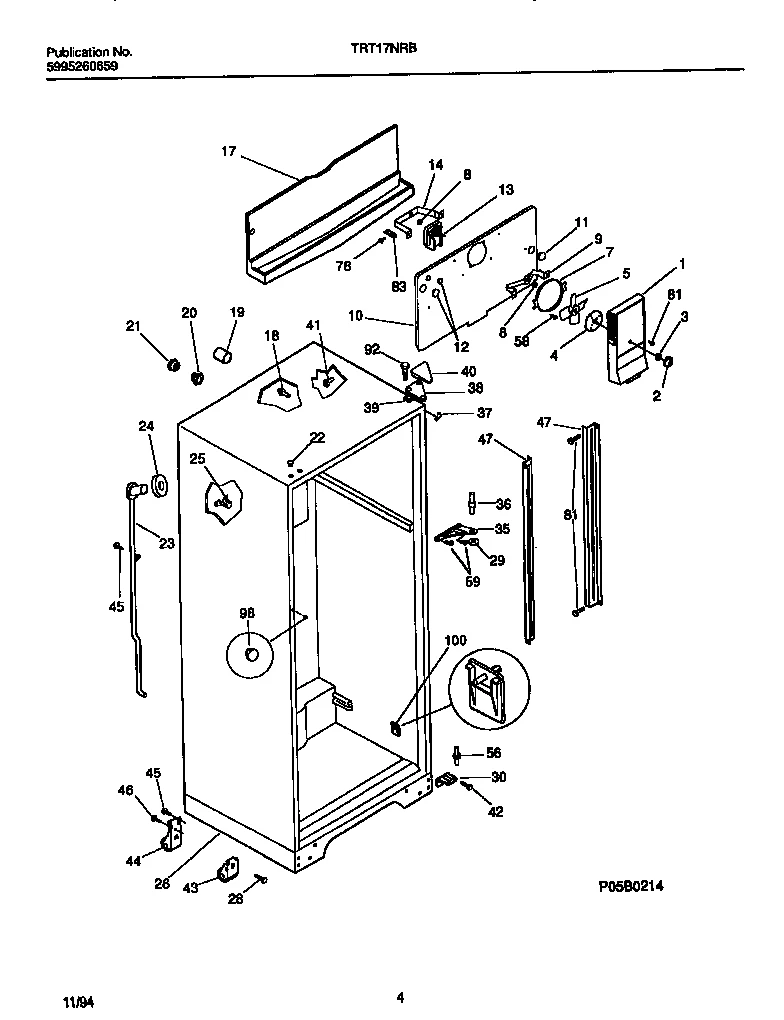

CABINET W/ FAN ASSEMBLY
Parts in CABINET W/ FAN ASSEMBLY
57 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5303299977 COVER FAN | - |
| 2 |  | 5303303944replaces 5303299978 KNOB-DAMPER CONTROL | $50.56 PartSelect |
| 3 |  | PUSH NUT-PIN (2) (NON-ILLUSTRATED) | Discontinued |
| 4 | | DAMPER-FAN COVER | - |
| 5 |  | Fan Blade,red ,evaporator fan | $28.91 Part Advantage |
| 7 | | 5308000124NLA ORIFICE RING-PLASTIC | Discontinued |
| 8 |  | BUSHING - MOTOR MTG, (2) | Discontinued |
| 9 | | 5304414684replaces 5303205118 BRACKET-FRONT (NON-ILLUSTRATED) | - |
| 10 | – | 3001527 COVER-EVAPORATOR COIL (2) | - |
| 10A | – | 5303209636 SCREW, COIL COVER, PHILIP HEAD SPECIAL TRUS, 8-15A X 5/8 (NOT ILLUSTRATED) | - |
| 11 |  | Plug-hole,factory test | $24.61 Part Advantage |
| 12 | | PLUG-HARNESS HOLE, ROUND (DELETED-IF ICE MAKER IS INSTAL | - |
| 12A | | 215079100NLA PLUG-WTR INLET TUBE, ROUND (DELETED-IF ICE MAKER IS INST | Discontinued |
| 13 |  | 5300158289replaces 218322200 MOTOR, EVAPORATOR FAN | $84.95 Part Advantage |
| 14 | | 5303322992replaces 5303205119 BRACKET, MOTOR MOUNTING, REAR | - |
| 17 | – | 08010005 DRAIN TROUGH | - |
| 18 | | SUPPORT, EVAPORATOR COVER (2) | - |
| 19 | | 218631200replaces 5303001198 TUBE-RUBBER (NON-ILLUSTRATED) | - |
| 20 | | FERRULE-INNER (2) (NON-ILLUSTRATED) | - |
| 21 | | FERRULE-OUTER (2) | - |
| 22 | | PLUG, BUTTON, UPPER HINGE HOLES (WHITE) | - |
| 23 | | 5303210377NLA DRAIN TUBE-DEFROST & SEAL RING ASSY | Discontinued |
| 24 | | 5303207353NLA SEAL RING, DRAIN TUBE, (INCL. IN ITEM 23), (NON-ILLUSTRA | Discontinued |
| 25 | | 5308000056NLA SPOUT-DRAIN TUBE (NON-ILLUSTRATED) | Discontinued |
| 25A | | PIN - PUSH, PLASTIC (NON-ILLUSTRATED) (INCL. IN ITEM 25) | - |
| 26 | – | 5303269889 CABINET BASE | - |
| 28 | | BOLT, ROLLER ADJ. INDT HX HD SEMS, 1/4, 28 X 2, 3/4, (2) | - |
| 29 | | WASHER - TOP HINGE (2) (NON-ILLUSTRATED) | Discontinued |
| 30 | | 5303917744replaces 218220200 BRACKET-LOWER HINGE | - |
| 30A | | TAPPING PLATE-GUSSET-LOWER HINGE-LH (NON-ILLUSTRATED) | - |
| 30B | | TAPPING PLATE-GUSSET-LOWER HINGE-RH (NON-ILLUSTRATED) | - |
| 35 | | 218220101NLA BRACKET, CENTER HINGE, LIGHT GREY | Discontinued |
| 36 |  | PIN-CENTER HINGE | $52.68 ApplianceParts Pro |
| 37 | | TRIM-CABINET CORNER, WHITE (NON-ILLUSTRATED) | Discontinued |
| 38 | | BRACKET-UPPER HINGE | - |
| 38A | | SCREW-HINGE MTG, HEX HEAD, 1/4-20 X 7/8 (NON-ILLUSTRATED) | - |
| 39 | | SHIM (NON-ILLUSTRATED) | $6.47 RepairClinic |
| 40 | | COVER-TOP HINGE-WHITE (2) | - |
| 41 |  | 5304509705replaces 5303001609 GROMMET - SHELF MOUNTING - RH (4) (NON-ILLUSTRATED) | $5.41 Part Advantage |
| 41A |  | 5304500407replaces 5308009759 GROMMET, SHELF MOUNTING, LEFT HAND (NOT ILLUSTRATED) | $9.40 Parts Dr |
| 42 |  | 241710601replaces 5303001320 SCREW, HINGE/GUSSET, HX WSHR HD MACH, 1/4, 20 X 5/8, (6) | $7.79 Part Advantage |
| 43 | | 218703001replaces 5303212490 ROLLER ASSEMBLY, FRONT (2) | $48.23 ApplianceParts Pro |
| 44 | – | 5308009773 ROLLER ASSEMBLY, REAR (2) | - |
| 45 |  | 5304455651replaces 5303001343 SCREW, HEX WASHER HEAD, 8-15A X 0.500 | $7.77 Part Advantage |
| 46 | | BOLT-ROLLER MOUNTING, HEX WASHER HEAD MACH, 1/4-28 X 1/2 | - |
| 47 | – | 215789000 CHANNEL, SHELF MOUNTING, SIDE (2) | - |
| 56 |  | PIN-LOWER HINGE | Discontinued |
| 58 | | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| 59 |  | 240442708replaces 218188000 SCREW, PAN HEAD, 10-32 X 0.625, HINGE/MULLION, THREAD FORMING | $4.50 Part Advantage |
| 78 | | 5304455651replaces 5303274237 Screw,hex washer head ,8-32CA x 0.500 ,motor bracket | $7.77 Part Advantage |
| 81 |  | 5304455650replaces 5308016566 SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PROFILE | $10.31 Parts Dr |
| 83 | | 5308000107NLA MOTOR-BRACKET CONNECTOR (NON-ILLUSTRATED) | Discontinued |
| 92 | | 241710601replaces 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875 | $7.79 Part Advantage |
| 98 |  | PLUG, BUTTON, CENTER HINGE HOLE (WHITE) | - |
| 100 |  | 5303288973NLA SUPPORT-CRISPER CVR, (4) | Discontinued |
| *37361 |  | 5308016571NLA PLUG-BUTTON, CABINET LINER (NON-ILLUSTRATED) | Discontinued |
| *37363 |  | 5303321319replaces 5303305324 TOUCH UP PAINT, WHITE (NON-ILLUSTRATED) | $8.35 Part Advantage |
