Model
Tappan TRT19PNBW1
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRT19PNBW1Refrigerator, Top Mount
4 diagrams172 parts
Parts Sections (4)
Diagram

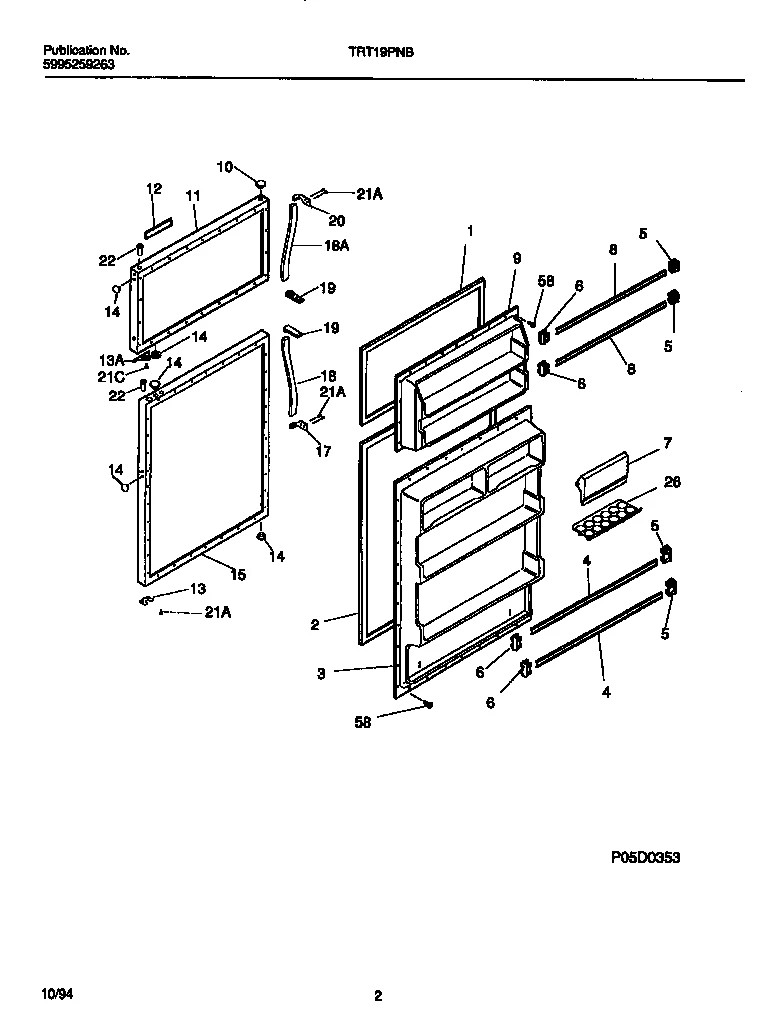

DOOR SECTION
Parts in DOOR SECTION
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR,WHITE,MAGNETIC | Discontinued |
| 2 |  | 218730609replaces 215732413 GASKET-REFR DOOR, WHITE, MAGNETIC | - |
| 3 | – | 5303206569 INNER PANEL-REFRIGERATOR | - |
| 4 | – | 5303281387 RACK-DOOR, 25.25`` X 1.58`` | - |
| 5 |  | SUPPORT-DOOR RACK, RH, (3) | $27.17 RepairClinic |
| 6 |  | SUPPORT-DOOR RACK, LH, (3) | $24.36 RepairClinic |
| 7 | | 5303304564replaces 5303303599 DOOR DAIRY | - |
| 8 | – | 5303288345 RACK-DOOR, 25.06`` X 1.58`` | - |
| 9 | – | 5303206550 PANEL-INNER DOOR, REFR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | – | 3916268 PANEL-FRZR DOOR, WHITE | - |
| 12 | – | 215366301 FRAME-NAMEPLATE, WHITE (NON-ILLUSTRATED) | - |
| 12A | – | 215220317 LABEL-NAMEPLATE, WHITE, (NON-ILLUSTRATED) | - |
| 12B | | 5315340712NLA TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED, (NON-ILLUSTRED, (NON-ILLUSTRATED) | Discontinued |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13A | | 218249001NLA DOOR STOP, WHITE, FRZR SECTION | Discontinued |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | – | 5303916866 PANEL-REFR DOOR, WHITE, W/INSULATION, & CROSS BRACE | - |
| 17 | | HANDLE END-BOTTOM | - |
| 18 | – | 5303301466 INSERT-HANDLE GRIP, BLACK, (NON-ILLUSTRATED) | - |
| 18 | | 5303015111NLA GRIP-HANDLE, (2) | Discontinued |
| 18 | – | 5303301465 INSERT-HANDLE GRIP, WHITE, (NON-ILLUSTRATED) | - |
| 18A | | GRIP-HANDLE (2) | - |
| 18A | – | 5303301464 INSERT-HANDLE GRIP, WHITE (NON-ILLUSTRATED) | - |
| 18A | – | 5303292745 INSERT-HANDLE GRIP, BLACK (NON-ILLUSTRATED) | - |
| 19 | | HANDLE END, (2) | - |
| 20 | | HANDLE END-TOP | $41.73 RepairClinic |
| 21A | | SCREW | - |
| 21C |  | 218252201replaces 218252200 Screw,#8 truss hd ,10-32CA x 0.500 | $10.30 Parts Dr |
| 22 | | 3206153NLA BEARING-HINGE, REFR | Discontinued |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *38360 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
