Model
Tappan TRT21PNBD0
Refrigerator, Top Mount
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRT21PNBD0Refrigerator, Top Mount
5 diagrams171 parts
Parts Sections (5)
Diagram

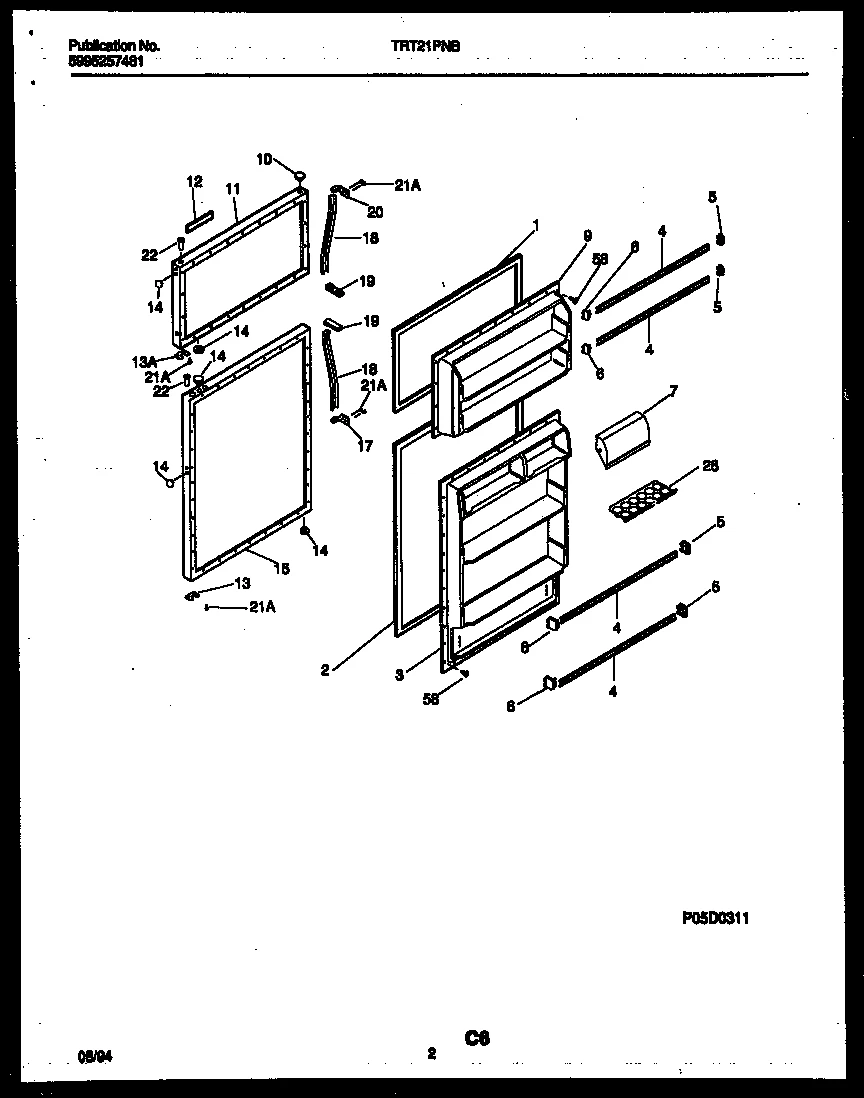

DOOR PARTS
Parts in DOOR PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 215608903 GASKET-FRZR DOOR, ALMOND, MAGNETIC | - |
| 2 |  | 215732403NLA GASKET-REFR DOOR, ALMOND, MAGNETIC | Discontinued |
| 3 | | PANEL-INNER DOOR, REFR | - |
| 4 | | 5303281388NLA RACK-DOOR, REFR SECTION, (2) | Discontinued |
| 5 | | SUPPORT-DOOR RACK, RH, (3) | $27.17 RepairClinic |
| 6 |  | SUPPORT-DOOR RACK, LH, (3) | $24.36 RepairClinic |
| 7 | | 5303304564replaces 5303303599 DOOR DAIRY | - |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 5303916888 PANEL-FRZR DOOR, ALMOND, W/INSULATION | - |
| 12 | – | 215366311 FRAME-NAMEPLATE, ALMOND (NON-ILLUSTRATED) | - |
| 12A | – | 215220318 LABEL-NAMEPLATE, ALMOND (NON-ILLUSTRATED) | - |
| 12C | | 5315340712NLA TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED, (NON-ILLUSTRED, (NON-ILLUSTRATED) | Discontinued |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13A |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 15 | – | 5318964411 PANEL-REFR DOOR, ALMOND, W/INSULATION, & CROSS BRACE | - |
| 17 | | HANDLE END-BOTTOM | - |
| 18 | | 5303015111NLA GRIP-HANDLE, (2) | Discontinued |
| 18A | | 5303211953replaces 5303211209 INSERT-HANDLE GRIP, ALMOND, (NON-ILLUSTRATED) | - |
| 18C | – | 5303301466 INSERT-HANDLE GRIP, BLACK, (NON-ILLUSTRATED) | - |
| 19 | | HANDLE END, (2) | - |
| 20 | | HANDLE END-TOP | $41.73 RepairClinic |
| 21A | | SCREW | - |
| 22 | | 3206153NLA BEARING-HINGE, REFR | Discontinued |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *10665 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
