Model
Tappan TRT22MRHW0
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TRT22MRHW0Refrigerator, Top Mount
4 diagrams184 parts
Parts Sections (4)
Diagram

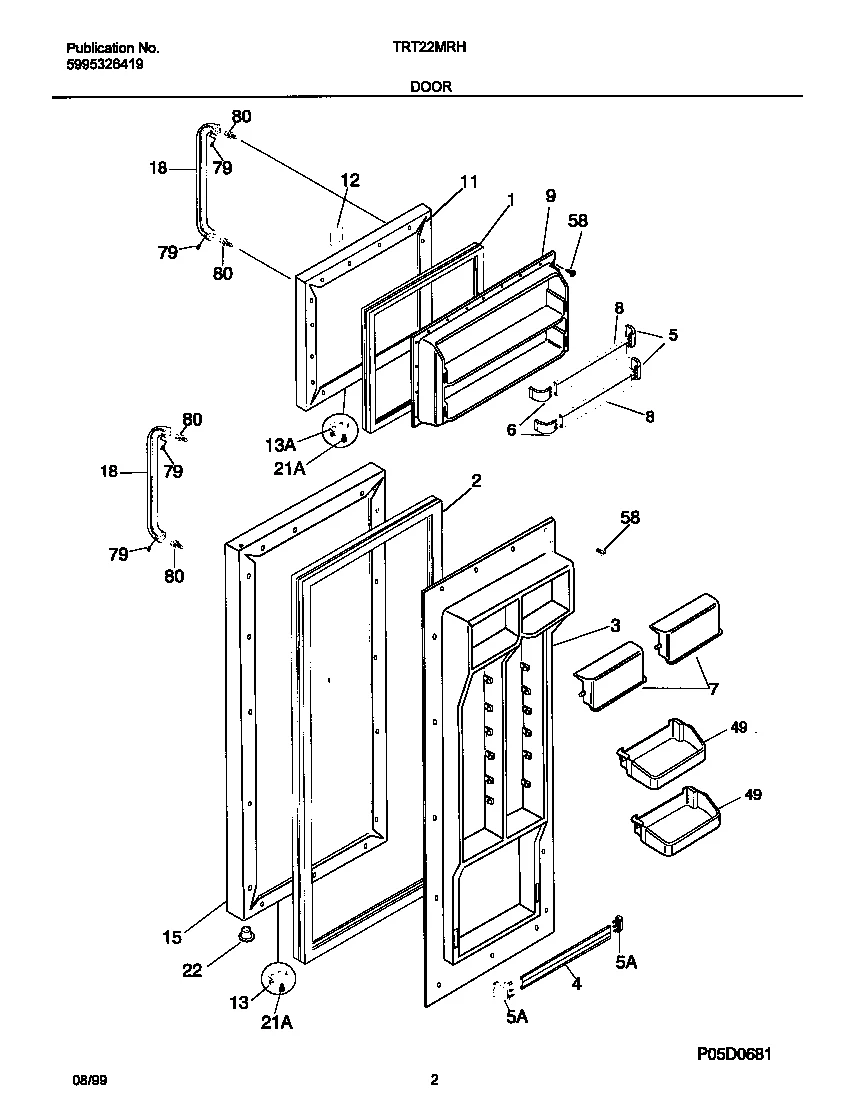

DOORS
Parts in DOORS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 215608915 GASKET-FRZR DOOR, WHITE, MAGNETIC | - |
| 2 |  | 218730614NLA GASKET-REFR DOOR, WHITE, MAGNETIC | Discontinued |
| 3 | | PANEL, INNER DOOR, REFR | - |
| 4 | | RACK-DOOR,(2) | - |
| 5 |  | 218758602replaces 218758601 SUPPORT-DOOR RACK, RH/LH | $13.51 Part Advantage |
| 5 |  | SUPPORT-DOOR RACK, RH | $25.03 Part Advantage |
| 6 |  | SUPPORT-DOOR RACK, LH | $25.01 Part Advantage |
| 7 | | DOOR-DAIRY,12.96`` WIDE ,CLEAR ,NO GRAPHICS | Discontinued |
| 8 | | RACK-DOOR,23.29`` X 2.04`` | - |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 11 | – | 5303918147 PANEL-EXT FRZR DOOR,WHITE ,W/FOAM INSULATN | - |
| 12 | – | 218868706 NAMEPLATE | - |
| 13 | | DOOR STOP, WHITE, FRZR | - |
| 13 | | DOOR STOP, REFR DOOR | - |
| 15 | – | 5303918148 PANEL-EXT REF DOOR,WHITE ,W/FOAM INSULATN | - |
| 18 | | HANDLE-DOOR, STAINLESS STEEL, WITH INSERT, & SET SCREW | - |
| 21 |  | SCREW-DOOR STOP MTG, PHL TRUSS HD, 10-16 X 3/4, BUMPER M | - |
| 22 |  | 5303289320NLA BEARING-HINGE | Discontinued |
| 49 |  | 215441502replaces 218592323 BIN-DOOR,GALLON ,WITH TRIM | $122.16 RepairClinic |
| 58 |  | 218781101replaces 218781100 SCREW, PAN HEAD, No.8-18 X 5/8 | $9.03 Part Advantage |
| 79 |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | 218755504replaces 218755501 Screw-shoulder,No.10 AB ,handle mounting | $7.79 Part Advantage |
| *80920 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
