Model
Vesta VE21AW5
Range/Oven, Electric, Freestanding
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelVesta
VE21AW5Range/Oven, Electric, Freestanding
3 diagrams58 parts
Parts Sections (3)
Diagram

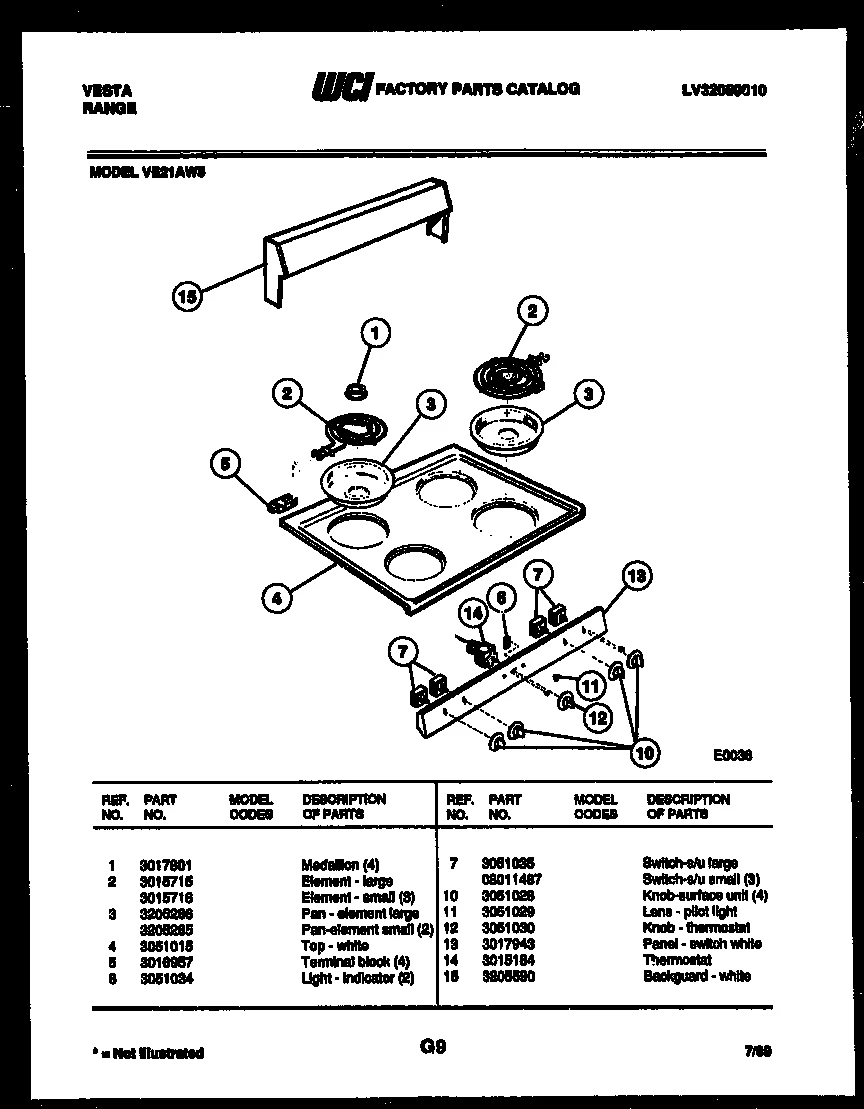

COOKTOP PARTS
Parts in COOKTOP PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303051017replaces 3017801 MEDALLION, 1-1/2`` DIA. STAINLESS STEEL | - |
| 2 |  | 316442300replaces 3015715 SURFACE UNIT-LARGE (2) | $13.04 Part Advantage |
| 2A |  | 318372210replaces 3015716 SURFACE UNIT SMALL (3) | $13.04 Part Advantage |
| 3 |  | 316048413replaces 3205286 PAN-SURFACE UNIT-LARGE (2) | $4.19 Part Advantage |
| 3A |  | 316048414replaces 3205285 PAN-SURFACE UNIT - SMALL (3) | $3.85 Part Advantage |
| 4 | – | 3051015 MAIN TOP-WHITE | - |
| 5 |  | 5303935058replaces 3016957 TERMINAL BLOCK ( 4 ) | $4.24 Part Advantage |
| 6 | – | 3051034 LIGHT-INDICATOR (2) | - |
| 7 |  | 5303935086replaces 3051035 SWITCH-TOP ELEMENT LARGE (1) | $25.83 Part Advantage |
| 7A | | 5303935086replaces 08011487 SWITCH SURFACE UNIT SMALL (3) | $25.83 Part Advantage |
| 10 | – | 3051028 KNOB-SURFACE UNIT (3) | - |
| 11 | | JEWEL-INDICATOR LIGHT LENS (2) | Discontinued |
| 12 | – | 3051030 KNOB-THERMOSTAT | - |
| 13 | – | 3017943 PANEL-SWITCH WHITE | - |
| 14 | – | 3015184 THERMOSTAT | - |
| 15 | – | 3205590 PNL-BACKGUARD (WHITE) | - |
