Model
Vesta VE30BW4
Range/Oven, Electric, Freestanding
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelVesta
VE30BW4Range/Oven, Electric, Freestanding
5 diagrams70 parts
Parts Sections (5)
Diagram

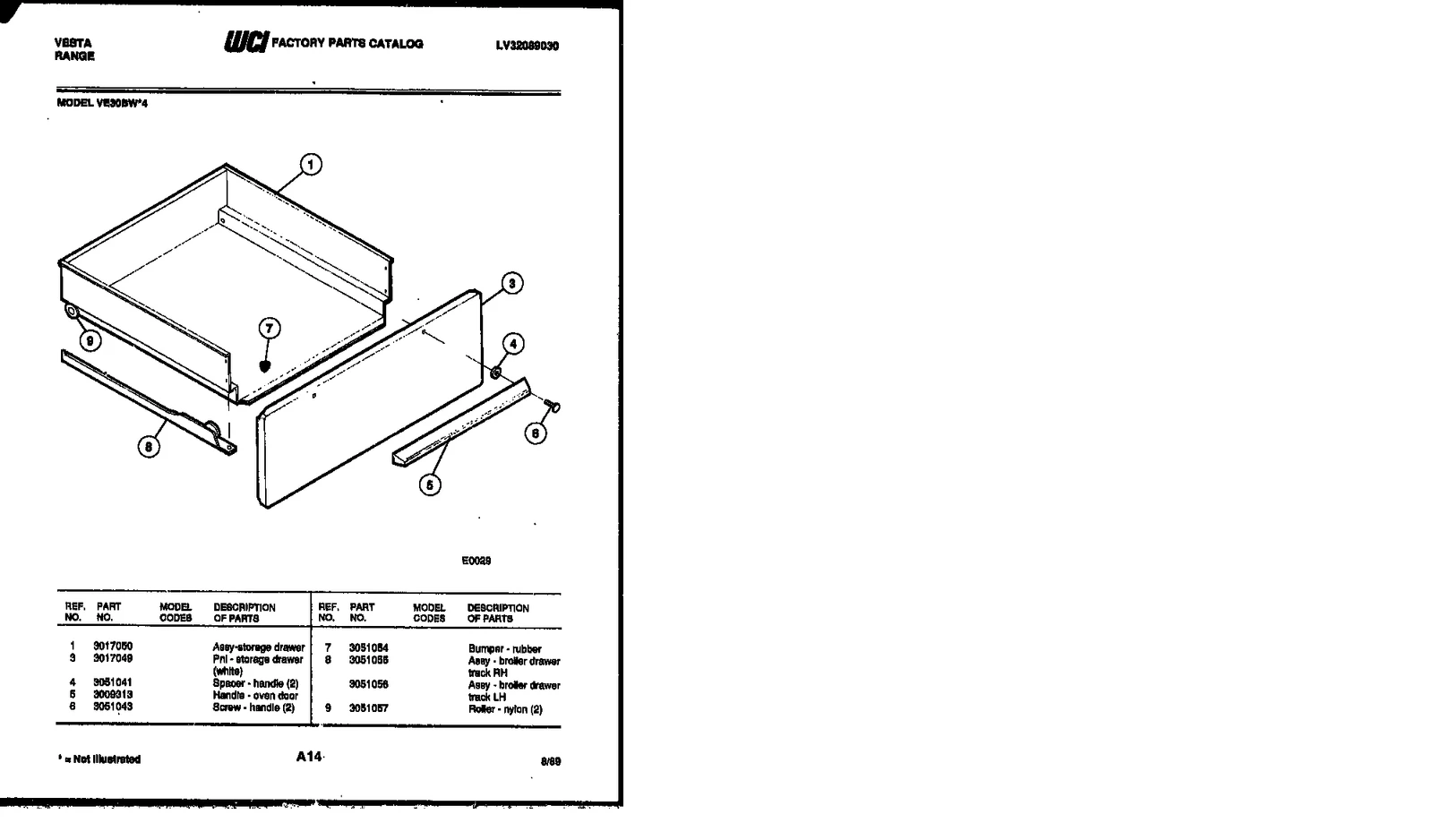

DRAWER PARTS
Parts in DRAWER PARTS
9 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3017050 ASSY-STORAGE DRAWER | - |
| 3 | – | 3017049 PNL - STORAGE DRAWER (WHITE) | - |
| 4 | – | 3051041 BRKT. INSTALLATION | - |
| 5 |  | 318360001replaces 3009313 HANDLE BROILER DRAWER | $58.28 ApplianceParts Pro |
| 6 |  | BOLT-HANDLE MTG (2) (10-24 X 5/8``) | Discontinued |
| 7 | – | 3051054 SHIELD BURNER BOX (LEFT) | - |
| 8 | | 5303051056replaces 3051056 TRACK-BROILER DRAWER (LEFT SIDE) | - |
| 8 | | 5303051055replaces 3051055 TRACK-BROILER DRAWER (RIGHT SIDE) | $28.18 RepairClinic |
| 9 | | 5303935079replaces 3051057 ROLLER - NYLON (2) | - |
