Model
Vesta VE30CW4
Range/Oven, Electric, Freestanding
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelVesta
VE30CW4Range/Oven, Electric, Freestanding
5 diagrams78 parts
Parts Sections (5)

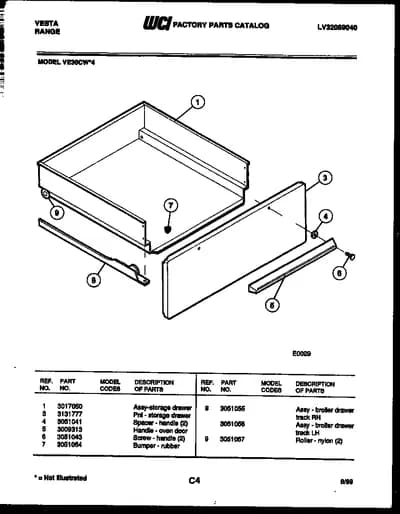

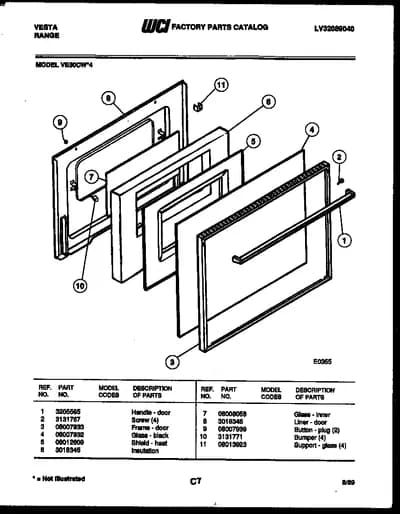

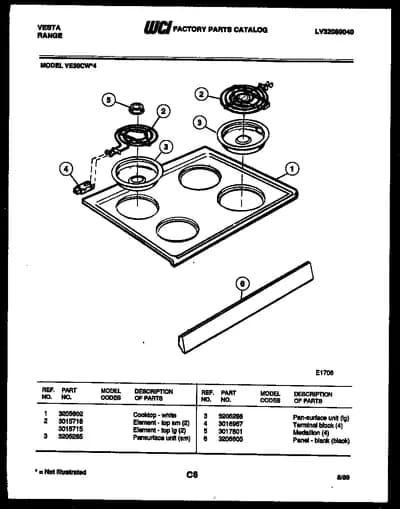

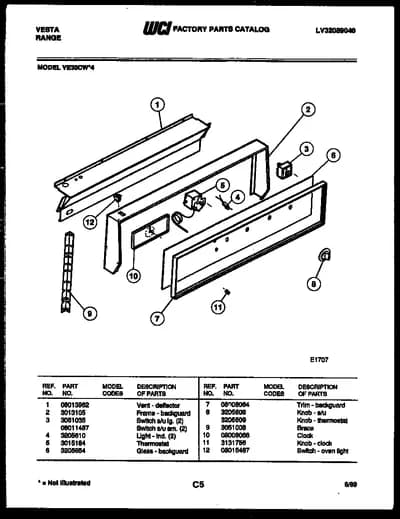

Diagram

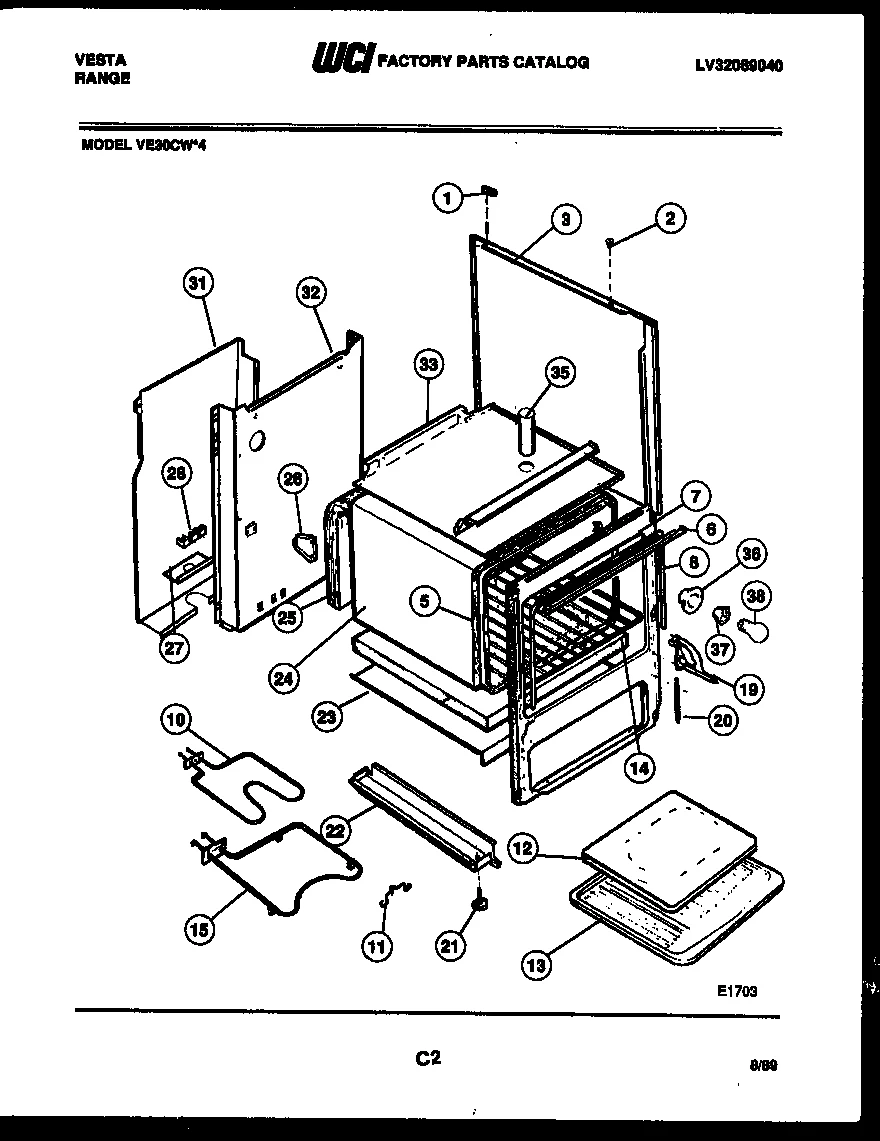

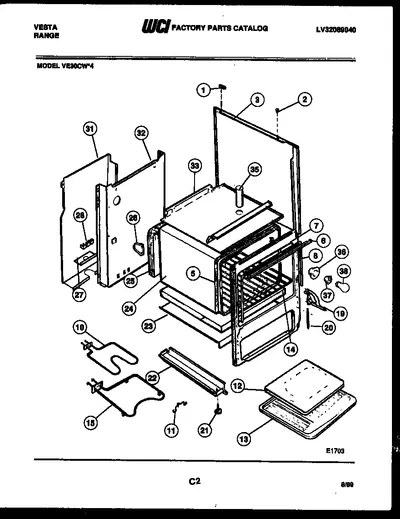

BODY PARTS
Parts in BODY PARTS
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3205587 MAIN TOP GROMMET (2 REQ`D) | - |
| 2 | – | 08068054 GROMMET-FRONT (2) | - |
| 3 | – | 3051061 PANEL BODYSIDE LH & RH WHITE | - |
| 5 | – | 3016533 LINER RIGHT SIDE BRONZE | - |
| 5A |  | 5304491461replaces 3017599 OVEN-LINER SIDE LH | - |
| 5B | – | 3017789 LINER-OVEN TOP | - |
| 5C | – | 3205655 LINER - BACK | - |
| 5D | – | 3017787 LINER-OVEN BOTTOM | - |
| 6 | – | 3131811 SUPPORT-CONTROL PANEL | - |
| 7 | | FRONT FRAME-BRONZE | - |
| 8 | – | 3009427 SEAL-OVEN DOOR | - |
| 10 | | 5303009293replaces 3009293 ELEMENT-BROIL | - |
| 11 | – | 3009445 SUPPORT-BROIL ELEMENT | - |
| 12 | – | 3017712 INSERT - BROILER PAN (BRONZE) | - |
| 13 |  | 316655004replaces 3016973 PAN BROILER BRONZE | $74.09 Parts Dr |
| 14 | | 3015714NLA RACK - OVEN (2) | Discontinued |
| 15 | – | 3017027 ELEMENT-BAKE | - |
| 19 | | HINGE-OVEN DOOR (RT) | Discontinued |

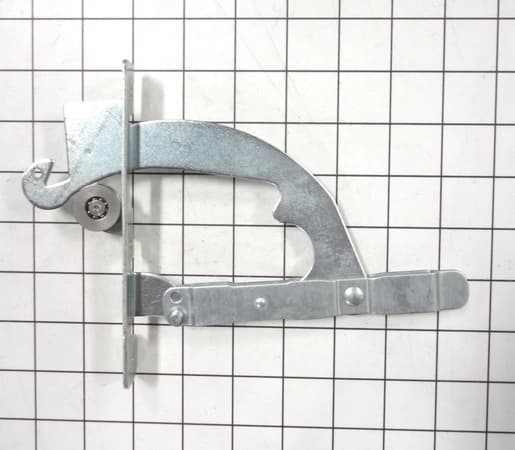

| 19A |  | 318348801replaces 3204672 HINGE-OVEN DOOR (LT) | - |
| 20 | – | 08008028 SPRING-HINGE L & R (2) | - |
| 21 | | 5303051080replaces 3051080 SCREW - LEVELLING (4) | - |
| 22 | – | 08068047 BASE RAIL (NON-ILLUSTRATED) | - |
| 23 | – | 3017031 PAN-INSULATION | - |
| 24 | – | 3017029 INSULATION WRAPPER | - |
| 25 | – | 3017028 INSULATION BACK | - |
| 26 | | SUPPORT-OVEN REAR (2) | - |
| 27 | – | 3203614 SUPPORT-CONDUIT | - |
| 28 |  | 5304409888replaces 3051098 BLOCK TERMINAL MAIN | $14.73 Part Advantage |
| 31 | – | 3205593 COVER-MAIN BACK | - |
| 32 | – | 3205592 MAIN - BACK | - |
| 33 | – | 3017030 BURNER BOX BOTTOM | - |
| 35 | | TUBE OVEN VENT | - |
| 36 |  | HOUSING-OVEN LIGHT, SMALL OVEN (NOT ILLUSTRATED) | - |
| 37 |  | 316116400replaces 3131807 RECEPTACLE-OVEN LIGHT | $36.83 Part Advantage |
| 38 |  | 316538904replaces 3013071 LIGHT BULB 40 WATTS | $9.61 Part Advantage |
| *28641 | – | 3934059 ANTI - TIP BRACKET (NON-ILLUSTRATED) | - |
