Model
Vesta VG30BW2
Range/Oven, Gas, Freestanding
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelVesta
VG30BW2Range/Oven, Gas, Freestanding
5 diagrams90 parts
Parts Sections (5)
Diagram

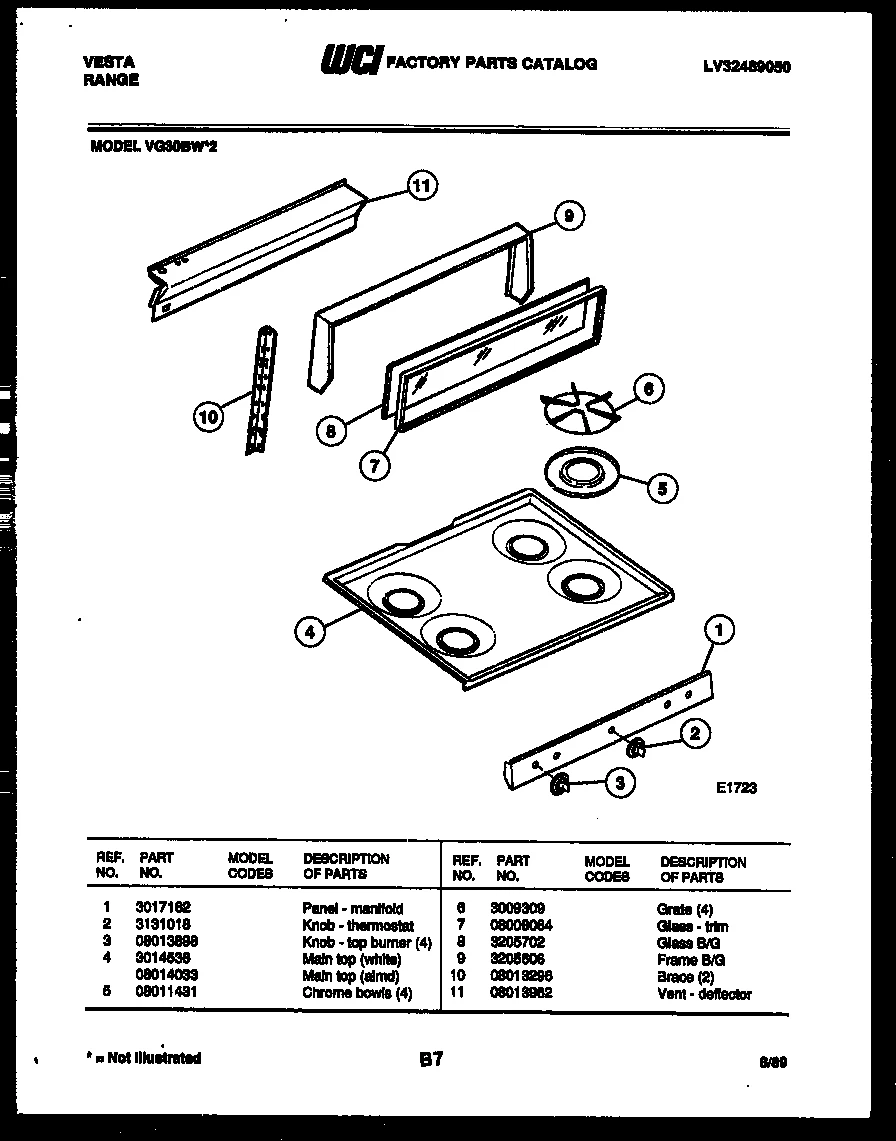

BACKGUARD AND COOKTOP PARTS
Parts in BACKGUARD AND COOKTOP PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3017162 COVER MANIFOLD (BLACK) | - |

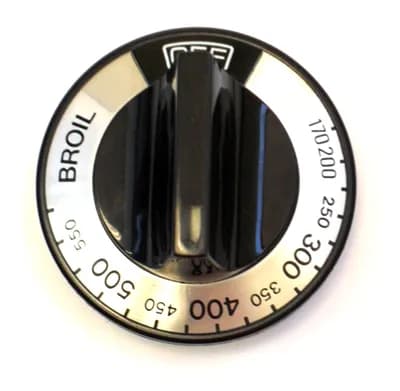

| 2 |  | KNOB-THERMOMETER | Discontinued |
| 3 |  | 08013898NLA KNOB - TOP BURNER (4) | Discontinued |
| 4 | – | 08014033 MAIN TOP (ALMOND) | - |
| 4 | | 5303014536replaces 3014536 MAIN TOP-WHITE (4) | - |
| 5 | – | 08011431 BURNER PANS (CHROME) (2) | - |
| 6 | | GRATE-BURNER (4) | $129.95 ApplianceParts Pro |
| 7 | – | 08008064 TRIM BACKGUARD | - |
| 8 | – | 3205702 GLASS B/G | - |
| 9 | – | 3205606 FRAME - BACKGUARD | - |
| 10 | – | 08013296 BRACE-SUPPORT RH & LH (2) | - |
| 11 | – | 08013962 DEFLECTOR - VENT | - |
