Model
Vesta VG30CW2-23
Range/Oven, Gas, Freestanding
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelVesta
VG30CW2-23Range/Oven, Gas, Freestanding
6 diagrams101 parts
Parts Sections (6)
Diagram

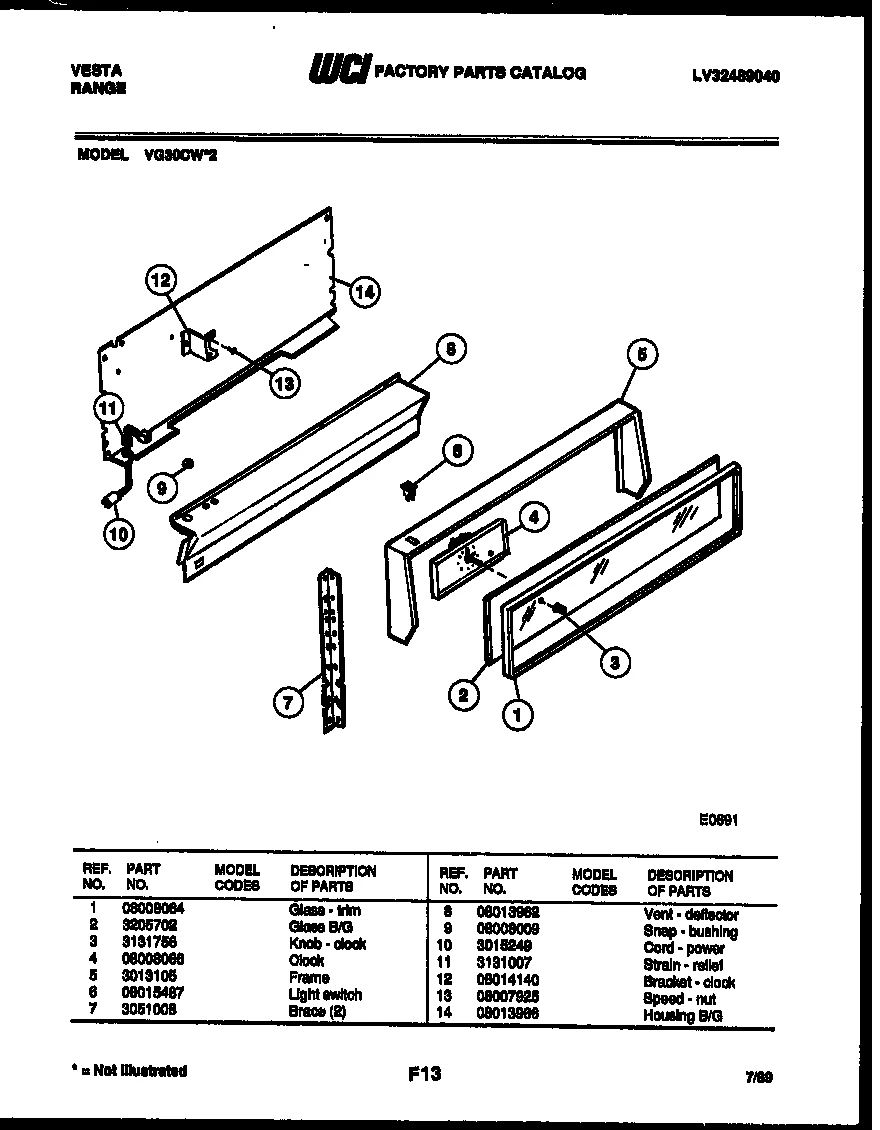

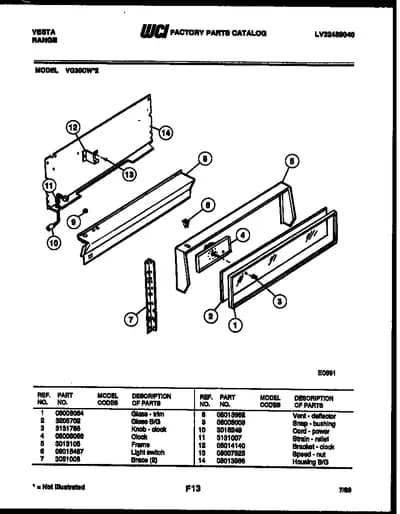

BACKGUARD
Parts in BACKGUARD
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 08008064 TRIM BACKGUARD | - |
| 2 | – | 3205702 GLASS B/G | - |
| 3 |  | 5303935039replaces 3131756 KNOB CLOCK (3) | - |
| 4 | – | 08008066 CLOCK | - |
| 5 | – | 3013105 WRAPPER BACKGUARD | - |
| 6 |  | 5308015487replaces 08015487 SWITCH-OVEN LIGHT (2) | $42.52 ApplianceParts Pro |
| 7 | – | 3051008 BRACE - BACKGUARD (2) | - |
| 8 | – | 08013962 DEFLECTOR - VENT | - |
| 9 | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| 10 | – | 3015249 MAIN-CORD (NON-ILLUSTRATED) | - |
| 11 | – | 3131007 STRAIN RELIEF | - |
| 12 | – | 08014140 BRKT - CLOCK MTG (2) | - |
| 13 | – | 08007925 NUT - SPEED | - |
| 14 | – | 08013966 HOUSING-BACKGUARD | - |
