Model
Vesta VP30AW3
Range/Oven, Gas, Freestanding
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelVesta
VP30AW3Range/Oven, Gas, Freestanding
5 diagrams91 parts
Parts Sections (5)
Diagram

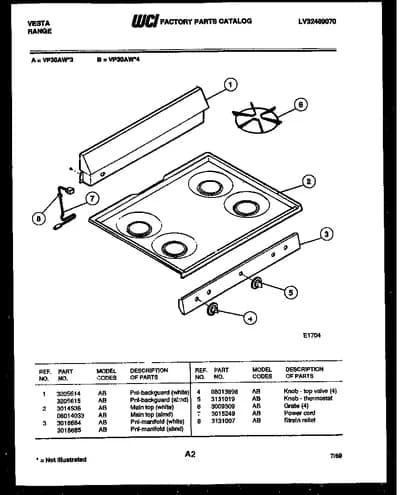

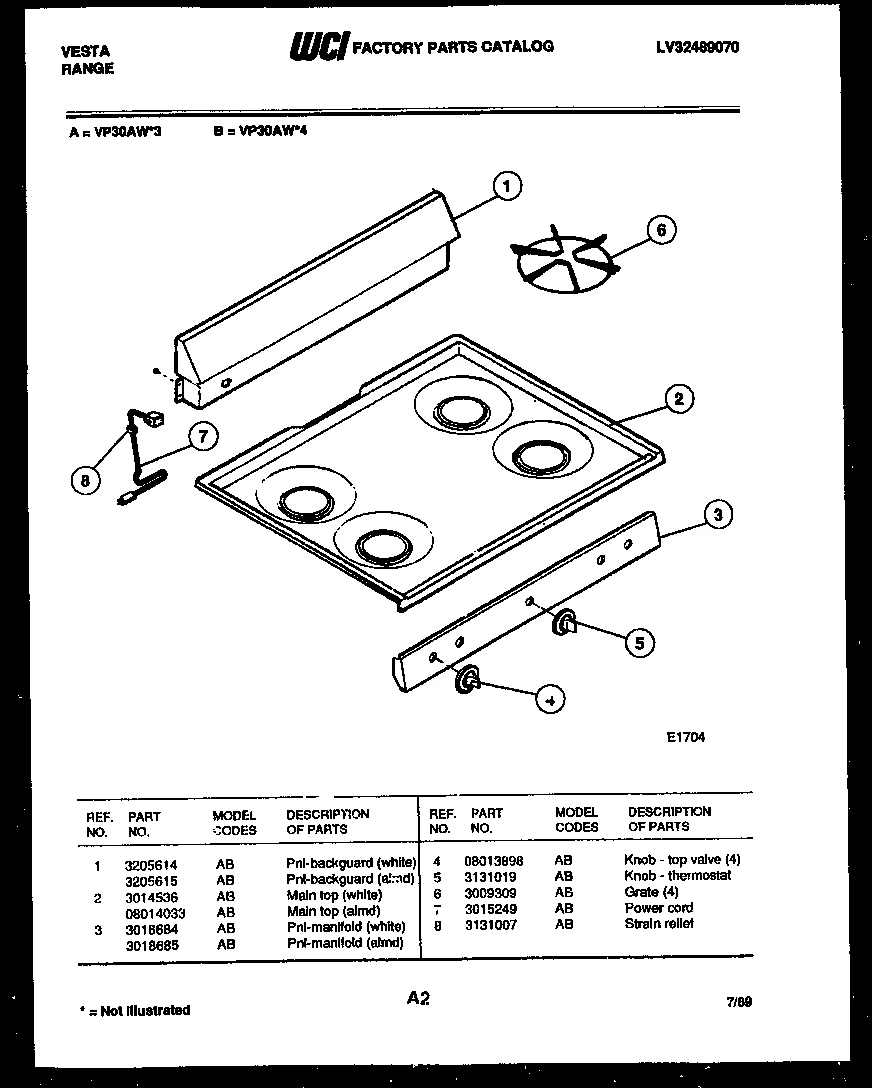

COOKTOP PARTS
Parts in COOKTOP PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3205615 PNL-BACKGUARD (ALMD) | - |
| 1 | – | 3205614 PNL-BACKGUARD (WHITE) | - |
| 2 |  | 5303014536replaces 3014536 MAIN TOP-WHITE (4) | - |
| 2 | – | 08014033 MAIN TOP (ALMOND) | - |
| 3 | – | 3018685 PANEL-MANIFOLD (ALMOND) | - |
| 3 | – | 3018684 PANEL-MANIFOLD (WHITE) | - |
| 4 | | 08013898NLA KNOB - TOP BURNER (4) | Discontinued |
| 5 | | 5303131019replaces 3131019 KNOB - THERMOSTAT | - |
| 6 | | GRATE-BURNER (4) | $129.95 ApplianceParts Pro |
| 7 | – | 3015249 MAIN-CORD (NON-ILLUSTRATED) | - |
| 8 | – | 3131007 STRAIN RELIEF | - |
