Vesta VP36DW2
Range/Oven, Gas, Freestanding
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelVesta
VP36DW2Range/Oven, Gas, Freestanding
6 diagrams121 parts

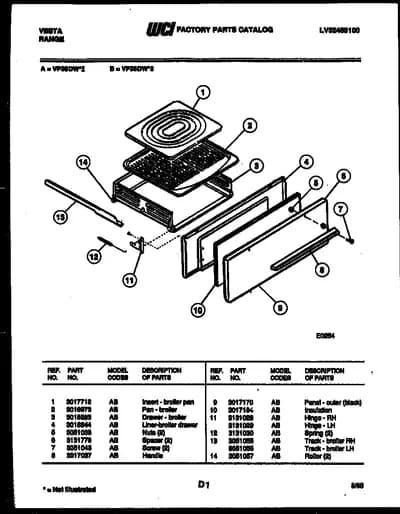

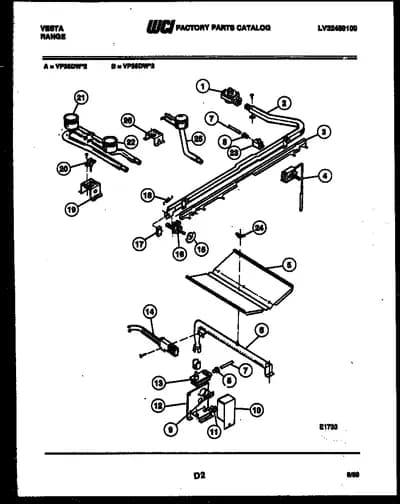

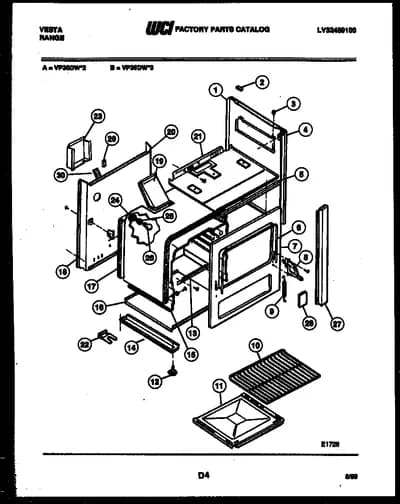

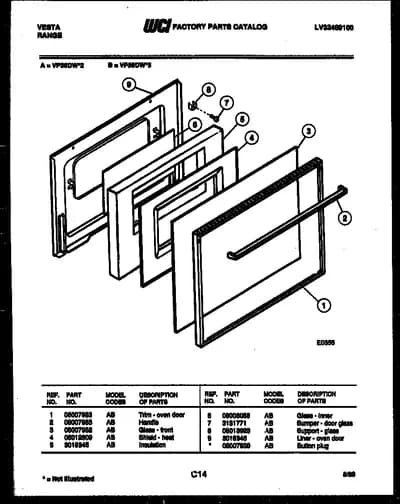

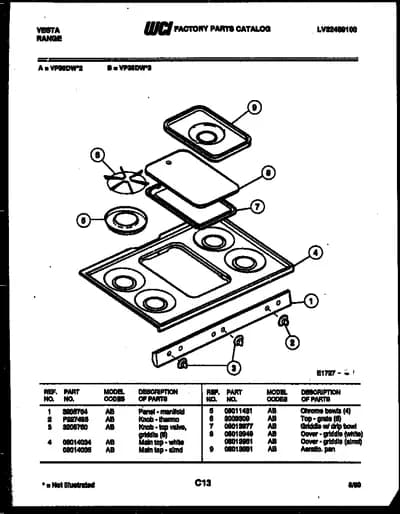

Parts Sections (6)
Diagram

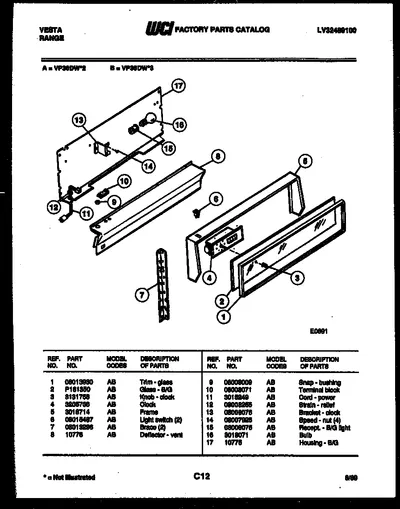

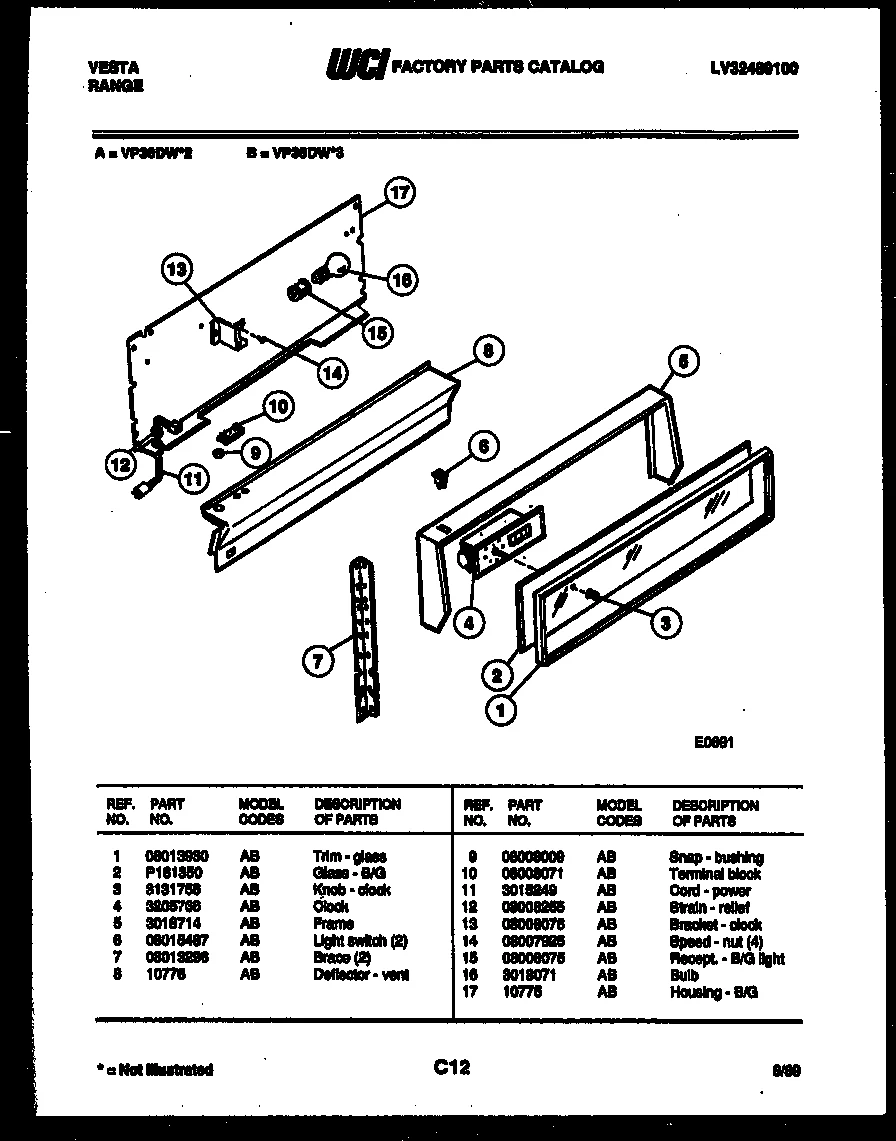

BACKGUARD
Parts in BACKGUARD
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 08013930 TRIM BACKGUARD GLASS | - |
| 2 | – | P161350 GLASS - B/G | - |
| 3 |  | 5303935039replaces 3131756 KNOB CLOCK (3) | - |
| 4 | – | 3205766 CLOCK | - |
| 5 | – | 3018714 FRAME | - |
| 6 |  | 5308015487replaces 08015487 SWITCH-OVEN LIGHT (2) | $42.52 ApplianceParts Pro |
| 7 | – | 08013296 BRACE-SUPPORT RH & LH (2) | - |
| 8 | – | 10776 VENT - DEFLECTOR | - |
| 9 | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| 10 | – | 08008071 TERMINAL BLOCK | - |
| 11 | – | 3015249 MAIN-CORD (NON-ILLUSTRATED) | - |
| 12 | – | 08008255 GROMMET-STRAIN RELIEF | - |
| 13 | – | 08008076 BRACKET CLOCK MTG | - |
| 14 | – | 08007925 NUT - SPEED | - |
| 15 | – | 08008075 RECEPTACLE, B/G LIGHT (2) | - |
| 16 |  | 316538904replaces 3013071 LIGHT BULB 40 WATTS | $9.61 Part Advantage |
| 17 | – | 10775 HOUSING BACKGUARD | - |
