Model
Kenmore 363.50227000
Refrigerator (Kenmore 36350227000)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.50227000Refrigerator (Kenmore 36350227000)
11 diagrams334 parts
Parts Sections (11)

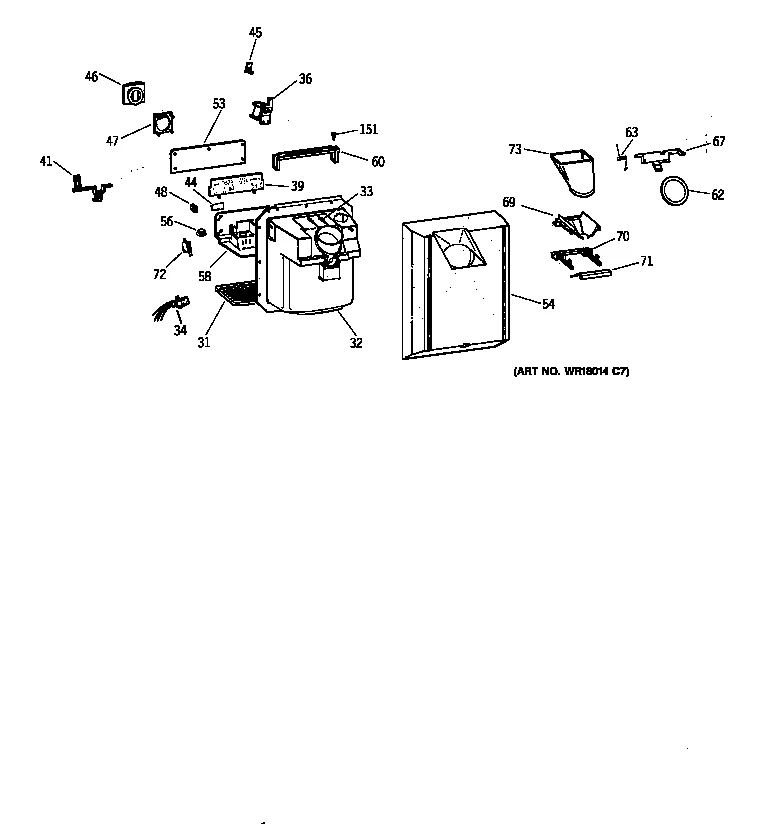

Diagram
DISPENSER
Parts in DISPENSER
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 31 |  | Grill Rec Ad | - |
| 31 | | WR17X4152NLA Grill Rec Bk | Discontinued |
| 31 | | Grill Rec Wh | - |
| 32 | | Recess Disp | - |
| 32 | | WR17X10205NLA Refrigerator Dispenser Housing | Discontinued |
| 32 | | Refrigerator Dispenser Housing | - |
| 33 | | Refrigerator Dispenser Heater | - |
| 34 | – | WR23X457 Harness Light Switch | - |
| 36 |  | WR62X107replaces WR62X78 Refrigerator Solenoid | $73.95 ApplianceParts Pro |
| 39 | | WR55X130NLA Refrigerator Dispenser Control Board | Discontinued |
| 41 | | WR17X3493NLA Refrigerator Dispenser Cradle Actuator | Discontinued |
| 44 | | Selector Stop | - |
| 44 | | WR2X8705NLA Selector Stop | Discontinued |
| 44 | – | WR2X9155 Selector Stop | - |
| 45 |  | Refrigerator Dispenser Mounting Bracket | $6.72 ApplianceParts Pro |
| 46 | | WR2X8702NLA Refrigerator Dispenser Actuator Pad | Discontinued |
| 46 | | WR2X8704NLA Pad Actua | Discontinued |
| 46 | | WR2X8726NLA Pad Act A | Discontinued |
| 47 | | WR2X8681NLA Refrigerator Dispenser Actuator Pad Support | Discontinued |
| 48 | | WR2X8676NLA Refrigerator Selector Knob (Black) | Discontinued |
| 48 | | WR2X8696NLA Refrigerator Selector Knob | Discontinued |
| 48 | | Recovery Knob | - |
| 53 | – | WR17X10115 Refrigerator Nameplate | - |
| 53 | – | WR17X10116 Refrigerator Nameplate | - |
| 53 | | Refrigerator Nameplate | - |
| 54 | | Insul Recess | - |
| 56 | | Refrigerator Lamp Plug | - |
| 58 | | Recessed Display Shield | - |
| 58 | | Recessed Shield | - |
| 58 | | Shd Rec Disp | - |
| 60 | | Refrigerator Dispenser Control Cover | - |
| 62 |  | WR17X11653replaces WR17X3093 Dr Reces Asm | $12.29 Part Advantage |
| 63 | | WR2X8663NLA Refrigerator Spring | Discontinued |
| 67 |  | Refrigerator Dispenser Lever | - |
| 69 | | WR17X3095NLA Refrigerator Dispenser Ice Chute Funnel | Discontinued |
| 70 | | Supt Funn | - |
| 70 | | Supt Funn | - |
| 70 | | WR2X8956NLA Supt Funn | Discontinued |
| 71 | | Refrigerator Dispenser Ice Chute Funnel Deflector | - |
| 72 | | WR23X366NLA Refrigerator Dispenser Switch | Discontinued |
| 73 | | Refrigerator Dispenser Ice Chute | - |
| 151 |  | WR01X10623replaces WR1X1554 Refrigerator Shoulder | $4.39 Parts Dr |
