Model
Kenmore 363.50247000
Refrigerator (Kenmore 36350247000)

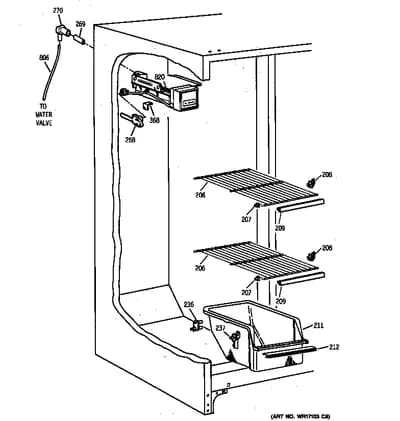

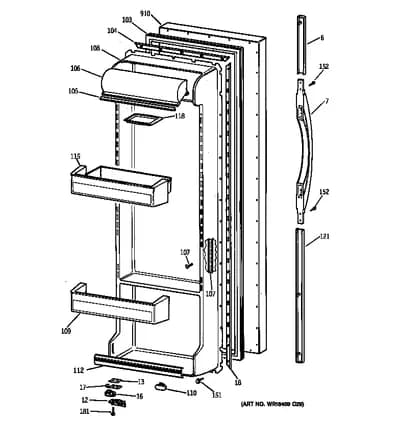

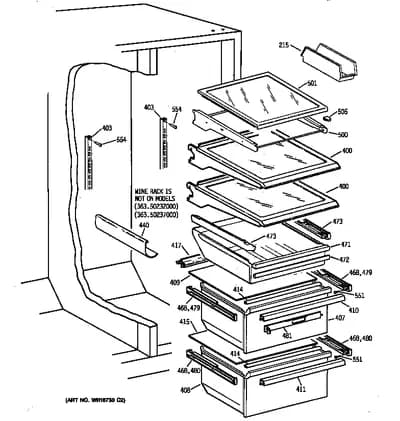

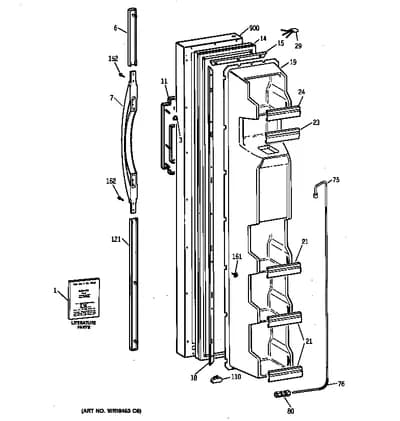

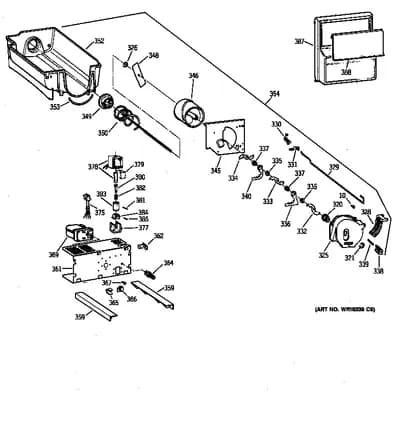

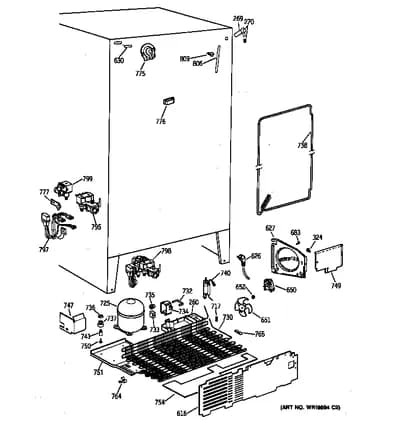

Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.50247000Refrigerator (Kenmore 36350247000)
11 diagrams346 parts
Parts Sections (11)
Diagram

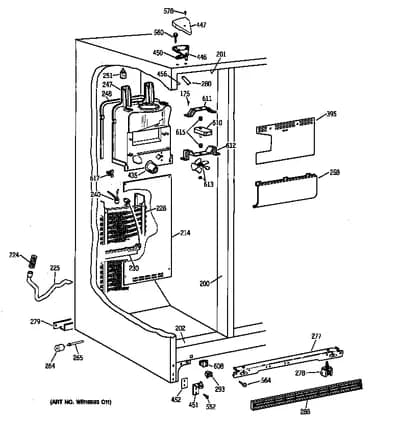

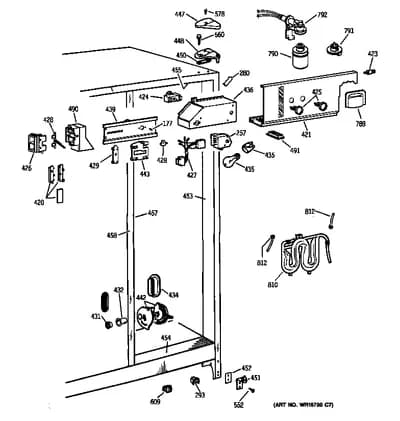

FREEZER SECTION
Parts in FREEZER SECTION
51 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 175 |  | WR01X10652replaces WR1X10035 Scr 8-18 | $6.86 Parts Dr |
| 200 |  | Refrigerator Breaker Strip | - |
| 201 | – | WR40X1742 Refrigerator Breaker Strip | - |
| 202 | – | WR40X1743 Refrigerator Breaker Strip | - |
| 214A | – | WR1X10064 Clip Evaporator | - |
| 214B | – | WR17X3919 Refrigerator Evaporator Cover | - |
| 214C | – | WR14X455 Refrigerator Evaporator Cover Gasket | - |
| 224 | | WR2X8657NLA Refrigerator Grommet | Discontinued |
| 225A | – | WR2X10395 Tube Drai | - |
| 225B | | WR1X5042NLA Refrigerator Clamp | Discontinued |
| 228 |  | WR87X28949replaces WR85X282 Lo-Side Kit | - |
| 230A |  | WR51X10101replaces WR51X10032 Refrigerator Heater Bracket | $48.84 Part Advantage |
| 230B |  | WR51X10031NLA Refrigerator Defrost Heater and Thermostat | Discontinued |
| 240 |  | Refrigerator Defrost Bi-Metal Thermostat | $34.98 Part Advantage |
| 247 | | Refrigerator Orifice Evaporator | - |
| 248 | | Refrigerator Foam Strip | - |
| 251 | | WR2X2880NLA Refrigerator Support | Discontinued |
| 258 | | WR17X3484NLA Refrigerator Freezer Light Cover | Discontinued |
| 264 |  | Refrigerator Roller | $22.67 RepairClinic |
| 265A | | WR2X3595NLA Refrigerator Wheel Axle | Discontinued |
| 265B | – | WR2X4742 Axle Pin | - |
| 277 | – | WR17X3136 Rail Mach Mt | - |
| 278 | | Refrigerator Front Wheel | - |
| 279 | – | WR17X10437 Rail Mach Mt | - |
| 280 | – | WR2X8518 C Cap Oc | - |
| 280 | – | WR2X8519 C Cap Oc | - |
| 288 | | WR74X217NLA Refrigerator Toe Grille | Discontinued |
| 288 | | Refrigerator Base Grille | - |
| 293 | | Refrigerator Toe Grille Clip | - |
| 395 | | Fan Shield | - |
| 435B |  | 40A15replaces STD372402 40a15/22 | $8.96 Parts Dr |
| 435C |  | Technician Refrigerator Light Socket | $7.98 Part Advantage |
| 446 | | Refrigerator Freezer Door Hinge, Upper | - |
| 447 | | Refrigerator Hinge Cover | - |
| 447 | | WR2X8263NLA Refrigerator Hinge Cover | Discontinued |
| 450 | | Refrigerator Shim | - |
| 451 |  | Refrigerator Door Hinge | $34.12 Part Advantage |
| 452 | – | WR2X4497 Refrigerator Hinge Shim | - |
| 456 | – | WR40X1747 Refrigerator Breaker Strip | - |
| 552 |  | WR01X10600replaces WR1X10034 Scr 12-24 | $7.37 ApplianceParts Pro |
| 560 | | WR01X10204replaces WR1X2140 Refrigerator Screw | - |
| 564 | | WE2X186Dreplaces WR1X1194 Screw, 2-pack | - |
| 578 |  | SCR 8-32 MA TR 3/8 SS | - |
| 608 |  | WR23X427replaces WR23X368 Refrigerator Light Switch | $59.60 Parts Dr |
| 610 |  | WR60X10008replaces WR60X10007 Evaporator Motor | $167.07 Parts Dr |
| 611 | – | WR2X10100 Bracket | - |
| 612 | – | WR2X10101 Bracket | - |
| 613A |  | WR60X114replaces WR2X3198 Refrigerator Fan Blade | $14.23 Part Advantage |
| 613B | | Refrigerator Evaporator Fan Blade | - |
| 615 |  | WR02X10098replaces WR2X10098 Grommet | $5.09 Part Advantage |
| 617 |  | Refrigerator Screw | - |
