Model
Kenmore 363.58062891
Refrigerator (Kenmore 36358062891)
Parts Sections (11)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58062891Refrigerator (Kenmore 36358062891)
11 diagrams316 parts
Parts Sections (11)
Diagram

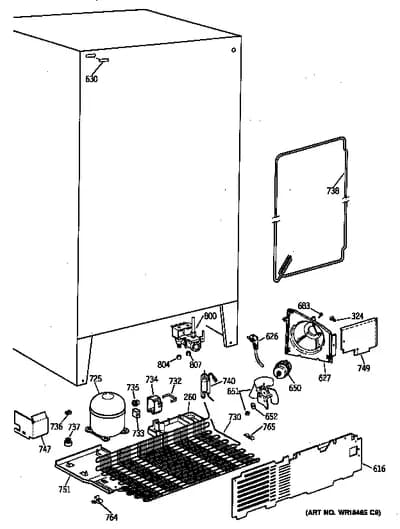

UNIT PARTS

Parts in UNIT PARTS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 260 | WR32X1427NLA Refrigerator Water Dispenser Pan | Discontinued | |
| 324 | WR02X7069NLA Refrigerator Button Plug | Discontinued | |
| 616 | WR82X10040NLA Refrigerator Access Cover | Discontinued | |
| 626A | WR1X5278replaces WR01X5278 Cable Clamp | $8.59 Parts Dr | |
| 626B | WR23X10300replaces WR23X0108 Power Cord | - | |
| 627 | – | WR17X3811 Hous Con Fan | - |
| 630 | WR2X4097replaces WR02X4097 Sealer Plug | $3.30 RepairClinic | |
| 650 | WR60X187replaces WR60X10010 Condenser Motor | $180.99 Part Advantage | |
| 651A | WR01X1515NLA Refrigerator Nut | Discontinued | |
| 651B | – | WR60X0231 Refrigerator Fan Blade | - |
| 652 | WR1X1714replaces WR01X1714 Washer | - | |
| 683 | – | WR01X1825 Refrigerator Screw | - |
| 725 | WR87X20798replaces WR87X10009 Hi Side Asm | $347.73 Part Advantage | |
| 730 | – | WR84X0188 Refrigerator Condenser | - |
| 732 | – | WR02X7226 Cover Clip | - |
| 733 | ![]() | WR07X10099replaces WR07X0277 Refrigerator Protector | $78.89 RepairClinic |
| 734 | – | WR02X7834 Cover Relay | - |
| 735 | WR08X10005NLA Refrigerator Compressor Overload Protector | Discontinued | |
| 736 | WR2X8583replaces WR02X8583 Refrigerator Clip | - | |
| 737 | WR02X22869replaces WR02X10099 Grommet | $5.10 Part Advantage | |
| 738A | WR2X7064replaces WR02X7064 Clip Condenser | - | |
| 738B | – | WR84X0169 Refrigerator Condenser | - |
| 740 | WR86X25269replaces WR86X0096 Dryer Filter | $45.90 Part Advantage | |
| 747 | – | WR17X3643 Refrigerator Baffle | - |
| 749 | – | WR17X3988 Baff Sd Disc | - |
| 751 | ![]() | WR17X10202replaces WR17X10204 Plate Comp M | $43.37 ApplianceParts Pro |
| 764 | WR2X9000replaces WR02X9000 Clip Condenser | - | |
| 765 | WR01X1985NLA Clip Condenser | Discontinued | |
| 800 | WR57X10051replaces WR57X10010 Refrigerator Water Valve | $41.48 Part Advantage | |
| 804 | ![]() | WR57X57replaces WR57X0057 Nut | - |
| 807A | WR02X11330replaces WR02X4048 Nut & Union | $4.50 Part Advantage | |
| 807B | WR02X4046NLA Nut & Union | Discontinued |
