Model
Kenmore 363.58062893
Refrigerator (Kenmore 36358062893)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58062893Refrigerator (Kenmore 36358062893)
11 diagrams311 parts
Parts Sections (11)
Diagram

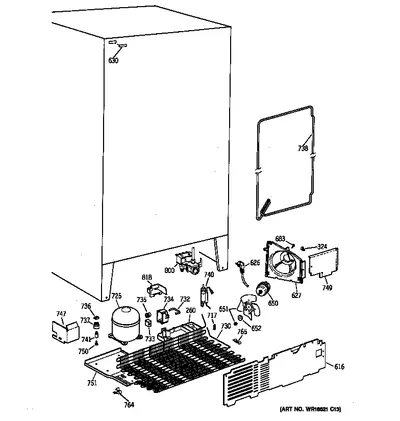

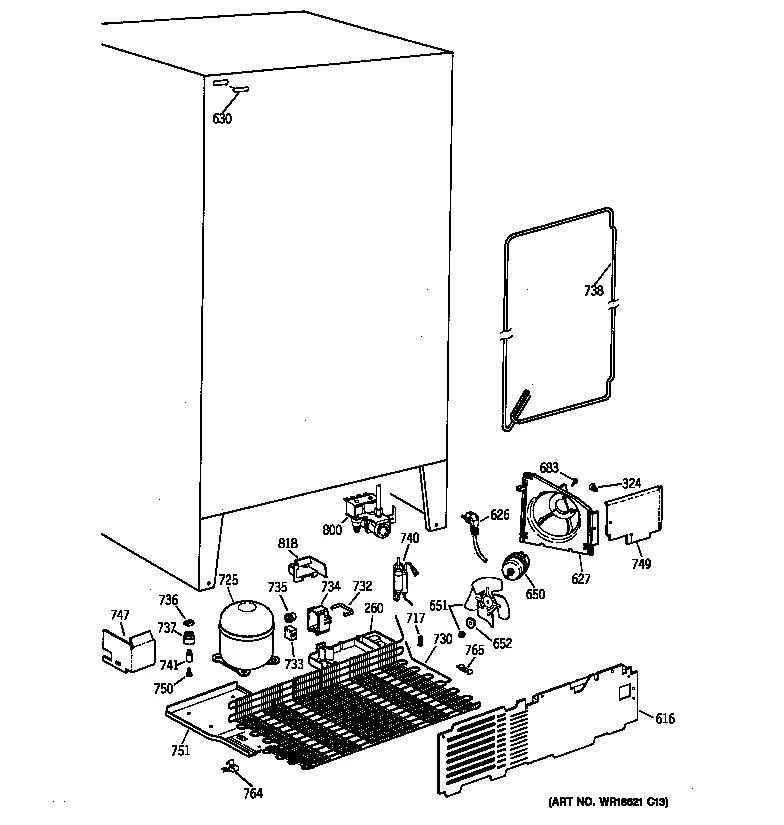

UNIT PARTS
Parts in UNIT PARTS
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 260 |  | WR32X1427NLA Refrigerator Water Dispenser Pan | Discontinued |
| 324 | | Button Plug | - |
| 616 | – | WR82X10043 Refrigerator Access Cover | - |
| 626A |  | Refrigerator Water Tubing Clip | $8.59 Parts Dr |
| 626B |  | WR23X10300replaces WR23X108 Power Cord | - |
| 627 | – | WR17X3811 Hous Con Fan | - |
| 630 |  | Refrigerator Cabinet Sealer Plug | $3.30 RepairClinic |
| 650 |  | WR60X187replaces WR60X10010 Condenser Motor | $180.99 Part Advantage |
| 651A | | Refrigerator Nut | - |
| 651B | – | WR60X10002 Condenser Fan Blade | - |
| 652 | | Refrigerator Fan Motor Washer | - |
| 683 | – | WR1X1825 Refrigerator Fastener | - |
| 717 | – | WR2X10335 Clip Condenser | - |
| 725 |  | WR87X20798replaces WR87X10009 Hi Side Asm | $347.73 Part Advantage |
| 730 | | Refrigerator Condenser Coils Assembly | - |
| 732 | | Cover Clip | - |
| 733 |  | WR07X10099replaces WR7X277 Refrigerator Compressor Start Relay | $78.89 RepairClinic |
| 734 | | Cover Relay | - |
| 735 | – | WR8X10005 Refrigerator Overload | - |
| 736 |  | Refrigerator Compressor Mounting Clip | $3.30 RepairClinic |
| 737 |  | WR02X22869replaces WR2X10099 Refrigerator Grommet | $5.10 Part Advantage |
| 738A |  | Clip Condenser | - |
| 738B | – | WR84X169 Refrigerator Condenser | - |
| 740 |  | WR86X25269replaces WR86X96 Refrigerator Filter Dryer | $45.90 Part Advantage |
| 741 |  | Refrigerator Compressor Mounting Post | - |
| 747 | | Refrigerator Baffle | - |
| 749 | – | WR17X3988 Baff Sd Disc | - |
| 750 |  | Refrigerator Screw | $7.37 ApplianceParts Pro |
| 751 | – | WR17X10337 Plate Comp M | - |
| 764 |  | Technician Clip Condenser | - |
| 765 | | WR1X1972replaces WR1X1985 Clip Condenser | - |
| 800 |  | WR57X10051replaces WR57X10018 Refrigerator Water Valve | $41.48 Part Advantage |
| 818 | | WR02X12259replaces WR2X10181 Guard Spl | - |
