Model
Kenmore 363.58062897
Refrigerator (Kenmore 36358062897)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58062897Refrigerator (Kenmore 36358062897)
11 diagrams318 parts
Parts Sections (11)
Diagram

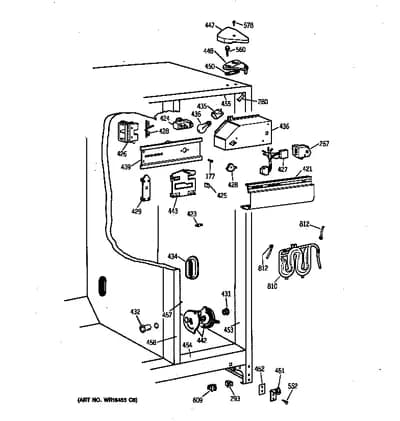

FRESH FOOD SECTION
Parts in FRESH FOOD SECTION
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 177 |  | WZ4X338Dreplaces WR1X5034 Refrigerator Screw, 2-pack | - |
| 257 |  | Refrigerator Defrost Timer | $34.61 Part Advantage |
| 280 | – | WR2X8518 C Cap Oc | - |
| 280 | – | WR2X8519 C Cap Oc | - |
| 293 |  | Refrigerator Toe Grille Clip | - |
| 421 | | Refrigerator Light Shield | - |
| 423 | – | WR2X10050 Grommet S | - |
| 424 | | WR9X499NLA Refrigerator Temperature Control Thermostat | Discontinued |
| 425 | | Refrigerator Knob | - |
| 426A | | Housing Nozzle | - |
| 426B | – | WR2X8425 Foam Nozzle | - |
| 427 | | Refrigerator Wire Harness | - |
| 428A | | Refrigerator Gear Control | - |
| 428B | | Control Double Bracket Damper Washer | - |
| 429 | | Heat Holder | - |
| 431 |  | Refrigerator Mullion Air Duct Cap | $7.37 ApplianceParts Pro |
| 432 | | Duct Mullion | - |
| 434 | | Refrigerator Air Duct | - |
| 435B |  | 40A15replaces STD372402 40a15/22 | $8.96 Parts Dr |
| 435C |  | Technician Refrigerator Light Socket | $7.98 Part Advantage |
| 436 | – | WR2X7736 Refrigerator Bracket | - |
| 439 | | Channel Control | - |
| 442 | | Ctrl Mt Pan | - |
| 443 | | Refrigerator Rack Control | - |
| 447 | | Refrigerator Hinge Cover | - |
| 447 | | WR2X8263NLA Refrigerator Hinge Cover | Discontinued |
| 448 | | Refrigerator Door Top Hinge | - |
| 450 | | Refrigerator Shim | - |
| 451 |  | Refrigerator Door Hinge | $34.12 Part Advantage |
| 452 | – | WR2X4497 Refrigerator Hinge Shim | - |
| 453 | – | WR40X1757 Refrigerator Breaker Strip | - |
| 454 | – | WR40X1758 Refrigerator Breaker Strip | - |
| 455 | – | WR40X1759 Refrigerator Breaker Strip | - |
| 457 | – | WR40X1748 Refrigerator Breaker Strip | - |
| 458 | – | WR2X10334 Clip Mullion | - |
| 458 | | Refrigerator Bracket Mullion | - |
| 458 | – | WR40X1751 Mullion Ad | - |
| 458 | – | WR40X1749 Mullion Wh | - |
| 552 |  | WR01X10600replaces WR1X10034 Scr 12-24 | $7.37 ApplianceParts Pro |
| 560 | | WR01X10204replaces WR1X2140 Refrigerator Screw | - |
| 578 |  | SCR 8-32 MA TR 3/8 SS | - |
| 609 |  | WR23X37285replaces WR23X193 Light Switch | $18.33 Part Advantage |
| 810 | | WR17X10428NLA Water Tank D | Discontinued |
| 812 |  | Refrigerator Reservoir-to-Dispenser Water Tubing | $19.19 Part Advantage |
