Model
Kenmore 363.58067890
Refrigerator (Kenmore 36358067890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58067890Refrigerator (Kenmore 36358067890)
11 diagrams314 parts
Parts Sections (11)
Diagram

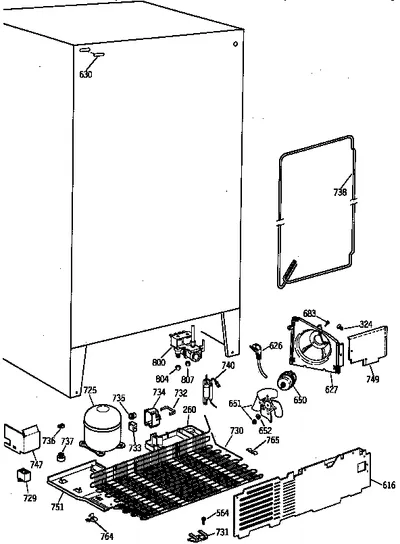

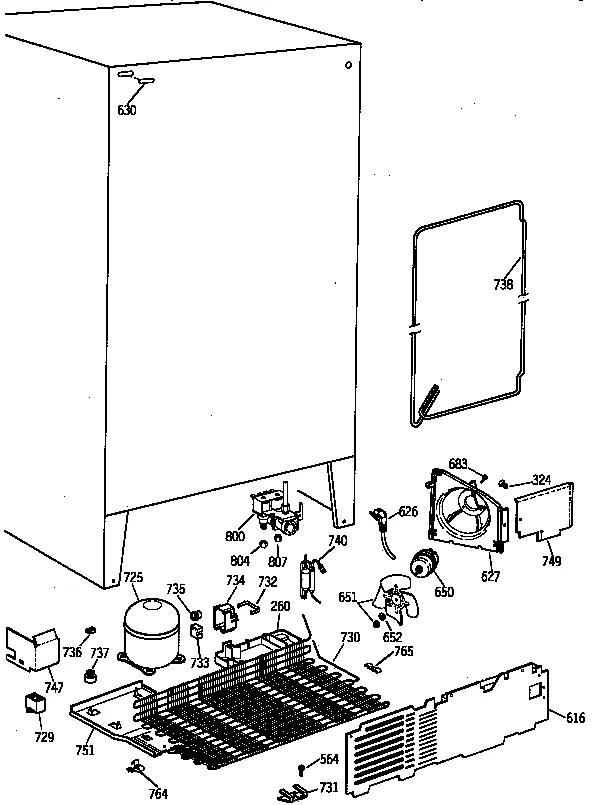

UNIT PARTS
Parts in UNIT PARTS
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 260 |  | WR32X1427NLA Refrigerator Water Dispenser Pan | Discontinued |
| 324 | | WR02X7069NLA Refrigerator Button Plug | Discontinued |
| 564 | | WE2X186Dreplaces WR01X1194 Refrigerator Screw | - |
| 616 | – | WR82X10010 Refrigerator Access Cover Assembly | - |
| 626B |  | WR23X10300replaces WR23X0108 Power Cord | - |
| 627 | – | WR17X3811 Hous Con Fan | - |
| 630 |  | WR2X4097replaces WR02X4097 Sealer Plug | $3.30 RepairClinic |
| 650 |  | WR60X225replaces WR60X0225 Refrigerator Condenser Fan Motor | $262.26 Parts Dr |
| 651A | | WR01X1515NLA Refrigerator Nut | Discontinued |
| 651B | – | WR60X0231 Refrigerator Fan Blade | - |
| 652 | | WR1X1714replaces WR01X1714 Washer | - |
| 683 | – | WR01X1825 Refrigerator Screw | - |
| 725 |  | WR87X20798replaces WR87X0471 Hi Side Asm | $347.73 Part Advantage |
| 729 |  | WR55X24064replaces WR62X0079 Capacitor | $41.35 Part Advantage |
| 730 | – | WR84X0188 Refrigerator Condenser | - |
| 731 | – | WR02X8951 Refrigerator Support | - |
| 732 | – | WR02X7226 Cover Clip | - |
| 733 |  | WR07X10055replaces WR07X0240 Refrigerator Relay Protector | $17.21 Part Advantage |
| 734 | – | WR02X7834 Cover Relay | - |
| 735 | | WR8X170replaces WR08X0170 Refrigerator Overload | - |
| 736 |  | WR2X8583replaces WR02X8583 Refrigerator Clip | - |
| 737 |  | WR2X7238replaces WR02X7238 Mounting Grommet | - |
| 738A |  | WR2X7064replaces WR02X7064 Clip Condenser | - |
| 738B | – | WR84X0169 Refrigerator Condenser | - |
| 740 |  | WR86X25269replaces WR86X0096 Dryer Filter | $45.90 Part Advantage |
| 749 | – | WR17X3988 Baff Sd Disc | - |
| 751 | – | WR17X3645 Complete Plate | - |
| 764 |  | WR2X9000replaces WR02X9000 Clip Condenser | - |
| 765 | | WR01X1985NLA Clip Condenser | Discontinued |
| 800 |  | WR57X10051replaces WR57X0119 Refrigerator Water Valve | $41.48 Part Advantage |
| 804 |  | WR57X57replaces WR57X0057 Nut | - |
| 807A | | WR02X4046NLA Nut & Union | Discontinued |
| 807B |  | WR02X11330replaces WR02X4048 Nut & Union | $4.50 Part Advantage |
