Model
Kenmore 363.58075896
Refrigerator (Kenmore 36358075896)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58075896Refrigerator (Kenmore 36358075896)
11 diagrams377 parts
Parts Sections (11)
Diagram

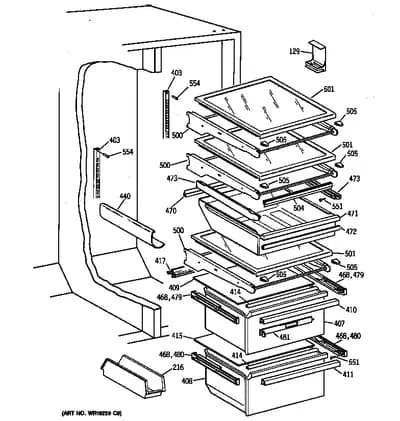

FRESH FOOD SECTION
Parts in FRESH FOOD SECTION
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 129 | – | WR2X10108 Holder Ba | - |
| 216 |  | Refrigerator Egg Bin | - |
| 403 | – | WR72X249 Trck Can Shf | - |
| 407 |  | Refrigerator Crisper Drawer | - |
| 408 |  | Meat Pan | - |
| 409 | | Refrigerator Glass Shelf | - |
| 410 | | Refrigerator Pan Handle | - |
| 411 | | Refrigerator Pan Handle | - |
| 414 | | Gkt Pn Cv Ft | - |
| 415 | | Refrigerator Deli Drawer Cover | - |
| 417 | – | WR14X466 Gasket Shield | - |
| 440 | | WR17X4094NLA Wine Rack Pk | Discontinued |
| 468 |  | Refrigerator Drawer Slide Rail Bearing | $6.60 Part Advantage |
| 470 | – | WR14X420 203c3566p004 | - |
| 471 | | Refrigerator Deli Drawer | - |
| 472 | – | WR38X10062 Refrigerator Trim | - |
| 473A |  | WR72X210NLA Refrigerator Snack Pan Slide Rail, Right | Discontinued |
| 473B | | WR72X211NLA Refrigerator Snack Drawer Slide Rail, Left | Discontinued |
| 479A |  | Refrigerator Drawer Slide Rail | $24.02 Part Advantage |
| 479B |  | Refrigerator Crisper Drawer Slide Rail | $26.00 Part Advantage |
| 480A |  | Refrigerator Drawer Slide Rail | $49.20 Parts Dr |
| 480B |  | Refrigerator Drawer Slide Rail | $33.95 ApplianceParts Pro |
| 481 | | Slide Pan | - |
| 500 | | Refrigerator Spillproof Cantilever Shelf Frame | - |
| 501 | – | WR32X10030 Refrigerator Shelf End Cap | - |
| 504 | – | WR14X469 Slide Out Seal | - |
| 505 | | Shelf Stop | - |
| 551 | | WZ4X244NLA SCR 8-18 AB RNDW 5/8 SS | Discontinued |
| 554 |  | WR01X10601replaces WR1X2141 Refrigerator Screw | - |
