Model
Kenmore 363.58095890
Refrigerator (Kenmore 36358095890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58095890Refrigerator (Kenmore 36358095890)
11 diagrams327 parts
Parts Sections (11)
Diagram

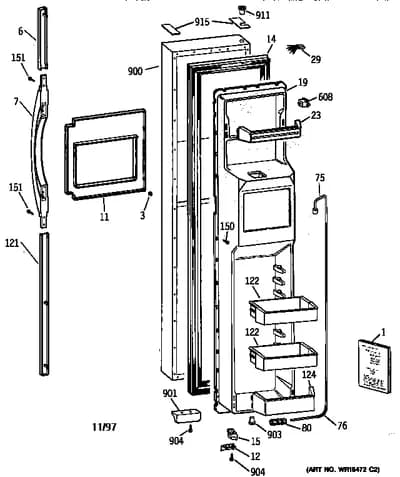

FREEZER DOOR
Parts in FREEZER DOOR
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1A |  | Refrigerator User's Manual | $12.55 |
| 1B | | Refrigerator Owner's Manual | $2.56 RepairClinic |
| 1C | – | SR1228 Energy Guide Label Tag | - |
| 1D | – | SR3817 Refrigerator Parts List | - |
| 1E | – | 31-51119 Refrigerator Mini Wiring Manual | - |
| 3 | | WR2X8669replaces WR02X8669 Refrigerator Fastener Tub | - |
| 6 | – | WR12X10055 Refrigerator Handle Trim | - |
| 7 | – | WR12X10053 Handle Sxs A | - |
| 11 | – | WR38X10065 Refrigerator Trim Recess | - |
| 12 | | WR02X9244NLA Refrigerator Door Stop | Discontinued |
| 14 | | Refrigerator Freezer Door Gasket | Discontinued |
| 15 | | Refrigerator Cam Closure | Discontinued |
| 19 | – | WR77X0649 Dr Inner Fz | - |
| 23 | | Refrigerator Module | - |
| 29 | | WR23X0422NLA Refrigerator Drive Hinge Harness | Discontinued |
| 75 | | Grommet Tube | Discontinued |
| 76 | | WR2X8933replaces WR02X8933 Refrigerator Sleeve | - |
| 80 |  | WR02X11330replaces WR02X8545 Union Nut | $4.50 Part Advantage |
| 121 | | Refrigerator Handle Trim | - |
| 122 | – | WR71X10059 Refrigerator Freezer Door Shelf | - |
| 124 | – | WR71X10056 Refrigerator Module Assembly | - |
| 150 |  | WR1X1791Dreplaces WR01X1791 Refrigerator Screw | $22.07 RepairClinic |
| 608 |  | WR23X427replaces WR23X0427 Freezer Light Switch | $59.60 Parts Dr |
| 900 | – | WR78X10071 Fz Foam Asm | - |
| 901 | – | WR10X0126 Strkie Mag | - |
| 903 | – | WR01X2039 Refrigerator Thimble Door | - |
| 904 |  | WR01X10610replaces WR01X2134 Refrigerator Screw | $2.27 Parts Dr |
| 911 | | WR01X2041NLA Refrigerator Thimble Door | Discontinued |
| 915 | – | WR01X2038 Cornr Cvr Bk | - |
