Model
Kenmore 363.58095891
Refrigerator (Kenmore 36358095891)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58095891Refrigerator (Kenmore 36358095891)
11 diagrams330 parts
Parts Sections (11)
Diagram

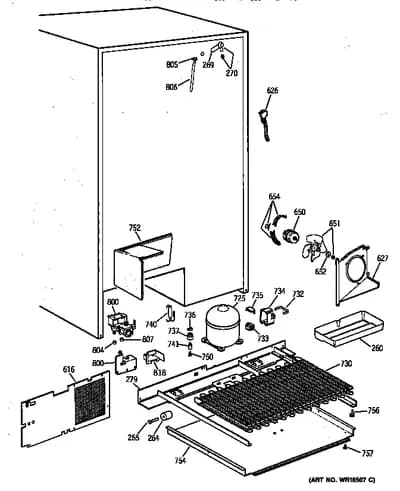

UNIT PARTS
Parts in UNIT PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 260 |  | WR32X10011NLA Pan Water Diode | Discontinued |
| 264 | | WR2X8838replaces WR02X8838 Mobility Wheel | - |
| 265 | – | WR01X2050 Refrigerator Wheel Axle | - |
| 269 | | Refrigerator Water Tube | Discontinued |
| 270A |  | WR2X8474replaces WR02X8474 Refrigerator Grommet | $27.35 Parts Dr |
| 270B |  | WR2X4754replaces WR01X5223 Refrigerator Clamp Fill Tube | $6.95 ApplianceParts Pro |
| 279 | – | WR17X10218 Rail Mtg Asm | - |
| 616 | – | WR82X10039 Refrigerator Access Cover | - |
| 626A |  | WR1X5278replaces WR01X5278 Cable Clamp | $8.59 Parts Dr |
| 626B |  | WR23X10300replaces WR23X0420 Cord Pwr Asm | - |
| 627 | | Housing Condenser | - |
| 650 |  | WR60X187replaces WR60X10010 Condenser Motor | $180.99 Part Advantage |
| 651A | | WR01X1515NLA Refrigerator Nut | Discontinued |
| 651B | | WR60X0234NLA Blade Cond | Discontinued |
| 652 | | WR1X1714replaces WR01X1714 Washer | - |
| 654A | | WR01X2019NLA Condenser Grommet | Discontinued |
| 654B | | WR02X9240NLA Leg Condenser Fan | Discontinued |
| 725 |  | WR87X10226replaces WR87X0464 Hi Side Asm | $413.09 Part Advantage |
| 730 | – | WR84X0206 Refrigerator Condenser | - |
| 732 | – | WR02X7226 Cover Clip | - |
| 733 | | WR07X0253NLA Refrigerator Relay Protector | Discontinued |
| 734 | – | WR02X7834 Cover Relay | - |
| 735 | | WR8X172replaces WR08X0172 Refrigerator Overload | - |
| 736 |  | WR2X8203replaces WR02X8203 Clip | $3.30 RepairClinic |
| 737 |  | WR02X22869replaces WR02X10099 Grommet | $5.10 Part Advantage |
| 740 |  | WR86X25269replaces WR86X0096 Dryer Filter | $45.90 Part Advantage |
| 741 |  | WR1X1779replaces WR01X1779 Stud Mtgcomp | - |
| 750 |  | WR1X1786replaces WR01X1786 Refrigerator Screw | $7.37 ApplianceParts Pro |
| 752 | | Refrigerator Insulation | - |
| 754 | – | WR82X0358 Refrigerator Floor | - |
| 756 | – | WR01X2021 Refrigerator Pad | - |
| 757 | – | WR01X2035 Refrigerator Push Fastener | - |
| 800A |  | WR57X10051replaces WR02X10105 Refrigerator Water Valve Bracket | $41.48 Part Advantage |
| 800B | | WR57X10051replaces WR57X10010 Refrigerator Water Valve | $41.48 Part Advantage |
| 804 |  | WR57X57replaces WR57X0057 Nut | - |
| 805 | | WR1X5278replaces WR02X3736 Str Relief | $8.59 Parts Dr |
| 806 | | Tube Icemaker | Discontinued |
| 807A | | WR02X4046NLA Nut & Union | Discontinued |
| 807B |  | WR02X11330replaces WR02X4048 Nut & Union | $4.50 Part Advantage |
| 818 | – | WR02X10106 Refrigerator Splash Guard | - |
