Model
Kenmore 363.58097890
Refrigerator (Kenmore 36358097890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58097890Refrigerator (Kenmore 36358097890)
11 diagrams326 parts
Parts Sections (11)
Diagram

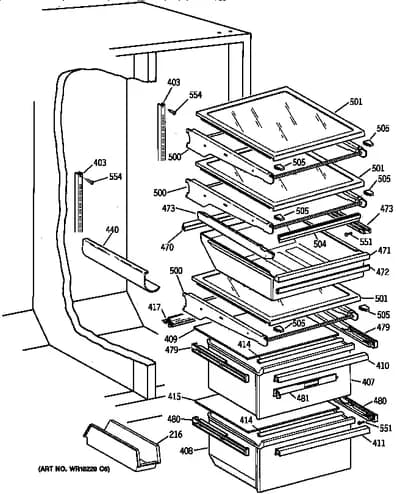

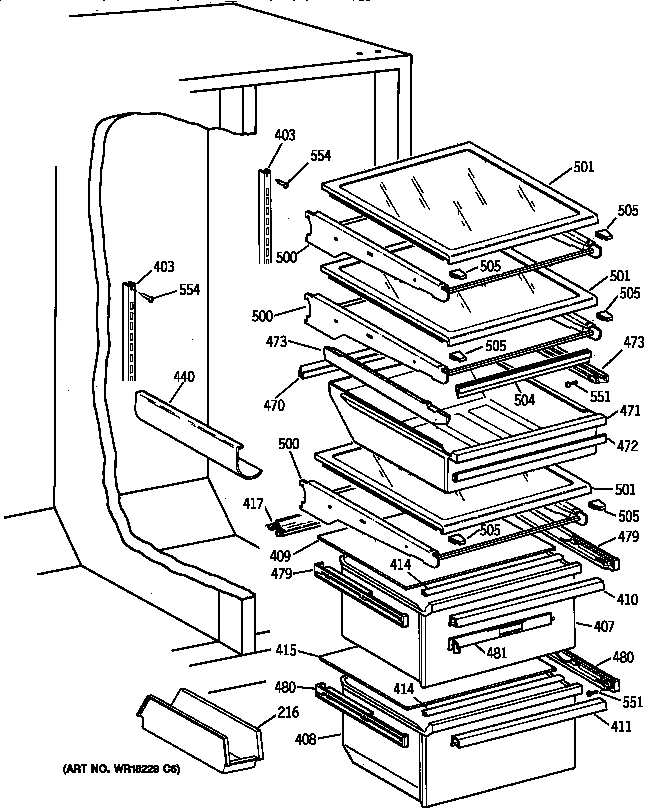

FRESH FOOD SECTION
Parts in FRESH FOOD SECTION
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 216 |  | Refrigerator Egg Bin | - |
| 403 | – | WR72X0249 Trck Can Shf | - |
| 407 |  | Refrigerator Crisper Drawer | - |
| 408 |  | Meat Pan | - |
| 409 | | Refrigerator Glass Shelf | - |
| 410 | | Refrigerator Pan Handle | - |
| 411 | | Refrigerator Pan Handle | - |
| 414 | – | WR14X0431 Gkt Pn Cv Ft | - |
| 415 | | Refrigerator Deli Drawer Cover | - |
| 417 | – | WR14X0466 Gasket Shield | - |
| 440 | | WR17X4094NLA Wine Rack Pk | Discontinued |
| 470 | – | WR14X0420 Pan Gasket | - |
| 471A |  | WR2X8349replaces WR02X8349 Refrigerator Screw | - |
| 471B | | Refrigerator Deli Drawer | - |
| 472 | – | WR38X10062 Refrigerator Trim | - |
| 473A |  | WR1X2048replaces WR01X2048 Refrigerator Crisper Pan Rail Slide Bearing | $6.60 Part Advantage |
| 473B | | Pan Slide, Left | Discontinued |
| 473C |  | Pan Slide, Right | Discontinued |
| 479A |  | WR72X240replaces WR72X0240 Refrigerator Slide Assembly, Right | $24.02 Part Advantage |
| 479B |  | WR72X239replaces WR72X0239 Refrigerator Slide Assembly, Left | $26.00 Part Advantage |
| 480A |  | WR72X241replaces WR72X0241 Refrigerator Slide Assembly, Left | $33.95 ApplianceParts Pro |
| 480B |  | WR72X242replaces WR72X0242 Refrigerator Slide Assembly, Right | $49.20 Parts Dr |
| 481 | | WR1X2079replaces WR01X2079 Slide Pan Foot | - |
| 500 | | Refrigerator Spillproof Cantilever Shelf Frame | - |
| 501 | – | WR32X10030 Refrigerator Shelf End Cap | - |
| 504 | – | WR14X0469 Slide Out Seal | - |
| 505 | – | WR01X2080 Shelf Stop | - |
| 551 | | WZ04X0244NLA Refrigerator Screw | Discontinued |
| 554 |  | WR01X10601replaces WR01X2141 Refrigerator Screw | - |
