Model
Kenmore 363.58097891
Refrigerator (Kenmore 36358097891)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58097891Refrigerator (Kenmore 36358097891)
11 diagrams331 parts
Parts Sections (11)
Diagram

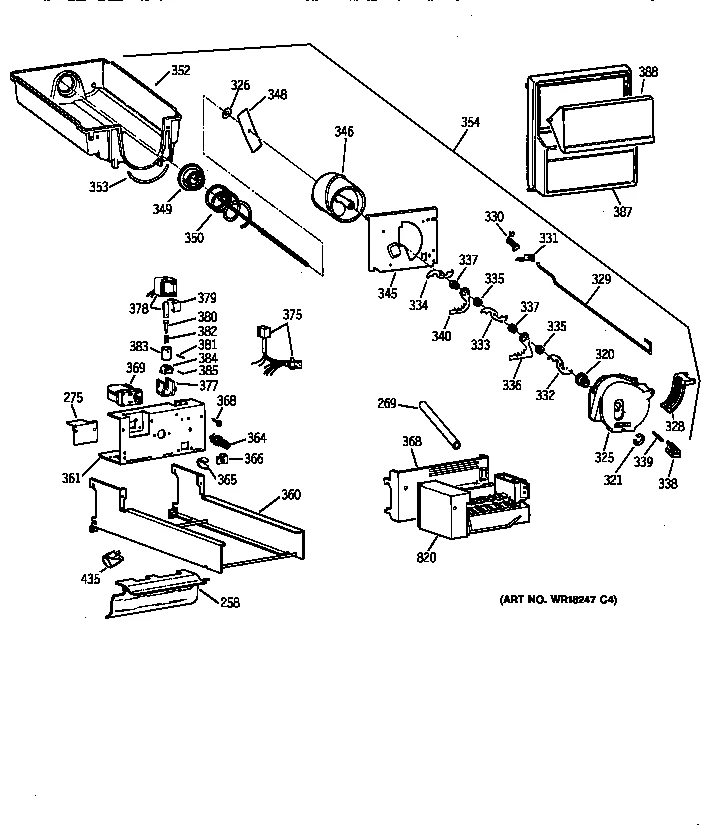

ICE BUCKET
Parts in ICE BUCKET
53 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 258 |  | Shield Lt Fz | - |
| 269 | | Refrigerator Water Tube | Discontinued |
| 275 | – | WR01X2018 Cover Icemaker Plug | - |
| 320 | | WR01X1585NLA Refrigerator Nut | Discontinued |
| 321 |  | WR1X1367Dreplaces WR01X1367 Refrigerator Retainer Ring | $13.79 ApplianceParts Pro |
| 325 |  | Refrigerator Ice Crusher Housing | - |
| 326 |  | WR1X1366Dreplaces WR01X1366 Washer | - |
| 328A |  | WR2X4143replaces WR02X4143 Refrigerator Pivot | $7.95 ApplianceParts Pro |
| 328B | | WR02X4561NLA Refrigerator Spring | Discontinued |
| 328C | | WR17X2059NLA Refrigerator Ice Container Ice Deflector | Discontinued |
| 329 | – | WR17X3853 Actuator Wire | - |
| 330 | | WR2X4145replaces WR02X4145 Refrigerator Spring | - |
| 331 | | WR2X4251replaces WR02X4251 Refrigerator Retainer | - |
| 332 |  | GE Profile Refrigerator Ice Dispenser Rotary Blade | - |
| 333 |  | GE Profile Refrigerator Ice Dispenser Rotary Blade | - |
| 334 |  | GE Profile Refrigerator Ice Dispenser Crusher Blade | - |
| 335 | – | WR02X4139 Refrigerator Spacer | - |
| 336 | | Refrigerator Blade | - |
| 337 |  | WR2X4138replaces WR02X4138 Refrigerator Spacer | $15.41 ApplianceParts Pro |
| 338 |  | WR2X4140replaces WR02X4140 Blade Rest | $10.34 ApplianceParts Pro |
| 339 | | Refrigerator Pin | Discontinued |
| 340 |  | Refrigerator Ice Crusher Blade | $6.67 RepairClinic |
| 345 | | WR17X2062NLA Refrigerator Ice Crusher Housing Plate | Discontinued |
| 346 |  | Refrigerator Dispenser Auger, Front | - |
| 348 | | WR02X7351NLA Blade In Dip | Discontinued |
| 349 |  | WR2X4550replaces WR02X4550 Drive Cup | - |
| 350 | | Refrigerator Dispenser Auger | - |
| 352 | – | WR30X0313 Refrigerator Ice Bucket | - |
| 353 |  | WR2X7905replaces WR02X7905 Bucket Seal | $10.07 ApplianceParts Pro |
| 354 | | WR17X4313NLA Refrigerator Ice Container | Discontinued |
| 360 | – | WR71X2529 Shelf Bucket | - |
| 361 | | WR17X10070NLA Refrigerator Motor Cover | Discontinued |
| 364 | | WR02X7310NLA Twist Support | Discontinued |
| 365 | | Hub Auger | Discontinued |
| 366 | | WR01X1547NLA J Nut | Discontinued |
| 368A |  | WR01X10618replaces WR01X1788 Refrigerator Screw | $7.18 RepairClinic |
| 368B | | Refrigerator Bracket Ice Maker | - |
| 369 |  | WR60X10262replaces WR60X0202 Motor C-disp | $142.02 Part Advantage |
| 375 | | WR23X463replaces WR23X0463 Harn Mtr Dis | - |
| 377 |  | WR2X7309replaces WR02X7309 Refrigerator Solenoid | - |
| 378 |  | WR62X23154replaces WR62X0058 Refrigerator Solenoid Arm Assembly | $85.70 Part Advantage |
| 379 |  | WR62X26536replaces WR17X1063 Shroud | $50.29 Parts Dr |
| 380 | | WR62X26536replaces WR17X1064 Refrigerator Ice Dispenser Solenoid Plunger | $50.29 Parts Dr |
| 381 | | WR62X26536replaces WR02X4257 Refrigerator Spiral Pin | $50.29 Parts Dr |
| 382 | | WR62X26536replaces WR02X4258 Refrigerator Spring | $50.29 Parts Dr |
| 383 | | WR62X26536replaces WR17X1065 Refrigerator Ice Dispenser Solenoid Collar | $50.29 Parts Dr |
| 384 | | WR62X26536replaces WR17X1066 Refrigerator Ice Dispenser Solenoid Stirrup | $50.29 Parts Dr |
| 385 | | WR62X26536replaces WR02X4259 Refrigerator Pin | $50.29 Parts Dr |
| 387 | | Refrigerator Ice Bin Cover, Front | - |
| 388 | | Dr Ice Stor | - |
| 435A |  | WR2X9391replaces WR02X9391 Terminal Socket | $7.98 Part Advantage |
| 435B |  | 40A15replaces STD372402 40a15/22 | $8.96 Parts Dr |
| 820 |  | WR30X10093replaces WR30X0328 Icemaker Crescent | $168.04 Parts Dr |
