Model
Kenmore 363.58251891
Refrigerator (Kenmore 36358251891)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58251891Refrigerator (Kenmore 36358251891)
11 diagrams317 parts
Parts Sections (11)
Diagram

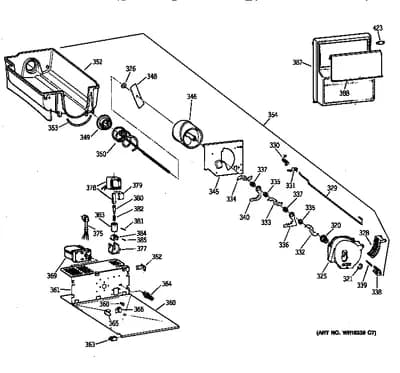

ICE BUCKET
Parts in ICE BUCKET
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 320 |  | WR01X1585NLA Refrigerator Nut | Discontinued |
| 321 |  | WR1X1367Dreplaces WR01X1367 Refrigerator Retainer Ring | $13.79 ApplianceParts Pro |
| 325 |  | Refrigerator Ice Crusher Housing | - |
| 326 |  | WR1X1366Dreplaces WR01X1366 Washer | - |
| 328A |  | WR2X4143replaces WR02X4143 Refrigerator Pivot | $7.95 ApplianceParts Pro |
| 328B | | WR02X4561NLA Refrigerator Spring | Discontinued |
| 328C | | WR17X2059NLA Refrigerator Ice Container Ice Deflector | Discontinued |
| 329 | | Refrigerator Ice Dispenser Actuator Rod | - |
| 330 | | WR2X4145replaces WR02X4145 Refrigerator Spring | - |
| 331 | | WR2X4251replaces WR02X4251 Refrigerator Retainer | - |
| 332 |  | GE Profile Refrigerator Ice Dispenser Rotary Blade | - |
| 333 |  | GE Profile Refrigerator Ice Dispenser Rotary Blade | - |
| 334 |  | GE Profile Refrigerator Ice Dispenser Crusher Blade | - |
| 335 | – | WR02X4139 Refrigerator Spacer | - |
| 336 | | Refrigerator Blade | - |
| 337 |  | WR2X4138replaces WR02X4138 Refrigerator Spacer | $15.41 ApplianceParts Pro |
| 338 |  | WR2X4140replaces WR02X4140 Blade Rest | $10.34 ApplianceParts Pro |
| 339 | | Refrigerator Pin | Discontinued |
| 340 |  | Refrigerator Ice Crusher Blade | $6.67 RepairClinic |
| 345 | | WR17X2760NLA Refrigerator Ice Dispenser Container Mounting Plate | Discontinued |
| 346 |  | Refrigerator Dispenser Auger, Front | - |
| 348 | | WR02X7351NLA Blade In Dip | Discontinued |
| 349 |  | WR2X4550replaces WR02X4550 Drive Cup | - |
| 350 | | WR17X4309NLA Refrigerator Helix Auger | Discontinued |
| 352 | | Refrigerator Ice Dispenser | Discontinued |
| 353 |  | WR2X7905replaces WR02X7905 Bucket Seal | $10.07 ApplianceParts Pro |
| 354 |  | Refrigerator Ice Container Assembly | $298.88 Parts Dr |
| 360A | – | WR02X8730 Refrigerator Protector | - |
| 360B | – | WR71X2444 Shelf Bucket | - |
| 361 | | Refrigerator Motor Cover | - |
| 362 | | WR2X8839replaces WR02X8839 Refrigerator Shelf Bracket | - |
| 363 | | WR2X8952replaces WR02X8952 Supprt Twist | - |
| 364 | | WR02X7310NLA Twist Support | Discontinued |
| 365 | | Hub Auger | Discontinued |
| 366 | | WR01X1547NLA J Nut | Discontinued |
| 368A |  | WR01X10618replaces WR01X1788 Refrigerator Screw | $7.18 RepairClinic |
| 368B | | WR2X8459replaces WR02X8459 Refrigerator Ice Maker Mounting Bracket | - |
| 369 |  | WR60X10262replaces WR60X0202 Motor C-disp | $142.02 Part Advantage |
| 375 | | Refrigerator Motor Harness | - |
| 377 |  | WR2X7309replaces WR02X7309 Refrigerator Solenoid | - |
| 378 |  | WR62X23154replaces WR62X0058 Refrigerator Solenoid Arm Assembly | $85.70 Part Advantage |
| 379 |  | WR62X26536replaces WR17X1063 Shroud | $50.29 Parts Dr |
| 380 | | WR62X26536replaces WR17X1064 Refrigerator Ice Dispenser Solenoid Plunger | $50.29 Parts Dr |
| 381 | | WR62X26536replaces WR02X4257 Refrigerator Spiral Pin | $50.29 Parts Dr |
| 382 | | WR62X26536replaces WR02X4258 Refrigerator Spring | $50.29 Parts Dr |
| 383 | | WR62X23154replaces WR17X1065 Refrigerator Ice Dispenser Solenoid Collar | $85.70 Part Advantage |
| 384 | | WR62X26536replaces WR17X1066 Refrigerator Ice Dispenser Solenoid Stirrup | $50.29 Parts Dr |
| 385 | | WR62X26536replaces WR02X4259 Refrigerator Pin | $50.29 Parts Dr |
| 387 | – | WR17X10086 Refrigerator Cover Bucket | - |
| 388A |  | WR17X10273replaces WR17X2882 Door Ice Stg | $53.20 PartSelect |
| 388B | | Refrigerator Ice Container Front Cover Door Trim | - |
| 423 | | Grommet Support | - |
