Model
Kenmore 363.58252890
Refrigerator (Kenmore 36358252890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58252890Refrigerator (Kenmore 36358252890)
11 diagrams276 parts
Parts Sections (11)
Diagram

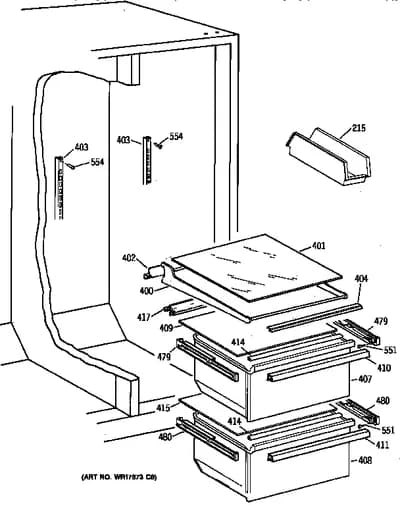

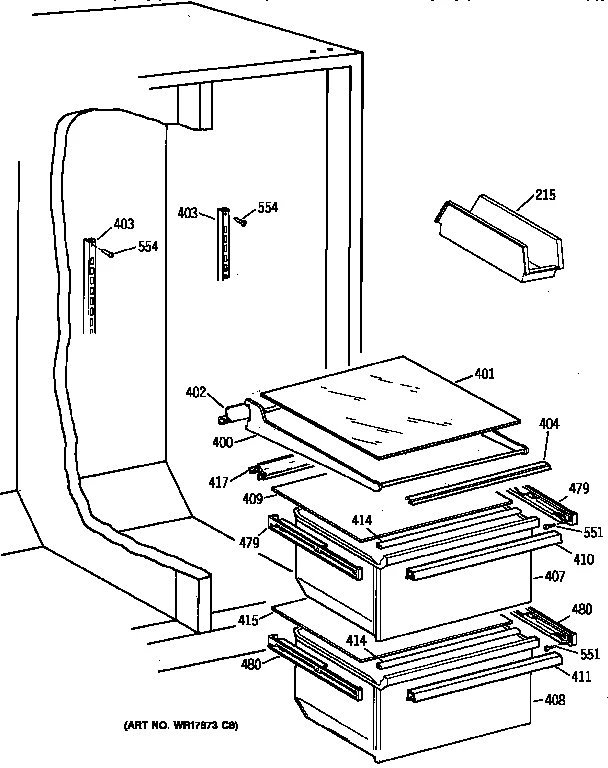

FRESH FOOD SECTION
Parts in FRESH FOOD SECTION
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 215 |  | WR32X0897NLA Util Bucket | Discontinued |
| 400 | | Refrigerator Cantilever Shelf Frame | - |
| 401 | | Refrigerator Glass Shelf | - |
| 402 | | Refrigerator Glass Shelf | - |
| 403 | | Refrigerator Shelf Support | - |
| 404 | | Refrigerator Glass Trim | - |
| 407 |  | Refrigerator Crisper Drawer | - |
| 408 | | Refrigerator Crisper Drawer | $108.46 PartSelect |
| 409 | | Refrigerator Glass Shelf | - |
| 410 | – | WR17X10113 Refrigerator Pan Handle | - |
| 411 | | Refrigerator Pan Handle | - |
| 414 | – | WR14X0431 Gkt Pn Cv Ft | - |
| 415 | | Refrigerator Crisper Drawer Cover Glass Insert | - |
| 417 | | WR14X470replaces WR14X0470 Gskt Shld Lo | - |
| 479A |  | WR72X239replaces WR72X0239 Refrigerator Slide Assembly, Left | $26.00 Part Advantage |
| 479B |  | WR72X240replaces WR72X0240 Refrigerator Slide Assembly, Right | $24.02 Part Advantage |
| 480A | | Refrigerator Slide Assembly, Right | Discontinued |
| 480B |  | WR72X252replaces WR72X0252 Refrigerator Slide Assembly, Left | - |
| 551 | | WZ04X0244NLA Refrigerator Screw | Discontinued |
| 554 |  | WR01X10601replaces WR01X2141 Refrigerator Screw | - |
