Model
Kenmore 363.58252891
Refrigerator (Kenmore 36358252891)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58252891Refrigerator (Kenmore 36358252891)
11 diagrams316 parts
Parts Sections (11)
Diagram

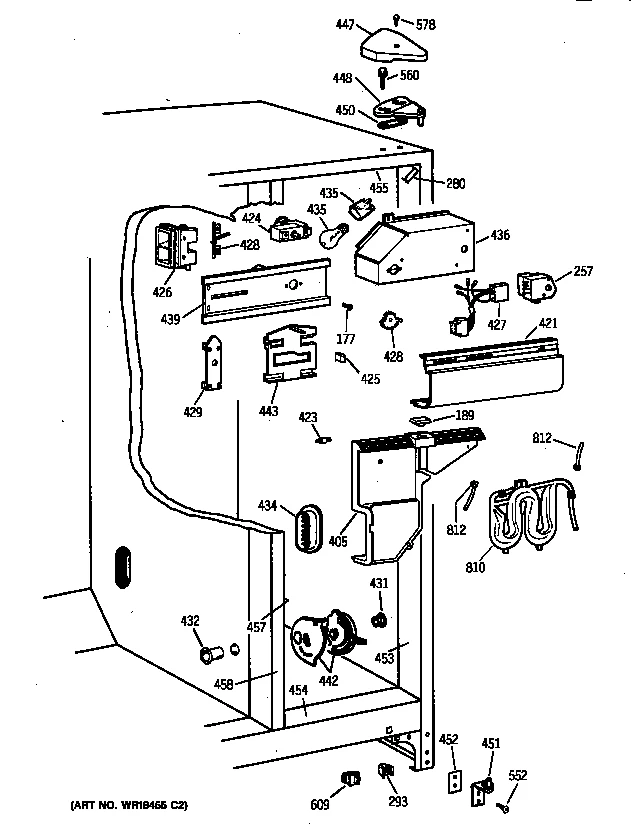

FRESH FOOD SECTION
Parts in FRESH FOOD SECTION
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 177 |  | WZ4X338Dreplaces WR01X5034 Refrigerator Screw | - |
| 189 | – | WR01X2115 Refrigerator Button Plug | - |
| 257 |  | WR9X489replaces WR09X0489 Refrigerator Defrost Control | $34.61 Part Advantage |
| 280 | – | WR02X8518 C Cap Oc Wh | - |
| 293 | – | WR02X7080 Grille Clip | - |
| 405 |  | Duct Air Ret | - |
| 421 | | Refrigerator Light Shield | - |
| 423 | | Grommet Support | - |
| 424 | – | WR09X0511 Refrigerator Temperature Control | - |
| 425 | – | WR02X8398 Refrigerator Knob | - |
| 426A | – | WR02X8514 Housing Nozzle | - |
| 426B | – | WR02X8425 Foam Nozzle | - |
| 427 | | WR23X316replaces WR23X0316 Refrigerator Harness | - |
| 428A | | WR02X8569NLA Control Damper | Discontinued |
| 428B | | WR02X8513NLA Refrigerator Gear Control | Discontinued |
| 429 | | WR02X8516NLA Heater Holder | Discontinued |
| 431 |  | WR2X9299replaces WR02X9299 Refrigerator Duct Cap Mullion | $7.37 ApplianceParts Pro |
| 432 | | WR02X8654NLA Duct Mullion | Discontinued |
| 434 | | WR02X9431NLA Refrigerator Air Duct | Discontinued |
| 435A |  | 40A15replaces STD372402 40a15/22 | $8.96 Parts Dr |
| 435B |  | WR2X9391replaces WR02X9391 Terminal Socket | $7.98 Part Advantage |
| 436 | – | WR02X7736 Refrigerator Bracket | - |
| 439 | | Channel Control | - |
| 442 | | Ctrl Mt Pan | - |
| 443 | | WR2X8570replaces WR02X8570 Refrigerator Rack Control | - |
| 447 | – | WR02X8262 Refrigerator Hinge Cover | - |
| 448 | – | WR13X0646 Hinge Tp Asm | - |
| 450 | | WR2X4194replaces WR02X4194 Refrigerator Shim | - |
| 451 |  | WR13X10020replaces WR13X0614 Refrigerator Hinge | $34.12 Part Advantage |
| 452 | | WR2X9442replaces WR02X9442 Refrigerator Hinge Shim | - |
| 453 | – | WR40X1744 Refrigerator Breaker Strip | - |
| 454 | | Refrigerator Breaker Strip | - |
| 455 | – | WR40X1746 Refrigerator Breaker Strip | - |
| 457 | – | WR40X1748 Refrigerator Breaker Strip | - |
| 458A | – | WR02X9376 Refrigerator Bracket Mullion | - |
| 458B | – | WR02X4739 U Nut | - |
| 458C | – | WR02X7033 Breaker Mullion | - |
| 458D | – | WR40X1749 Mullion Wh | - |
| 552 |  | WR01X10600replaces WR01X10034 Scr 12-24 Tt | $7.37 ApplianceParts Pro |
| 560 | | WR01X2140NLA Refrigerator Screw | Discontinued |
| 578 |  | WZ2X464Dreplaces WZ02X0464 Refrigerator Screw | - |
| 609 |  | WR23X37285replaces WR23X0193 Light Switch | $18.33 Part Advantage |
| 810 |  | Refrigerator Water Reservoir Assembly | $128.90 RepairClinic |
| 812 |  | Refrigerator Reservoir-to-Dispenser Water Tubing | $19.19 Part Advantage |
