Model
Kenmore 363.58257893
Refrigerator (Kenmore 36358257893)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58257893Refrigerator (Kenmore 36358257893)
11 diagrams327 parts
Parts Sections (11)
Diagram

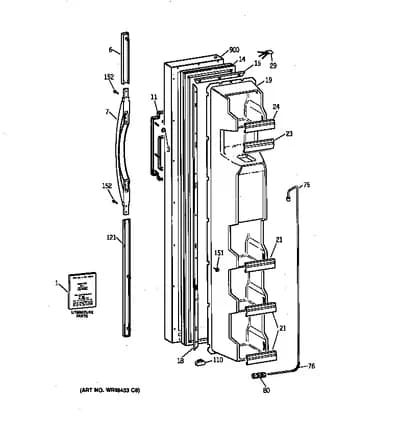

FREEZER DOOR
Parts in FREEZER DOOR
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1A |  | Block | - |
| 1B | – | 31-51238 Refrigerator Mini Wiring Manual | - |
| 3 |  | Refrigerator Fastener | - |
| 6 | | Refrigerator Handle Trim | - |
| 6 | – | WR12X10041 Refrigerator Handle Trim | - |
| 6 | | Refrigerator Handle Trim | - |
| 7 | | Handle Sxs A | Discontinued |
| 7 | | Refrigerator Door Handle | - |
| 7 | – | WR12X10089 Handle Sxs A | - |
| 11 | | Refrigerator Dispenser Trim (White) | - |
| 11 | – | WR38X10041 Refrigerator Trim Recess | - |
| 11 | | Refrigerator Dispenser Trim (Black) | - |
| 14 | | WR24X527NLA Refrigerator Freezer Door Gasket | Discontinued |
| 15 | – | WR17X3119 Refrigerator Retainer Strip | - |
| 18 | | Refrigerator Retainer Strip | Discontinued |
| 19 | | I.d.panel Fz | - |
| 21 | | Door Front | - |
| 23 | | Door Front | - |
| 24 | – | WR17X10092 Door Front | - |
| 29 | – | WR23X10096 Harness Dr H | - |
| 75 | | Grommet Tube | - |
| 76 | | Refrigerator Water Tubing Sleeve | - |
| 80 |  | WR02X11330replaces WR2X8545 Refrigerator Water Tube Fitting and Nut Kit | $4.50 Part Advantage |
| 110 | | WR2X8989NLA Refrigerator Freezer Drawer Frame Bumper | Discontinued |
| 121 | | WR12X10037NLA Refrigerator Door Handle Trim, Lower | Discontinued |
| 121 | | Refrigerator Handle Trim | - |
| 121 | | Refrigerator Handle Trim | - |
| 151 |  | WR01X10623replaces WR1X1554 Refrigerator Shoulder | $4.39 Parts Dr |
| 152 | – | WR1X10038 Scr 8-18 | - |
| 900 | – | WR78X10191 Refrigerator Door Foam Assembly | - |
| 900 | – | WR78X10192 Refrigerator Door Foam Assembly | - |
