Model
Kenmore 363.58262891
Refrigerator (Kenmore 36358262891)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58262891Refrigerator (Kenmore 36358262891)
11 diagrams338 parts
Parts Sections (11)
Diagram

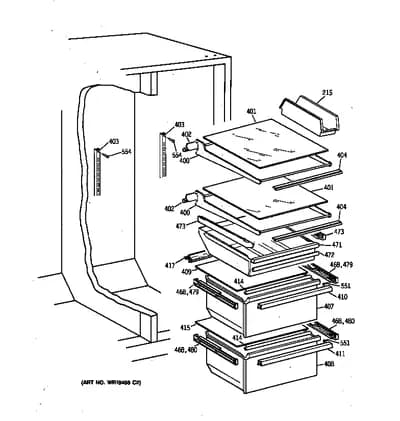

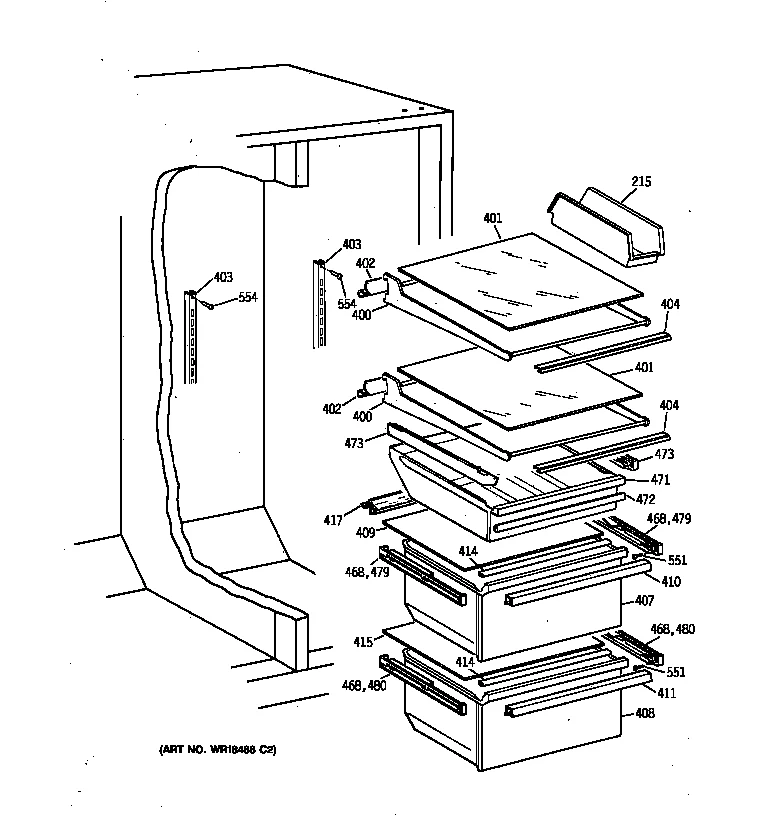

FRESH FOOD SECTION
Parts in FRESH FOOD SECTION
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 215 |  | WR32X897NLA Bucket Utili | Discontinued |
| 400 | | Refrigerator Cantilever Shelf Frame | - |
| 401 | | Refrigerator Glass Shelf | - |
| 402 | | Refrigerator Glass Shelf | - |
| 403 | | Refrigerator Shelf Support | - |
| 404 | | Refrigerator Glass Trim | - |
| 407 |  | Refrigerator Crisper Drawer | - |
| 408 | | Refrigerator Crisper Drawer | $108.46 PartSelect |
| 409 | | Refrigerator Glass Shelf | - |
| 410 | – | WR17X10113 Refrigerator Pan Handle | - |
| 411 | | Refrigerator Pan Handle | - |
| 414 | | Gkt Pn Cv Ft | - |
| 415 | | Refrigerator Crisper Drawer Cover Glass Insert | - |
| 417 | | Gasket Shield | - |
| 468 |  | Refrigerator Drawer Slide Rail Bearing | $6.60 Part Advantage |
| 471 | | Refrigerator Deli Drawer | - |
| 472 | – | WR38X10062 Refrigerator Trim | - |
| 473A |  | WR72X210NLA Refrigerator Snack Pan Slide Rail, Right | Discontinued |
| 473B | | WR72X211NLA Refrigerator Snack Drawer Slide Rail, Left | Discontinued |
| 479A |  | Refrigerator Crisper Drawer Slide Rail | $26.00 Part Advantage |
| 479B |  | Refrigerator Drawer Slide Rail | $24.02 Part Advantage |
| 480A |  | Refrigerator Crisper Drawer Slide Rail, Left | - |
| 480B | | WR72X253NLA Refrigerator Crisper Drawer Slide Rail, Right | Discontinued |
| 551 | | WZ4X244NLA SCR 8-18 AB RNDW 5/8 SS | Discontinued |
| 554 |  | WR01X10601replaces WR1X2141 Refrigerator Screw | - |
