Model
Kenmore 363.58267897
Refrigerator (Kenmore 36358267897)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58267897Refrigerator (Kenmore 36358267897)
11 diagrams342 parts
Parts Sections (11)
Diagram

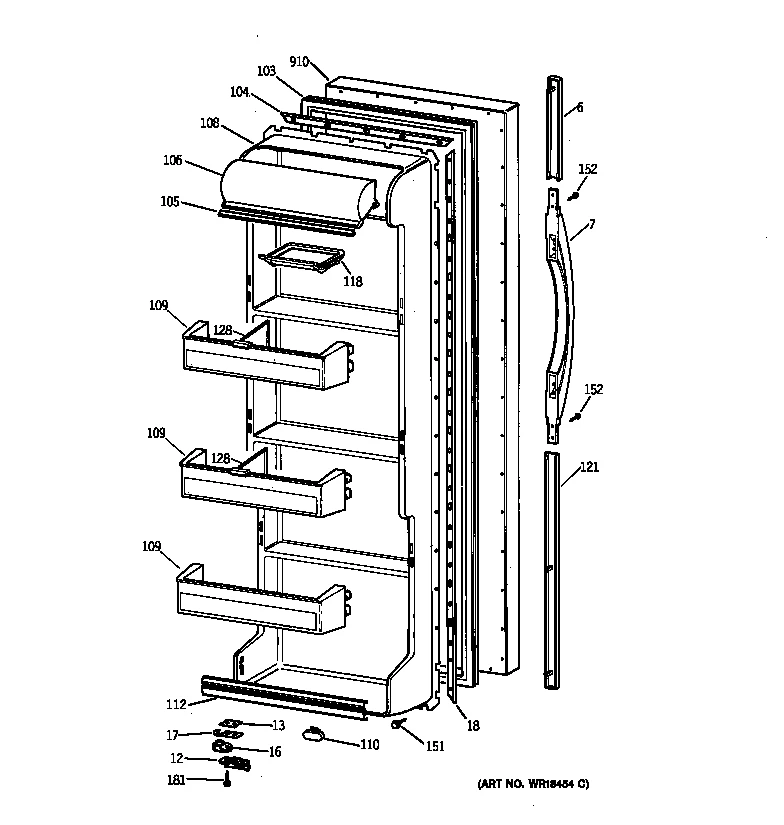

FRESH FOOD DOOR
Parts in FRESH FOOD DOOR
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 6 |  | Refrigerator Handle Trim | - |
| 6 | – | WR12X10041 Refrigerator Handle Trim | - |
| 6 | | Refrigerator Handle Trim | - |
| 7 | | Handle Sxs A | Discontinued |
| 7 | | Refrigerator Door Handle | - |
| 7 | – | WR12X10089 Handle Sxs A | - |
| 12 | | WR2X9300NLA Refrigerator Door Closer | Discontinued |
| 12 | | Refrigerator Door Stop | - |
| 13 | | Refrigerator Door Hinge Spacer | - |
| 16 |  | WR02X10140replaces WR2X10140 Refrigerator Riser Cam | $8.07 Parts Dr |
| 17A | | WR2X7491NLA Refrigerator Door Hinge Shim | Discontinued |
| 17B | | Riser Shim | Discontinued |
| 18 | | Refrigerator Retainer Strip | Discontinued |
| 103 | | Refrigerator Door Gasket (White) | - |
| 104 | | WR17X1168NLA Refrigerator Door Gasket Retainer | Discontinued |
| 105 | – | WR38X10069 Refrigerator Door Trim | - |
| 106 | | WR22X408NLA Refrigerator Dairy Door | Discontinued |
| 108 | – | WR77X599 I.d.panel Ff | - |
| 109 | | WR71X10053NLA Refrigerator Door Bin | Discontinued |
| 110 | | WR2X8989NLA Refrigerator Freezer Drawer Frame Bumper | Discontinued |
| 112 | | Refrigerator Door Shelf Rail | - |
| 118 | | WR19X5003NLA Butter Dish | Discontinued |
| 121 | | WR12X10037NLA Refrigerator Door Handle Trim, Lower | Discontinued |
| 121 | | Refrigerator Handle Trim | - |
| 121 | | Refrigerator Handle Trim | - |
| 128 | | Snugger Module | - |
| 151 |  | WR01X10623replaces WR1X1554 Refrigerator Shoulder | $4.39 Parts Dr |
| 152 | – | WR1X10038 Scr 8-18 | - |
| 181 | – | WR1X10161 SCR 10-32 GX IHXW 13/16S | - |
| 910 | | Refrigerator Door Foam Assembly | - |
| 910 | – | WR78X10194 Refrigerator Door Foam Assembly | - |
