Model
Kenmore 363.58272890
Refrigerator (Kenmore 36358272890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58272890Refrigerator (Kenmore 36358272890)
11 diagrams293 parts
Parts Sections (11)
Diagram

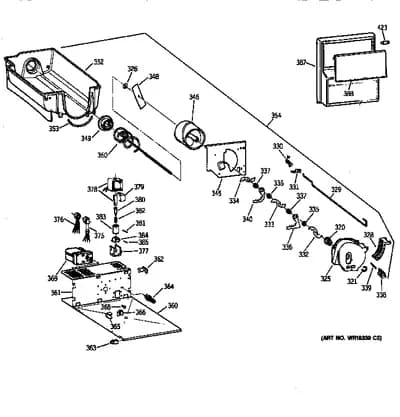

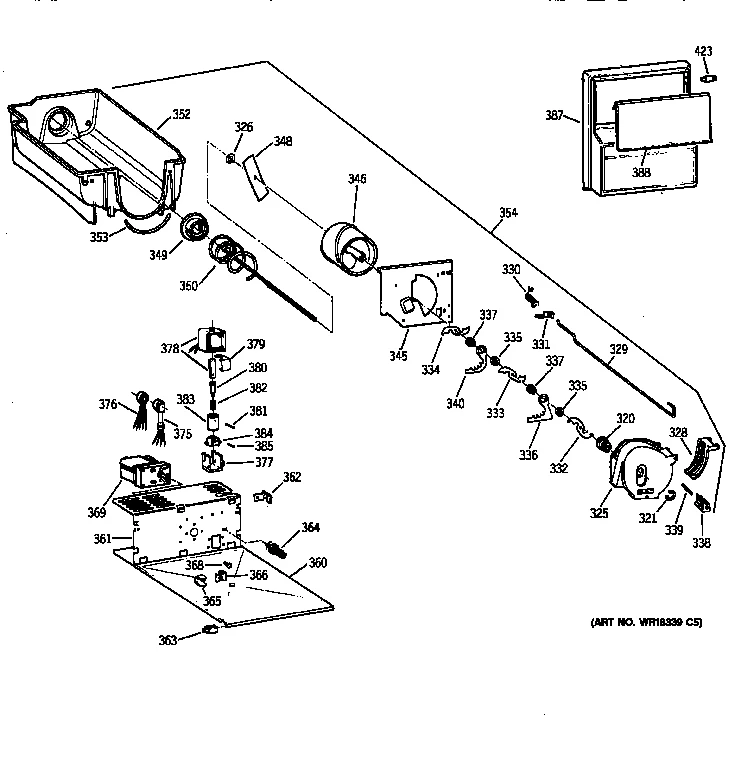

ICE BUCKET
Parts in ICE BUCKET
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 325 |  | Refrigerator Ice Crusher Housing | - |
| 328 |  | WR17X2059NLA Refrigerator Ice Container Ice Deflector | Discontinued |
| 329 | | Refrigerator Ice Dispenser Actuator Rod | - |
| 345 | | WR17X2760NLA Refrigerator Ice Dispenser Container Mounting Plate | Discontinued |
| 346 |  | Refrigerator Dispenser Auger, Front | - |
| 350 | | WR17X4309NLA Refrigerator Helix Auger | Discontinued |
| 352 | | Refrigerator Ice Dispenser | Discontinued |
| 353 |  | WR2X7905replaces WR02X7905 Bucket Seal | $10.07 ApplianceParts Pro |
| 354 |  | Refrigerator Ice Container Assembly | $298.88 Parts Dr |
| 360A | – | WR02X8730 Refrigerator Protector | - |
| 360B | – | WR71X2444 Shelf Bucket | - |
| 361 | | Refrigerator Cover | - |
| 362 | | WR2X8839replaces WR02X8839 Refrigerator Shelf Bracket | - |
| 363 | | WR2X8952replaces WR02X8952 Supprt Twist | - |
| 364 | | WR02X7310NLA Twist Support | Discontinued |
| 365 | | Hub Auger | Discontinued |
| 366 | | WR01X1547NLA J Nut | Discontinued |
| 368A |  | WR01X10618replaces WR01X1788 Refrigerator Screw | $7.18 RepairClinic |
| 368B | | WR2X8459replaces WR02X8459 Refrigerator Ice Maker Mounting Bracket | - |
| 369 |  | WR60X10262replaces WR60X0202 Motor C-disp | $142.02 Part Advantage |
| 375 | | WR23X194replaces WR23X0194 Refrigerator Motor Harness | - |
| 376 | – | WR23X0189 Plug Harness | - |
| 378 |  | WR62X23154replaces WR62X0058 Refrigerator Solenoid Arm Assembly | $85.70 Part Advantage |
| 387 | – | WR17X10086 Refrigerator Cover Bucket | - |
| 388 |  | WR17X10273replaces WR17X2882 Door Ice Stg | $53.20 PartSelect |
| 423 | | Grommet Support | - |
