Model
Kenmore 363.58275890
Refrigerator (Kenmore 36358275890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58275890Refrigerator (Kenmore 36358275890)
11 diagrams292 parts
Parts Sections (11)
Diagram

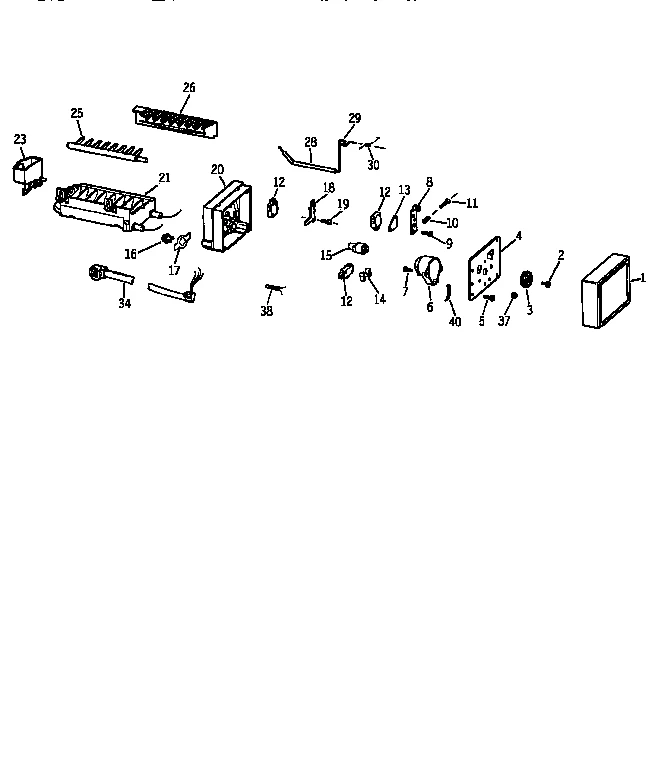

ICEMAKER WR30X0327
Parts in ICEMAKER WR30X0327
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WR29X182replaces WR29X0182 Ice Maker Cover | - |
| 2 | – | WR29X5109 Refrigerator Screw | - |
| 3 |  | WR30X10093replaces WR29X5162 Gear | $168.04 Parts Dr |
| 4 | – | WR29X5163 Refrigerator Mounting Plate | - |
| 5 | – | WR29X5112 Refrigerator Screw | - |
| 6 | | WR30X10093replaces WR29X10001 Refrigerator Ice Maker Motor | $168.04 Parts Dr |
| 7 | – | WR29X5135 Refrigerator Plate Screw | - |
| 8 | | WR30X10093replaces WR29X5189 Refrigerator Plate | $168.04 Parts Dr |
| 9 | – | WR29X5140 Refrigerator Screw | - |
| 10 | | WR30X10093replaces WR29X5190 Spring | $168.04 Parts Dr |
| 11 | – | WR29X5139 Refrigerator Screw Spring | - |
| 12 | | WR29X5171NLA Refrigerator Ice Maker On/Off Switch | Discontinued |
| 13 | – | WR29X5188 Insulator | - |
| 14 | – | WR29X5186 Refrigerator Spacer | - |
| 15 | | WR30X10093replaces WR29X5167 Cam | $168.04 Parts Dr |
| 16 | | WR30X10093replaces WR29X0157 Thermostat | $168.04 Parts Dr |
| 17 | | WR30X10093replaces WR29X0158 Clamp T-stat | $168.04 Parts Dr |
| 18 | | WR30X10093replaces WR29X5183 Lever | $168.04 Parts Dr |
| 19 | – | WR29X5122 Refrigerator Screw | - |
| 20 | | WR30X10093replaces WR29X0183 Housing | $168.04 Parts Dr |
| 21 | | WR29X204replaces WR29X0204 Mold Body | - |
| 23 | | WR29X10063replaces WR29X0153 Inlet Bearing | $7.58 RepairClinic |
| 25 | | WR30X10093replaces WR29X5174 Ejector | $168.04 Parts Dr |
| 26 | | WR30X10093replaces WR29X0160 Stripper | $168.04 Parts Dr |
| 28 |  | WR30X30972replaces WR29X5178 Refrigerator Sleeve | $171.15 Part Advantage |
| 29 | | Refrigerator Feeler Arm | - |
| 30 | | WR30X10093replaces WR29X5181 Refrigerator Ice Maker Shut-Off Arm Spring | $168.04 Parts Dr |
| 34 | – | WR29X0186 Wire Harness | - |
| 37 | | WR29X5153NLA Refrigerator Ice Maker Motor Gear | Discontinued |
| 38 | | WR30X10093replaces WR29X0185 Thermal Cuto | $168.04 Parts Dr |
| 40 | | WR30X10093replaces WR29X10002 Beam Spring | $168.04 Parts Dr |
