Model
Kenmore 363.58277890
Refrigerator (Kenmore 36358277890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58277890Refrigerator (Kenmore 36358277890)
11 diagrams293 parts
Parts Sections (11)

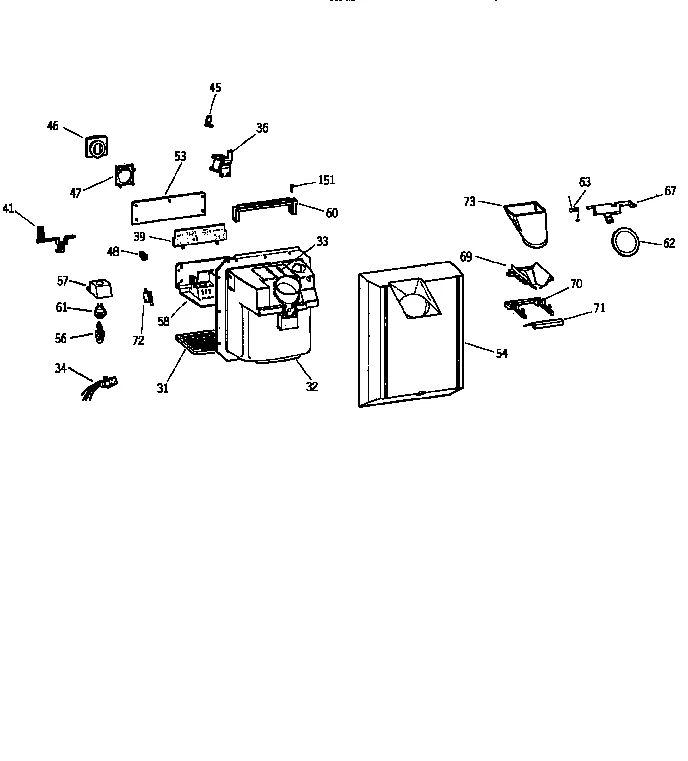

Diagram
DISPENSER
Parts in DISPENSER
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 31 |  | Recessed Grille | - |
| 32 | – | WR17X3205 Rec Disp Ad | - |
| 33 | | WR51X0353NLA Recessed Heater | Discontinued |
| 34 | – | WR23X0456 Harness Light Switch | - |
| 36 |  | WR62X107replaces WR62X0078 Refrigerator Solenoid | $73.95 ApplianceParts Pro |
| 39 | | Mod Time Del | - |
| 41 | | WR17X3493NLA Refrigerator Dispenser Cradle Actuator | Discontinued |
| 45 |  | WR2X8818replaces WR02X8818 Refrigerator Retainer | $6.72 ApplianceParts Pro |
| 46 | | WR02X8726NLA Pad Act Ad | Discontinued |
| 47 | | WR02X8681NLA Sup Act Pad | Discontinued |
| 48 | – | WR02X9154 Knob Rec Dis | - |
| 53 | – | WR17X10094 Refrigerator Nameplate | - |
| 54 | | Insul Recess | - |
| 56 | – | STD372071 Refrigerator Light Bulb | - |
| 57 | | WR2X8725replaces WR02X8725 Refrigerator Reflector | - |
| 58 | | Shd Rec Disp | - |
| 60 | | WR02X8674NLA Electronic Cover | Discontinued |
| 61 |  | WR2X9561replaces WR02X9561 Refrigerator Lamp Socket | $13.89 Parts Dr |
| 62 |  | WR17X11653replaces WR17X3093 Dr Reces Asm | $12.29 Part Advantage |
| 63 | | Refrigerator Spring | Discontinued |
| 67 |  | Refrigerator Dispenser Lever | - |
| 69 | | WR17X3095NLA Refrigerator Dispenser Ice Chute Funnel | Discontinued |
| 70 | – | WR02X8956 Supt Funnel | - |
| 71 | | WR17X3478NLA Deflec Icebk | Discontinued |
| 72 | | WR23X0366NLA Sw Cradl Act | Discontinued |
| 73 | | Refrigerator Dispenser Ice Chute | - |
| 151 |  | WR01X10623replaces WR01X1554 Shoulder Screw | $4.39 Parts Dr |
