Model
Kenmore 363.58472890
Refrigerator (Kenmore 36358472890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58472890Refrigerator (Kenmore 36358472890)
11 diagrams284 parts

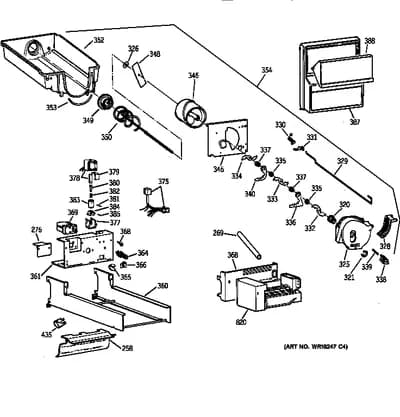

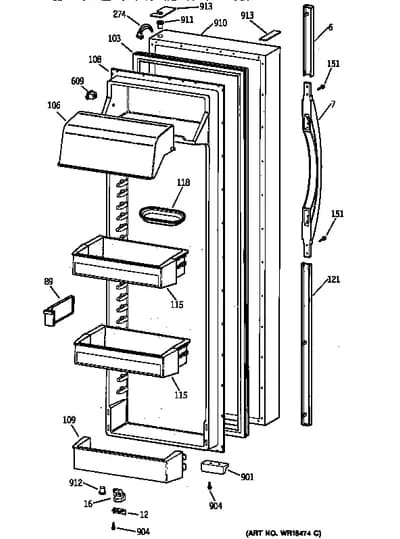

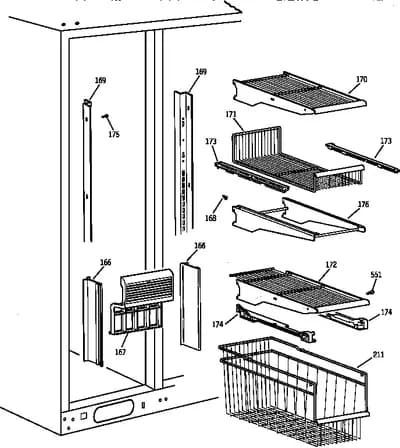

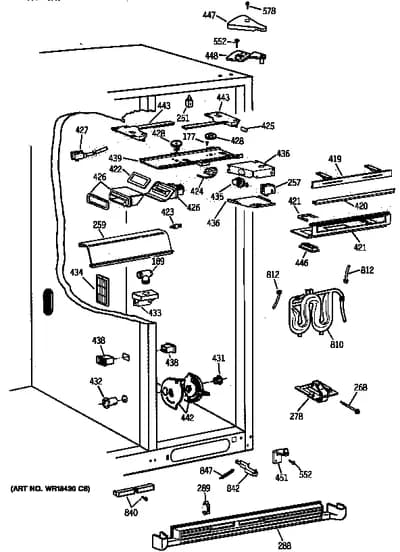

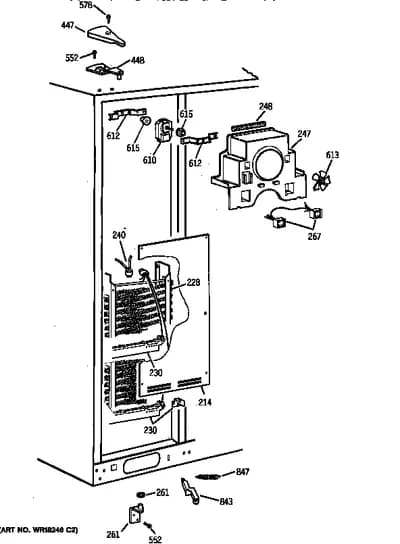

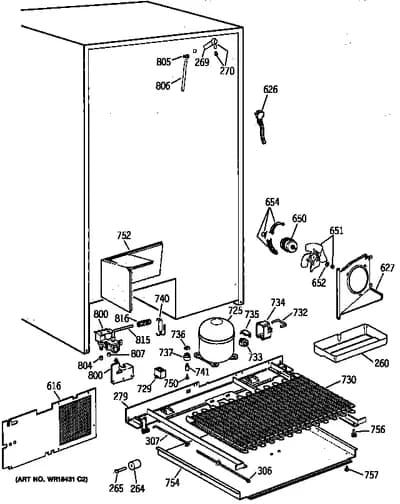

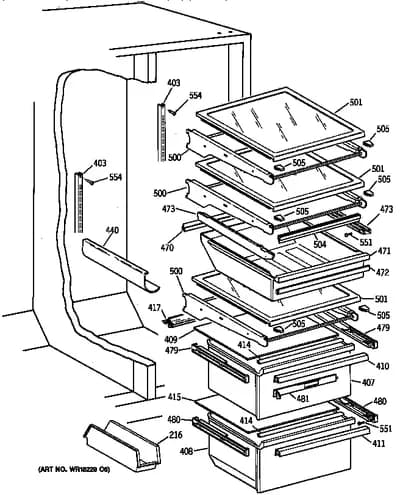

Parts Sections (11)
Diagram

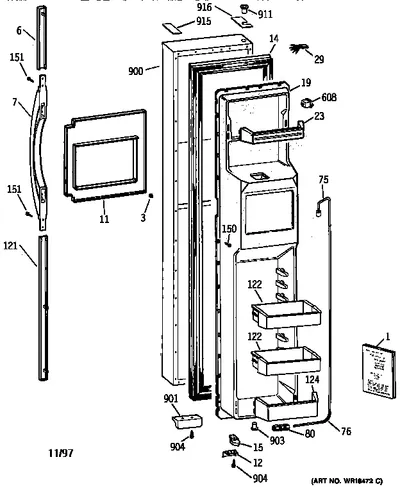

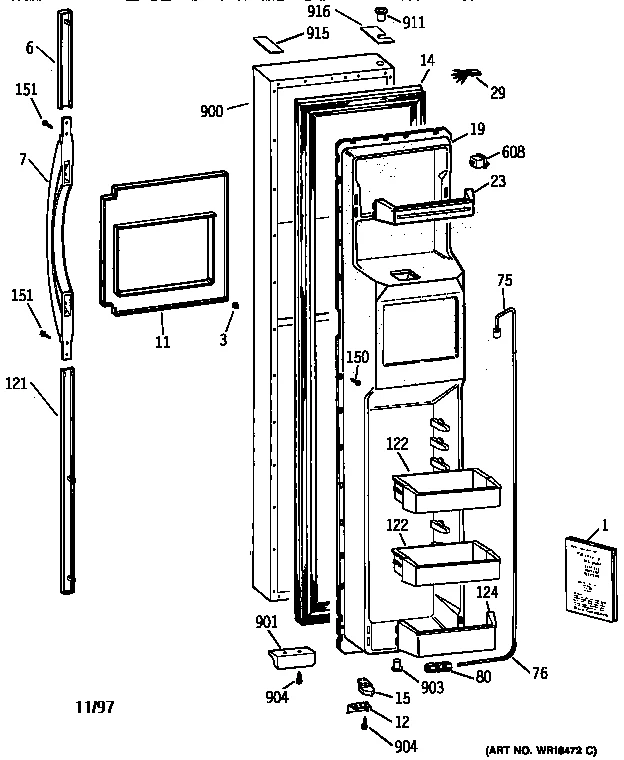

FREEZER DOOR
Parts in FREEZER DOOR
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1A |  | Refrigerator User's Manual | $12.55 |
| 1B | – | SR3818 Refrigerator Parts List | - |
| 1C | – | SR1229 Energy Guide Label Tag | - |
| 1D | | Refrigerator Owner's Manual | $2.56 RepairClinic |
| 1E | – | 31-51153 Refrigerator Mini Wiring Manual | - |
| 3 | | WR2X8669replaces WR02X8669 Refrigerator Fastener Tub | - |
| 6 | | Refrigerator Handle Trim | - |
| 7 | – | WR12X10036 Handle Sxs A | - |
| 11 | – | WR38X10064 Refrigerator Dispenser Trim | - |
| 12 | | WR02X9244NLA Refrigerator Door Stop | Discontinued |
| 14 | | WR24X559replaces WR24X0559 Refrigerator Freezer Door Gasket | - |
| 15 | | Refrigerator Cam Closure | Discontinued |
| 19 | – | WR77X0676 Refrigerator Inner Door | - |
| 23 | | Refrigerator Module | - |
| 29 | | WR23X0422NLA Refrigerator Drive Hinge Harness | Discontinued |
| 75 | | Grommet Tube | Discontinued |
| 76 | | WR2X8933replaces WR02X8933 Refrigerator Sleeve | - |
| 80 |  | WR02X11330replaces WR02X8545 Union Nut | $4.50 Part Advantage |
| 121 | | Refrigerator Handle Trim | - |
| 122 | – | WR71X10058 Refrigerator Module Assembly | - |
| 124 | – | WR71X10056 Refrigerator Module Assembly | - |
| 150 |  | WR1X1791Dreplaces WR01X1791 Refrigerator Screw | $22.07 RepairClinic |
| 608 |  | WR23X427replaces WR23X0427 Freezer Light Switch | $59.60 Parts Dr |
| 900 | – | WR78X10061 Out Freezer Door | - |
| 901 | – | WR10X0125 Strike Mag | - |
| 903 | – | WR01X2030 Refrigerator Thimble Door | - |
| 904 |  | WR01X10610replaces WR01X2134 Refrigerator Screw | $2.27 Parts Dr |
| 911 | – | WR01X2032 Refrigerator Thimble Door | - |
| 915 | – | WR01X2151 Corner Cover | - |
| 916 | – | WR01X2152 Corner Cover | - |
