Model
Kenmore 363.58472891
Refrigerator (Kenmore 36358472891)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58472891Refrigerator (Kenmore 36358472891)
11 diagrams362 parts
Parts Sections (11)
Diagram

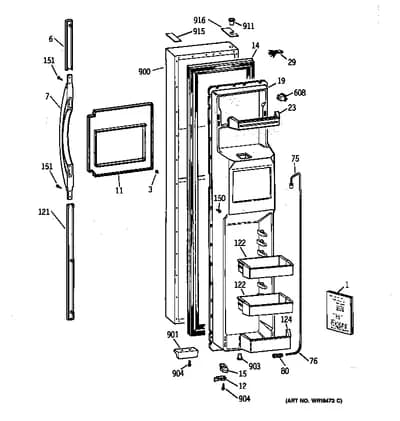

FREEZER DOOR
Parts in FREEZER DOOR
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1A |  | WB17X5059NLA Refrigerator Block | Discontinued |
| 1C | – | 31-51196 Refrigerator Mini Wiring Manual | - |
| 1D | – | SR618 Refrigerator Owner's Guide | - |
| 3 | | Refrigerator Fastener | - |
| 6 | | WR12X10051NLA Refrigerator Handle Trim | Discontinued |
| 6 | | Refrigerator Handle Trim | - |
| 6 | – | WR12X10055 Refrigerator Handle Trim | - |
| 7 | | Handle Sxs A | Discontinued |
| 7 | | Refrigerator Door Handle | - |
| 7 | – | WR12X10089 Handle Sxs A | - |
| 11 | – | WR38X10060 Al Disp Trim | - |
| 11 | – | WR38X10064 Refrigerator Dispenser Trim | - |
| 11 | – | WR38X10065 Refrigerator Trim Recess | - |
| 12 | | Refrigerator Door Stop | - |
| 14 | | Refrigerator Freezer Door Gasket (White) | - |
| 14 | | WR24X561NLA Refrigerator Freezer Door Gasket (Black) | Discontinued |
| 15 | | WR2X9235NLA Cam Closu | Discontinued |
| 15 | | WR2X9247NLA Cam Closu | Discontinued |
| 15 | | WR2X9250NLA Cam Closu | Discontinued |
| 19 | – | WR77X676 Refrigerator Inner Door | - |
| 23 | | Refrigerator Module | - |
| 29 | – | WR23X10042 Harness Dr H | - |
| 75 | | Grommet Tube | Discontinued |
| 76 | | Refrigerator Water Tubing Sleeve | - |
| 80 |  | WR02X11330replaces WR2X8545 Refrigerator Water Tube Fitting and Nut Kit | $4.50 Part Advantage |
| 121 | | Refrigerator Handle Trim | - |
| 121 | – | WR12X10063 Refrigerator Handle Trim | - |
| 121 | | Refrigerator Handle Trim | - |
| 122 | – | WR71X10058 Refrigerator Module Assembly | - |
| 124 | – | WR71X10056 Refrigerator Module Assembly | - |
| 150 |  | WR1X1791Dreplaces WR1X1791 Refrigerator Screw | $22.07 RepairClinic |
| 151 |  | WR01X10623replaces WR1X1554 Refrigerator Shoulder | $4.39 Parts Dr |
| 608 |  | Refrigerator Door Switch | $59.60 Parts Dr |
| 900 | | Refrigerator Door Foam Assembly | - |
| 900 | | Refrigerator Door Foam Assembly | - |
| 900 | | Refrigerator Door Foam Assembly | - |
| 901 | | 162d8262g010 | - |
| 901 | | WR49X10040replaces WR10X126 162d8262g012 | - |
| 901 | – | WR10X127 162d8262g005 | - |
| 903 | | Thimble D | - |
| 903 | | Thimble D | - |
| 903 | – | WR1X2045 Thimble D | - |
| 904 |  | WR01X10610replaces WR1X2134 Refrigerator Screw | $2.27 Parts Dr |
| 911 | | Thimble D | - |
| 911 | | Refrigerator Door Hinge Bushing (Black) | - |
| 911 | | Thimble D | - |
| 915 | – | WR1X2142 Cover Cor | - |
| 915 | | Corner Cover | - |
| 915 | – | WR1X2151 Corner Cover | - |
| 916 | – | WR1X2144 Corner Cover | - |
| 916 | | Corner Cover | - |
| 916 | – | WR1X2152 Corner Cover | - |
