Model
Kenmore 363.58475890
Refrigerator (Kenmore 36358475890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58475890Refrigerator (Kenmore 36358475890)
11 diagrams285 parts
Parts Sections (11)
Diagram

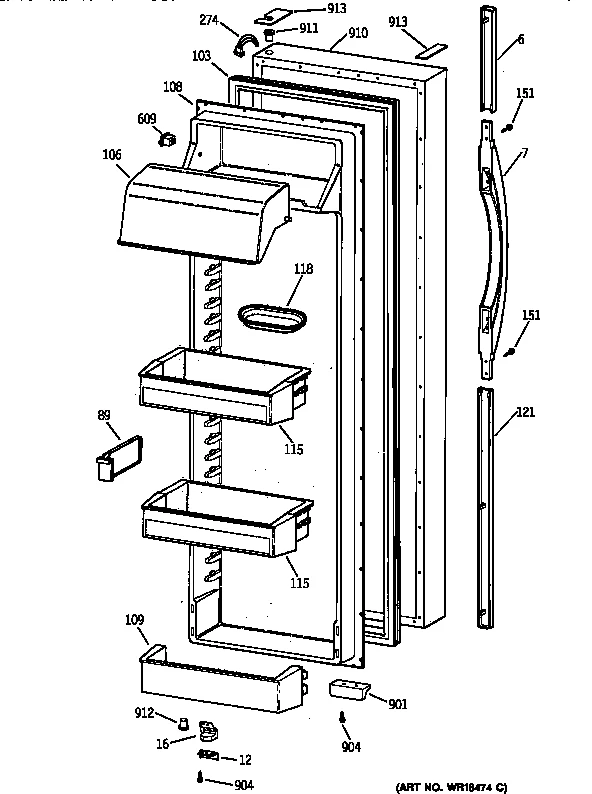

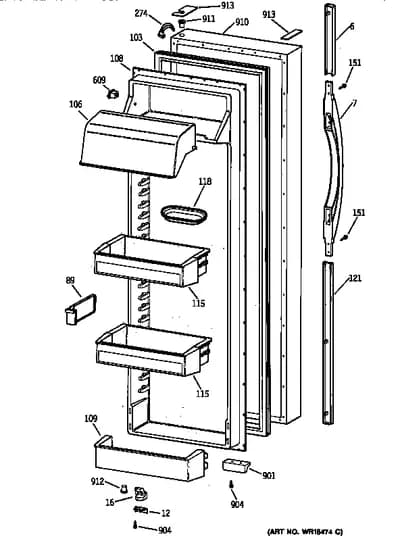

FRESH FOOD DOOR
Parts in FRESH FOOD DOOR
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 6 | – | WR12X10055 Refrigerator Handle Trim | - |
| 7 | – | WR12X10053 Handle Sxs A | - |
| 12 |  | WR02X9244NLA Refrigerator Door Stop | Discontinued |
| 16 | | Refrigerator Cam Closure | Discontinued |
| 89 | | WR02X9444NLA Refrigerator Snugger Module | Discontinued |
| 103 | | WR24X562replaces WR24X0562 Door Gasket | - |
| 106 | | WR22X0524NLA Refrigerator Dairy Door | Discontinued |
| 108 | | WR77X675replaces WR77X0675 Refrigerator Inner Door | - |
| 109 | – | WR71X10061 Refrigerator Module Assembly | - |
| 115 | – | WR71X10057 Refrigerator Module Assembly | - |
| 118 | | Butter Glass Dish | Discontinued |
| 121 | | Refrigerator Handle Trim | - |
| 274 | – | WR23X10004 Hrness Ff Lt | - |
| 609 | | WR23X0426NLA Sw Light Ff | Discontinued |
| 901 | – | WR10X0126 Strkie Mag | - |
| 904 |  | WR01X10610replaces WR01X2134 Refrigerator Screw | $2.27 Parts Dr |
| 910 | – | WR78X10074 Refrigerator Door Assembly | - |
| 911 | | WR01X2041NLA Refrigerator Thimble Door | Discontinued |
| 912 | – | WR01X2132 Thmbl Dr Bk | - |
| 913 | – | WR01X2147 Corner Cover | - |
