Model
Kenmore 363.58477890
Refrigerator (Kenmore 36358477890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58477890Refrigerator (Kenmore 36358477890)
11 diagrams285 parts
Parts Sections (11)
Diagram

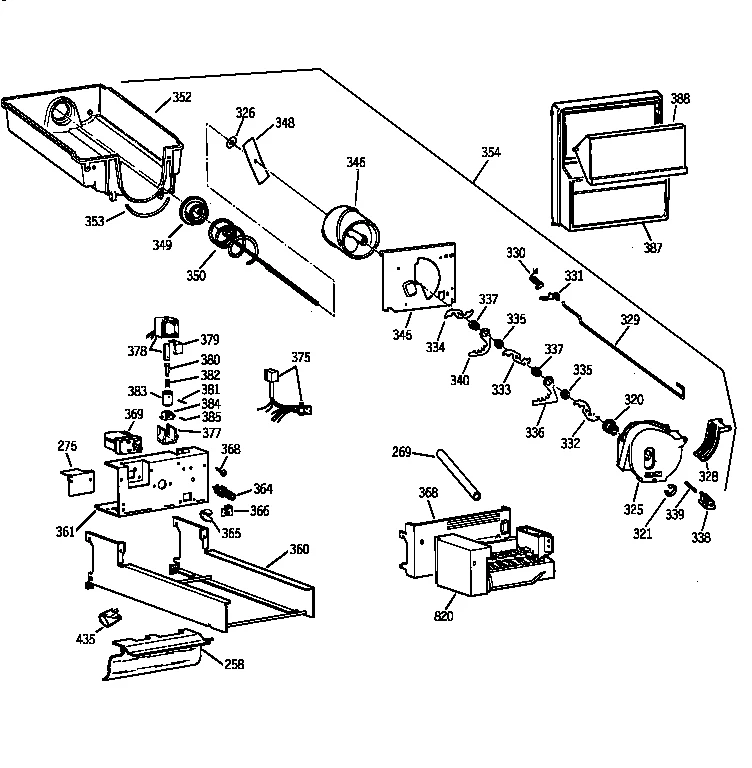

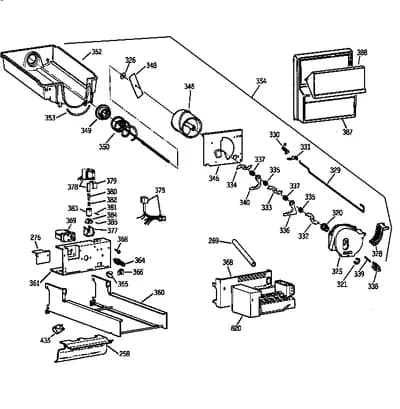

ICE BUCKET
Parts in ICE BUCKET
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 258 |  | Shield Lt Fz | - |
| 269 | | Refrigerator Water Tube | Discontinued |
| 275 | – | WR01X2018 Cover Icemaker Plug | - |
| 325 |  | Refrigerator Ice Crusher Housing | - |
| 328 | | WR17X2059NLA Refrigerator Ice Container Ice Deflector | Discontinued |
| 329 | – | WR17X4210 Dispenser Wire | - |
| 345 | | WR17X2062NLA Refrigerator Ice Crusher Housing Plate | Discontinued |
| 346 |  | Refrigerator Dispenser Auger, Front | - |
| 350 | | Refrigerator Dispenser Auger | - |
| 352 |  | WR30X322replaces WR30X0322 Bucket Dispenser | $58.64 RepairClinic |
| 353 |  | WR2X7905replaces WR02X7905 Bucket Seal | $10.07 ApplianceParts Pro |
| 354 |  | Refrigerator Ice Container Assembly | - |
| 360 | – | WR71X2704 Shelf Bucket | - |
| 361 | | WR17X10070NLA Refrigerator Motor Cover | Discontinued |
| 364 | | WR02X7310NLA Twist Support | Discontinued |
| 368A | | Refrigerator Bracket Ice Maker | - |
| 368B |  | WR01X10618replaces WR01X1788 Refrigerator Screw | $7.18 RepairClinic |
| 369 |  | WR60X10262replaces WR60X0202 Motor C-disp | $142.02 Part Advantage |
| 375 | | WR23X463replaces WR23X0463 Harn Mtr Dis | - |
| 378 |  | WR62X23154replaces WR62X0058 Refrigerator Solenoid Arm Assembly | $85.70 Part Advantage |
| 387 | | Refrigerator Ice Bin Cover, Front | - |
| 388 | | Dr Ice Stor | - |
| 435A |  | WR2X9391replaces WR02X9391 Terminal Socket | $7.98 Part Advantage |
| 435B |  | 40A15replaces STD372402 40a15/22 | $8.96 Parts Dr |
| 820 |  | WR30X10093replaces WR30X0328 Icemaker Crescent | $168.04 Parts Dr |
