Model
Kenmore 363.58477893
Refrigerator (Kenmore 36358477893)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58477893Refrigerator (Kenmore 36358477893)
11 diagrams348 parts

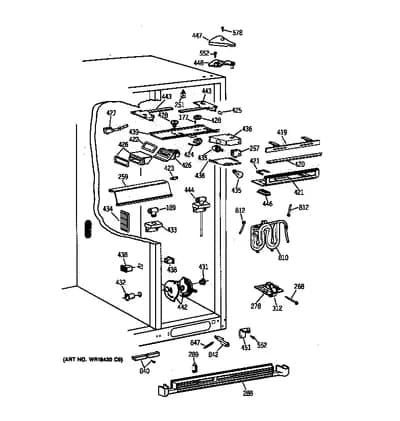

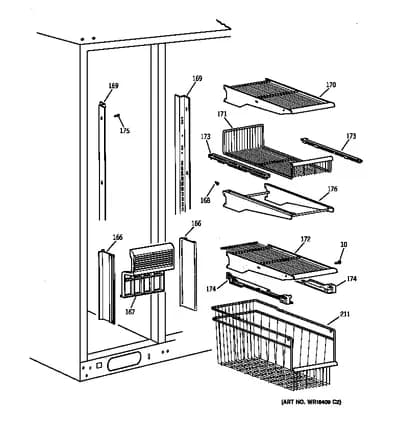

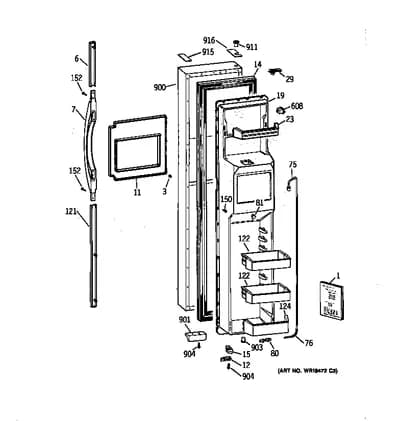

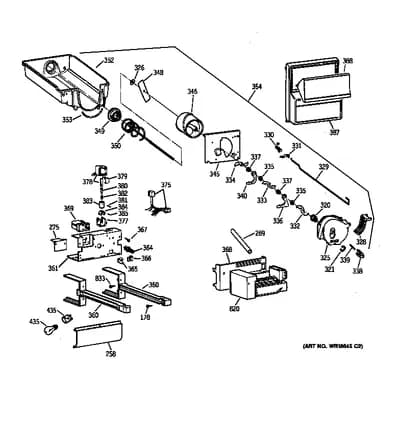

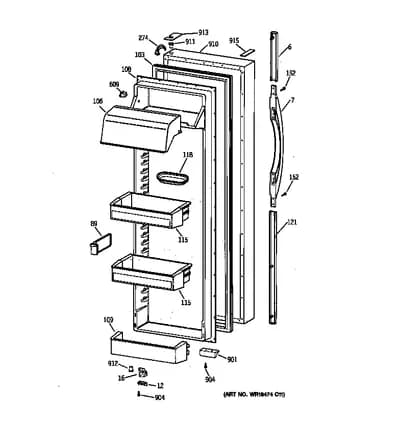

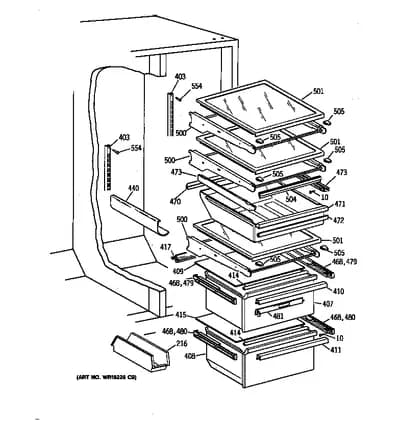

Parts Sections (11)
Diagram

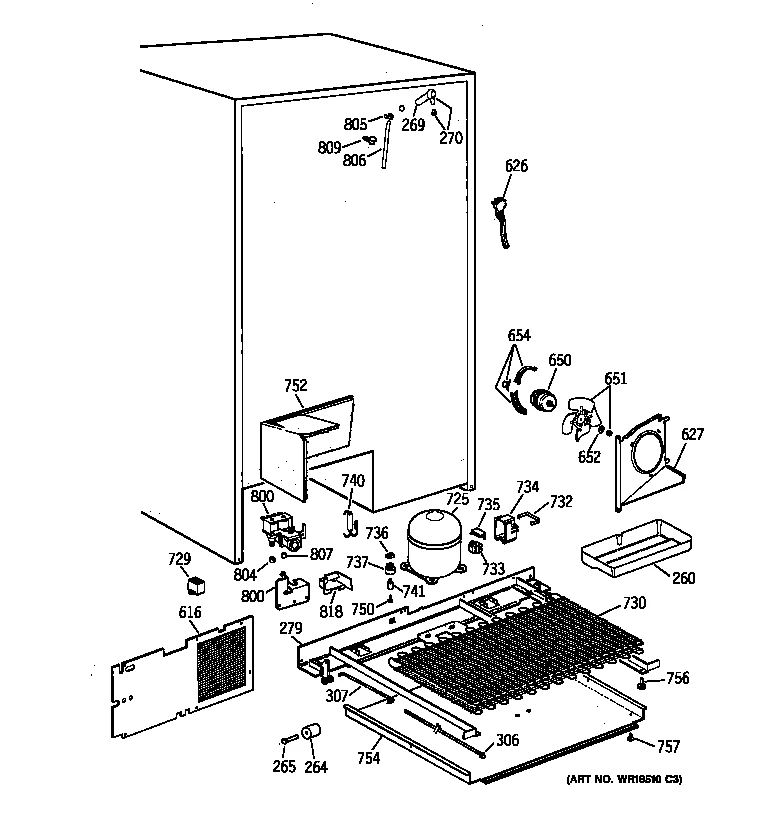

UNIT PARTS
Parts in UNIT PARTS
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 260 |  | WR32X10011NLA Pan Water Diode | Discontinued |
| 264 | | Refrigerator Roller | - |
| 265 | | Refrigerator Wheel Axle | - |
| 269 | | WR2X7927NLA Refrigerator Water Tubing | Discontinued |
| 270A |  | WR2X4754replaces WR1X5223 Refrigerator Clamp Fill Tube | $6.95 ApplianceParts Pro |
| 270B |  | Refrigerator Ice Maker Fill Tube Seal | $27.35 Parts Dr |
| 279 | – | WR17X10397 Rail Mtg Asm | - |
| 306 | – | WR1X2146 Refrigerator Adjustment Screw | - |
| 307 | – | WR1X2145 Link Screw | - |
| 616 | | Refrigerator Access Cover | - |
| 626A |  | Refrigerator Water Tubing Clip | $8.59 Parts Dr |
| 626B |  | WR23X10300replaces WR23X420 Power Cor | - |
| 627 | | Housing Condenser | - |
| 650 |  | WR60X187replaces WR60X10010 Condenser Motor | $180.99 Part Advantage |
| 651A | | Refrigerator Nut | - |
| 651B | | WR60X234NLA Refrigerator Condenser Fan | Discontinued |
| 652 | | Refrigerator Fan Motor Washer | - |
| 654A | | Condenser Grommet | - |
| 654B | | Leg Condenser | - |
| 725 |  | WR87X10226replaces WR87X464 Compressor | $413.09 Part Advantage |
| 729 |  | WR55X24065replaces WR62X80 Refrigerator Capacitor | $41.34 Parts Dr |
| 730 | | WR84X213NLA Refrigerator Condenser | Discontinued |
| 732 | | Cover Clip | - |
| 733 | | WR7X253NLA Relay PTC | Discontinued |
| 734 | | Cover Relay | - |
| 735 | | Refrigerator Overload | - |
| 736 |  | Refrigerator Compressor Mounting Clip | $3.30 RepairClinic |
| 737 |  | WR02X22869replaces WR2X10099 Refrigerator Grommet | $5.10 Part Advantage |
| 740 |  | WR86X25269replaces WR86X96 Refrigerator Filter Dryer | $45.90 Part Advantage |
| 741 |  | Refrigerator Compressor Mounting Post | - |
| 750 |  | Refrigerator Screw | $7.37 ApplianceParts Pro |
| 752 | | Refrigerator Insulation | - |
| 754 | | Refrigerator Floor | - |
| 756 | | Refrigerator Pad | - |
| 757 | | Fastenr P | - |
| 800A | – | WR2X10153 Bracket W | - |
| 800B |  | WR57X10051replaces WR57X111 Refrigerator Water Valve | $41.48 Part Advantage |
| 804 |  | Refrigerator Water Tube Nut, 1/4-in | - |
| 805 | | WR1X5278replaces WR2X3736 Str Relief | $8.59 Parts Dr |
| 806 | | WR2X9245NLA Refrigerator Water Tubing | Discontinued |
| 807A |  | WR02X11330replaces WR2X4048 Nut&union As | $4.50 Part Advantage |
| 807A | – | WR2X448 NUT & SLEEVE 5/16" | - |
| 807B | | Nut & Uni | - |
| 809 |  | Refrigerator Fastener | - |
| 818 | – | WR2X10106 Guard Spl | - |
