Model
Kenmore 363.58482891
Refrigerator (Kenmore 36358482891)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58482891Refrigerator (Kenmore 36358482891)
11 diagrams350 parts
Parts Sections (11)
Diagram

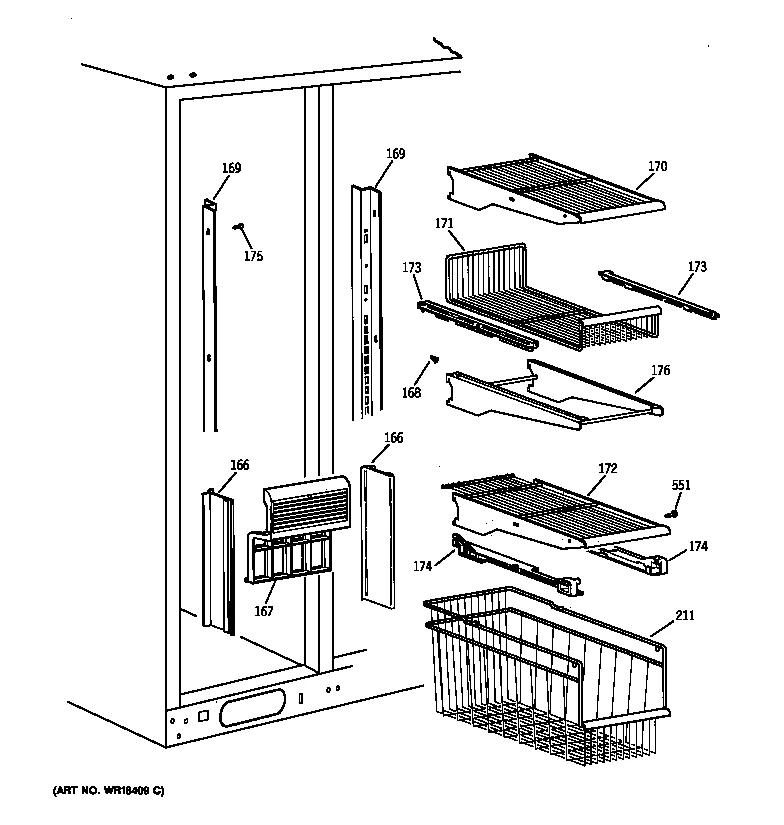

FREEZER SECTION
Parts in FREEZER SECTION
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 166 | – | WR17X3836 Extrusion Cover | - |
| 167 |  | Refrigerator Drain Pan Trough Cover (White) | - |
| 168 | | Refrigerator Clip | - |
| 169A | | Refrigerator Cantilever Shelf Mounting Rail, Left | - |
| 169B | – | WR72X10005 Track Cant S | - |
| 170 | | WR71X2708NLA Refrigerator Shelf Wire | Discontinued |
| 171 | | WR71X2699NLA Refrigerator Wire Basket | Discontinued |
| 172 | | Shelf Freezer Wire | - |
| 173A | | Refrigerator Slide Basket | - |
| 173B | – | WR72X277 Basket Fz Lh | - |
| 174A | | Slide Fz Lh | - |
| 174B | | Slide Fz Rh | - |
| 175 | – | WR1X2023 Refrigerator Screw | - |
| 176 | – | WR71X2698 Cantilever Basket | - |
| 211 | | Refrigerator Freezer Bin | - |
| 551 | | WZ4X244NLA SCR 8-18 AB RNDW 5/8 SS | Discontinued |
