Model
Kenmore 363.58577890
Refrigerator (Kenmore 36358577890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58577890Refrigerator (Kenmore 36358577890)
11 diagrams293 parts
Parts Sections (11)
Diagram

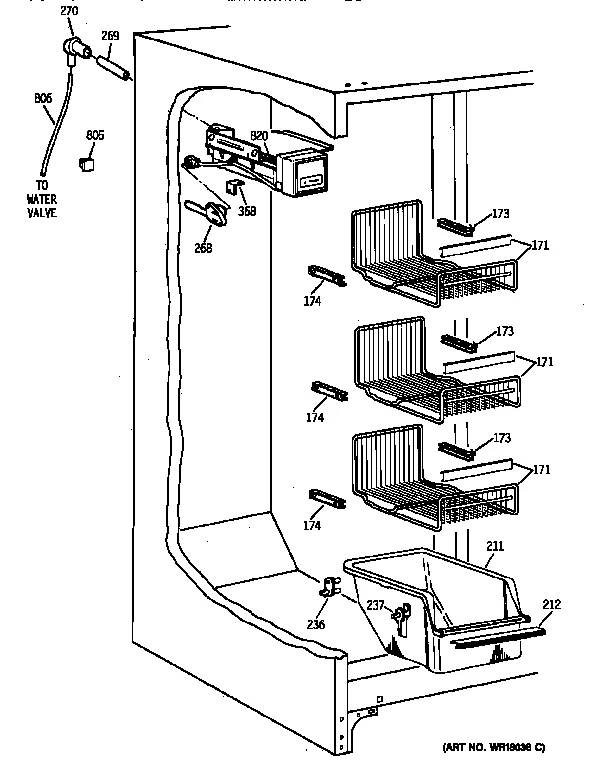

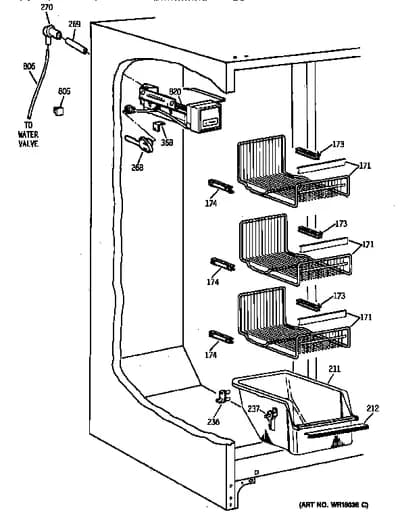

FREEZER SECTION
Parts in FREEZER SECTION
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 171A | – | WR38X10006 Refrigerator Basket Trim | - |
| 171B | – | WR71X2335 Dishwasher Silverware Basket | - |
| 173 |  | WR72X10079replaces WR02X8724 Refrigerator Support | - |
| 174 |  | WR02X8667NLA Refrigerator Slide Support | Discontinued |
| 211 | | WR21X190replaces WR21X0204 Basket Wh Fz | - |
| 212 | – | WR38X10059 Refrigerator Freezer Basket Trim | - |
| 236 | | WR02X4548NLA Refrigerator Support | Discontinued |
| 237 | | Freezer Support Basket | Discontinued |
| 269 | | Refrigerator Water Tube | Discontinued |
| 270A |  | WR2X4754replaces WR01X5223 Refrigerator Clamp Fill Tube | $6.95 ApplianceParts Pro |
| 270B |  | WR2X8474replaces WR02X9153 Refrigerator Grommet | $27.35 Parts Dr |
| 368A |  | WR01X10618replaces WR01X1788 Refrigerator Screw | $7.18 RepairClinic |
| 368B | | WR2X8459replaces WR02X8459 Refrigerator Ice Maker Mounting Bracket | - |
| 805 |  | WR1X5278replaces WR02X3736 Str Relief | $8.59 Parts Dr |
| 806 |  | WR17X11349replaces WR17X2107 Water Line | $8.95 ApplianceParts Pro |
| 820 |  | WR30X10093replaces WR30X0327 Ice Maker | $168.04 Parts Dr |
