Model
Kenmore 363.58577891
Refrigerator (Kenmore 36358577891)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58577891Refrigerator (Kenmore 36358577891)
11 diagrams337 parts
Parts Sections (11)
Diagram

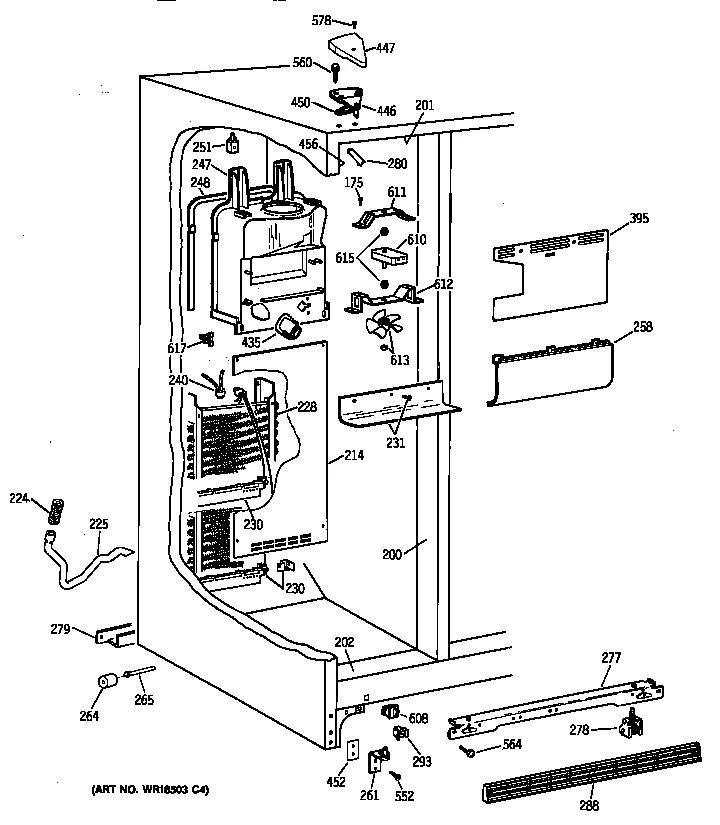

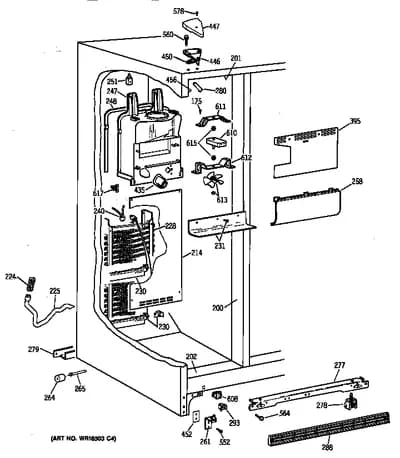

FREEZER SECTION
Parts in FREEZER SECTION
53 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 175 | – | WR01X2023 Refrigerator Screw | - |
| 200 | – | WR40X1730 Refrigerator Breaker Strip | - |
| 201 | – | WR40X1731 Refrigerator Breaker Strip | - |
| 202 | – | WR40X1732 Refrigerator Breaker Strip | - |
| 214A |  | WR14X0456NLA Refrigerator Evaporator Cover Gasket | Discontinued |
| 214B | | WR01X2128NLA Refrigerator Cover Clip Evaporator | Discontinued |
| 214C | | Refrigerator Evaporator Coils Cover | - |
| 224 | – | WR02X8657 Refrigerator Grommet | - |
| 225A | | WR02X8293NLA Refrigerator Drain Tube | Discontinued |
| 225B | | WR01X5042NLA Refrigerator Clamp | Discontinued |
| 228 |  | WR87X29147replaces WR85X0309 Lo Side Asm | $278.45 Part Advantage |
| 230A | | WR2X8647replaces WR02X8647 Refrigerator Heater Bracket | - |
| 230B |  | WR51X443replaces WR51X0461 Heater Harness | $110.67 Part Advantage |
| 231A | – | WR01X2110 Plug Fastner | - |
| 231B | – | WR01X1987 Refrigerator Rivet | - |
| 231C | – | WR17X3651 Refrigerator Deflector | - |
| 240 |  | WR50X122replaces WR50X0122 Refrigerator Defrost Thermostat | $34.98 Part Advantage |
| 247 | – | WR17X10213 Refrigerator Orifice Evaporator | - |
| 248 | | WR14X0493NLA Refrigerator Foam Strip | Discontinued |
| 251 | | WR02X2880NLA Refrigerator Support | Discontinued |
| 258 |  | WR17X3489NLA Refrigerator Light Cover | Discontinued |
| 261 |  | WR13X10020replaces WR13X0658 Hg Btm Pn Cm | $34.12 Part Advantage |
| 264 |  | WR2X3594replaces WR02X3594 Refrigerator Wheel | $22.67 RepairClinic |
| 265A | | WR02X3595NLA Refrigerator Axle | Discontinued |
| 265B | | WR02X3598NLA Refrigerator Cotter Pin | Discontinued |
| 265C | | WR02X4742NLA Axle & Cotte | Discontinued |
| 277 | | Rail Mach Mt | - |
| 278 | | WR2X4858replaces WR02X4858 Refrigerator Wheel | - |
| 279 | – | WR17X10058 Rail Mach Mt | - |
| 280 | – | WR02X8519 C Cap Oc Ad | - |
| 288 | – | WR74X0209 Refrigerator Base Grille | - |
| 293 | – | WR02X7080 Grille Clip | - |
| 395 | | WR17X2905NLA Fan Shield | Discontinued |
| 435A |  | WR2X9391replaces WR02X9391 Terminal Socket | $7.98 Part Advantage |
| 435B |  | 40A15replaces STD372402 40a15/22 | $8.96 Parts Dr |
| 446 | – | WR13X0660 Hge Top Asm | - |
| 447A | | WR02X8843NLA Cvr Hg Ff Ad | Discontinued |
| 447B | – | WR02X8844 Cvr Hg Fz Ad | - |
| 450 | | WR2X4194replaces WR02X4194 Refrigerator Shim | - |
| 452 | | WR2X9443replaces WR02X9443 Refrigerator Hinge Shim | $16.13 RepairClinic |
| 456 | – | WR40X1733 Refrigerator Breaker Strip | - |
| 552 |  | WR01X10600replaces WR01X10034 Scr 12-24 Tt | $7.37 ApplianceParts Pro |
| 560 | | WR01X2140NLA Refrigerator Screw | Discontinued |
| 564 | | WE2X186Dreplaces WR01X1194 Refrigerator Screw | - |
| 578 |  | WZ2X464Dreplaces WZ02X0464 Refrigerator Screw | - |
| 608 |  | WR23X427replaces WR23X0368 Refrigerator Light Switch | $59.60 Parts Dr |
| 610 |  | WR60X10008replaces WR60X10007 Evaporator Motor | $167.07 Parts Dr |
| 611 | | Refrigerator Condenser Fan Motor Bracket | - |
| 612 | | WR02X10101NLA Refrigerator Bracket Evaporator | Discontinued |
| 613A |  | WR60X114replaces WR02X3198 Ring/fan Bld | $14.23 Part Advantage |
| 613B | | Refrigerator Evaporator Fan Blade | - |
| 615 |  | Refrigerator Evaporator Fan Motor Grommet | $5.09 Part Advantage |
| 617 | – | WR02X10097 Refrigerator Grommet Screw | - |
