Kenmore 363.58772896
Refrigerator (Kenmore 36358772896)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58772896Refrigerator (Kenmore 36358772896)
11 diagrams363 parts

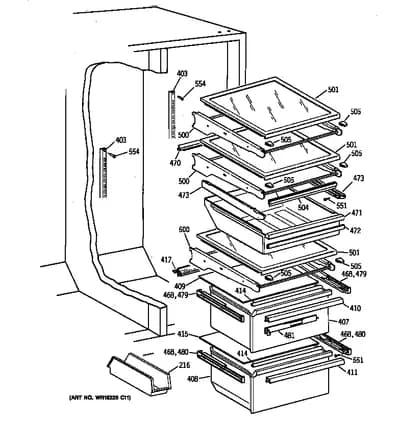

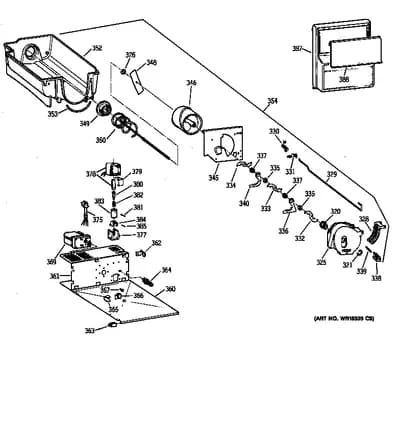

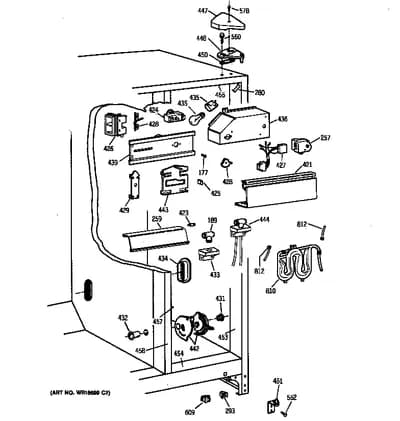

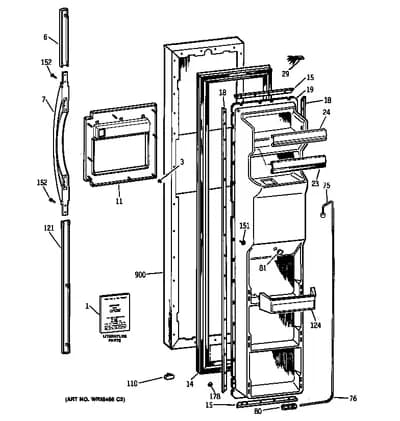

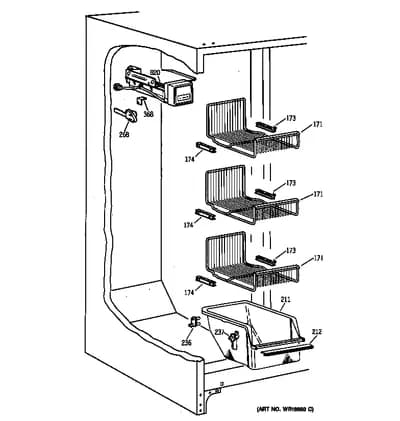

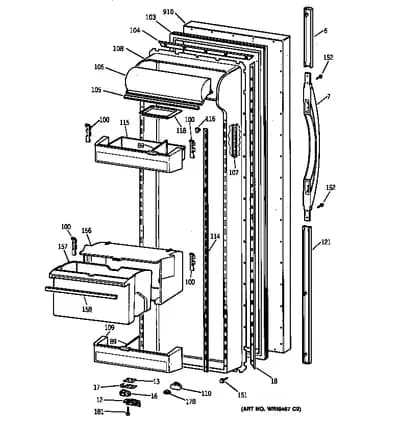

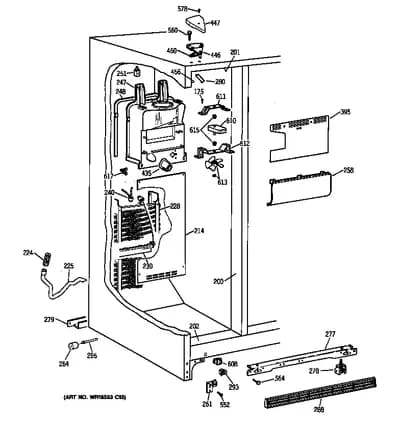

Parts Sections (11)
Diagram

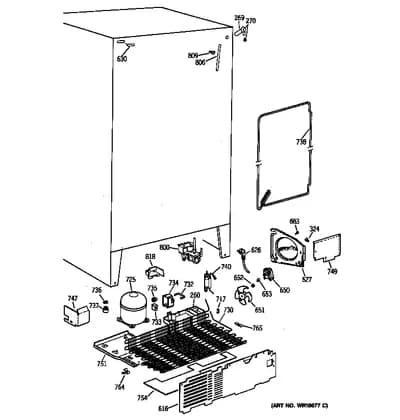

UNIT PARTS
Parts in UNIT PARTS
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 260 |  | WR32X1427NLA Refrigerator Water Dispenser Pan | Discontinued |
| 269 | | WR2X8668NLA Refrigerator Water Tube | Discontinued |
| 270A |  | WR2X8474replaces WR2X9153 Refrigerator Grommet | $27.35 Parts Dr |
| 270B |  | WR2X4754replaces WR1X5223 Refrigerator Clamp Fill Tube | $6.95 ApplianceParts Pro |
| 324A |  | Refrigerator Discharge Baffle Plug Button | - |
| 324B | | Button Plug | - |
| 616 | – | WR82X10042 Refrigerator Access Cover | - |
| 626A |  | Refrigerator Water Tubing Clip | $8.59 Parts Dr |
| 626B |  | WR23X10300replaces WR23X108 Power Cord | - |
| 627 | | Housing Condenser | - |
| 630 |  | Refrigerator Cabinet Sealer Plug | $3.30 RepairClinic |
| 630 | | Refrigerator Button Plug | - |
| 650 | | Refrigerator Condenser Fan Motor | - |
| 651 | – | WR60X10023 Condenser Fan Blade | - |
| 652 | – | WR2X10323 Refrigerator Complete Ring | - |
| 653 |  | WR02X10322replaces WR2X10360 Refrigerator Dust Cap | $16.01 Parts Dr |
| 683 | – | WR1X10127 Scr 8-32 | - |
| 717 | – | WR2X10335 Clip Condenser | - |
| 725 |  | WR87X10226replaces WR87X10010 Hi Side Asm | $413.09 Part Advantage |
| 730 | | Refrigerator Condenser | - |
| 732 | | Cover Clip | - |

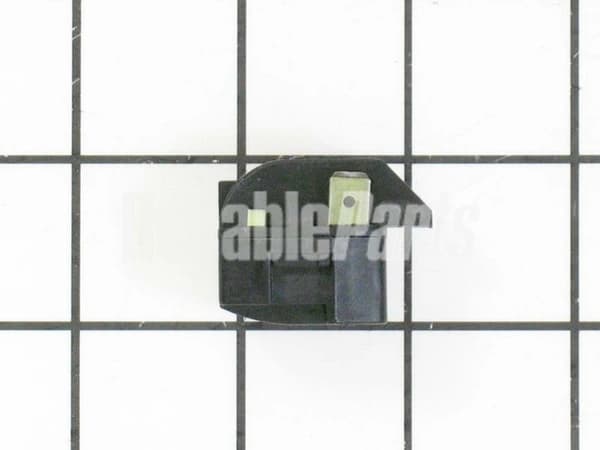

| 733 |  | WR07X10099replaces WR7X277 Refrigerator Compressor Start Relay | $78.89 RepairClinic |
| 734 | | Cover Relay | - |
| 735 | – | WR8X10006 Refrigerator Overload | - |
| 736 |  | Refrigerator Compressor Mounting Clip | - |
| 737 |  | WR02X22869replaces WR2X10099 Refrigerator Grommet | $5.10 Part Advantage |
| 738A |  | Clip Condenser | - |
| 738B | – | WR84X168 Refrigerator Condenser | - |
| 740 |  | WR86X25269replaces WR86X96 Refrigerator Filter Dryer | $45.90 Part Advantage |
| 747 | | Refrigerator Baffle | - |
| 749 | – | WR17X4148 Refrigerator Baffle | - |
| 751 |  | WR17X10202replaces WR17X10204 Plate Comp M | $43.37 ApplianceParts Pro |
| 754 | – | WR82X10067 Condenser Floor Baffle | - |
| 764 |  | Technician Clip Condenser | - |
| 765 | | WR1X1972replaces WR1X1985 Clip Condenser | - |
| 800 |  | WR57X10051replaces WR57X10018 Refrigerator Water Valve | $41.48 Part Advantage |
| 806 |  | WR17X11349replaces WR17X2107 Water Line | $8.95 ApplianceParts Pro |
| 809 |  | Refrigerator Fastener | - |
| 818 | | WR02X12259replaces WR2X10422 Guard Spl | - |
