ModelKenmore
363.58775890Refrigerator (Kenmore 36358775890)
11 diagrams328 parts
Parts Sections (11)
Diagram

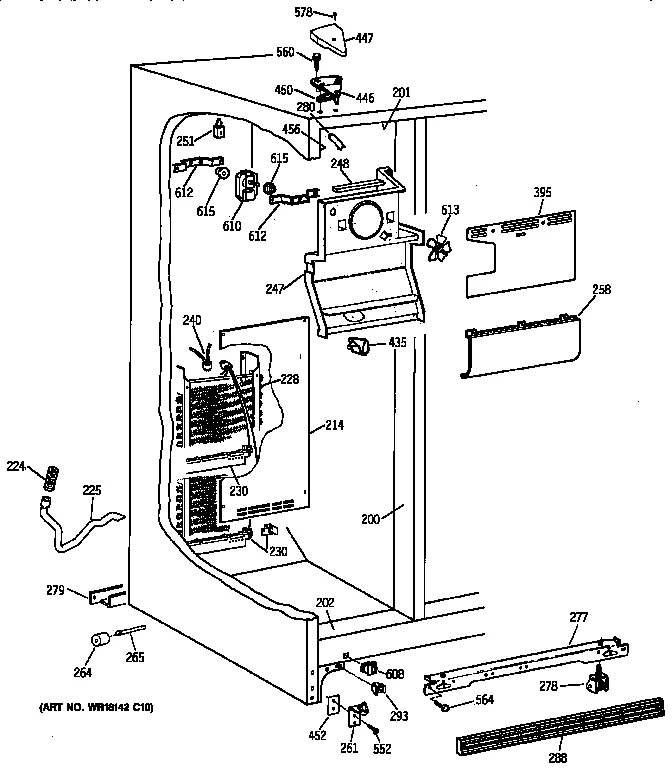

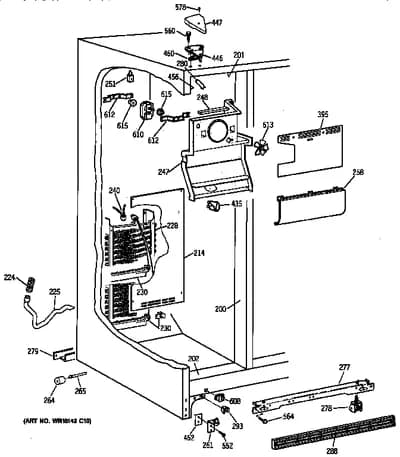

FREEZER SECTION
Parts in FREEZER SECTION
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 200 | – | WR40X1730 Refrigerator Breaker Strip | - |
| 201 | – | WR40X1731 Refrigerator Breaker Strip | - |
| 202 | – | WR40X1732 Refrigerator Breaker Strip | - |
| 214A |  | WR14X0456NLA Refrigerator Evaporator Cover Gasket | Discontinued |
| 214B | | WR01X2128NLA Refrigerator Cover Clip Evaporator | Discontinued |
| 214C | | Refrigerator Evaporator Coils Cover | - |
| 224 | – | WR02X8657 Refrigerator Grommet | - |
| 225A | | WR01X5042NLA Refrigerator Clamp | Discontinued |
| 225B | | WR02X8293NLA Refrigerator Drain Tube | Discontinued |
| 228 |  | WR87X29147replaces WR85X0309 Lo Side Asm | $278.45 Part Advantage |
| 230A | | WR2X8647replaces WR02X8647 Refrigerator Heater Bracket | - |
| 230B |  | WR51X443replaces WR51X0461 Heater Harness | $110.67 Part Advantage |
| 240 |  | WR50X122replaces WR50X0122 Refrigerator Defrost Thermostat | $34.98 Part Advantage |
| 247A | | WR02X4845NLA Support Orifice | Discontinued |
| 247B | | WR17X3488NLA Refrigerator Orifice | Discontinued |
| 248 | | WR14X0493NLA Refrigerator Foam Strip | Discontinued |
| 251 | | WR02X2880NLA Refrigerator Support | Discontinued |
| 258 |  | WR17X3489NLA Refrigerator Light Cover | Discontinued |
| 261 | | Refrigerator Hinge | Discontinued |
| 264 |  | WR2X3594replaces WR02X3594 Refrigerator Wheel | $22.67 RepairClinic |
| 265A | | WR02X4742NLA Axle & Cotte | Discontinued |
| 265B | | WR02X3595NLA Refrigerator Axle | Discontinued |
| 265C | | WR02X3598NLA Refrigerator Cotter Pin | Discontinued |
| 277 | | Rail Mach Mt | - |
| 278 | | WR2X4858replaces WR02X4858 Refrigerator Wheel | - |
| 279 | – | WR17X10058 Rail Mach Mt | - |
| 280 | – | WR02X8524 Bk Corner Cp | - |
| 288 | | WR74X198replaces WR74X0198 Refrigerator Base Grille | - |
| 293 | – | WR02X7080 Grille Clip | - |
| 395 | | WR17X2905NLA Fan Shield | Discontinued |
| 435A |  | WR2X9391replaces WR02X9391 Terminal Socket | $7.98 Part Advantage |
| 435B |  | 40A15replaces STD372402 40a15/22 | $8.96 Parts Dr |
| 446 | | WR13X645replaces WR13X0645 Hinge Tp Asm | - |
| 447 | – | WR02X8534 Hinge Cvr Bk | - |
| 450 | | WR2X4194replaces WR02X4194 Refrigerator Shim | - |
| 452 | | WR2X9443replaces WR02X9443 Refrigerator Hinge Shim | $16.13 RepairClinic |
| 456 | – | WR40X1733 Refrigerator Breaker Strip | - |
| 552 |  | WR01X10600replaces WR01X2204 Refrigerator Screw | $7.37 ApplianceParts Pro |
| 560 | | WR01X2140NLA Refrigerator Screw | Discontinued |
| 564 | | WE2X186Dreplaces WR01X1194 Refrigerator Screw | - |
| 578 |  | WZ2X464replaces WZ02X0464 Refrigerator Screw | - |
| 608 |  | WR23X427replaces WR23X0368 Refrigerator Light Switch | $59.60 Parts Dr |
| 610 | | Refrigerator Fan Motor | Discontinued |
| 612 | | WR02X8549NLA Refrigerator Bracket Evaporator | Discontinued |
| 613A |  | WR60X114replaces WR02X3198 Ring/fan Bld | $14.23 Part Advantage |
| 613B | | WR60X114replaces WR60X0247 Refrigerator Fan Blade | $14.23 Part Advantage |
| 615 | | Grommet | Discontinued |
