Model
Kenmore 363.58775891
Refrigerator (Kenmore 36358775891)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58775891Refrigerator (Kenmore 36358775891)
11 diagrams341 parts
Parts Sections (11)
Diagram

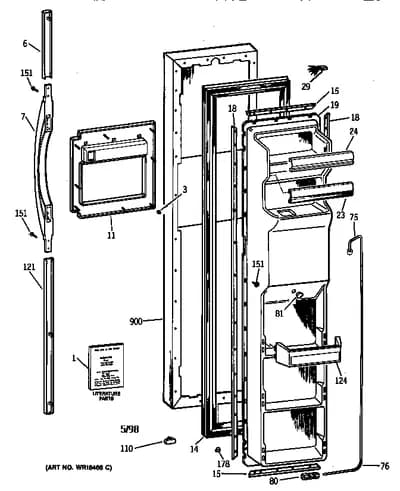

FREEZER DOOR
Parts in FREEZER DOOR
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1A |  | Refrigerator Owner's Manual | $2.56 RepairClinic |
| 1B | – | SR1233 Refrigerator Energy Guide | - |
| 1C | – | SR3849 Refrigerator Parts List | - |
| 1D | – | SR6179 Refrigerator User's Manual | - |
| 1E | – | 31-51188 Refrigerator Mini Wiring Manual | - |
| 3 | | WR2X8669replaces WR02X8669 Refrigerator Fastener Tub | - |
| 6 | – | WR12X10055 Refrigerator Handle Trim | - |
| 7 | – | WR12X10089 Handle Sxs A | - |
| 11 | – | WR38X10065 Refrigerator Trim Recess | - |
| 14 | | WR24X0531NLA Refrigerator Freezer Door Gasket | Discontinued |
| 15 | | Refrigerator Retainer Strip | - |
| 18 | | WR17X2092NLA Refrigerator Freezer Door Gasket Retainer | Discontinued |
| 19 | – | WR77X0666 Dr Inner Fz | - |
| 23 | | Refrigerator Door Shelf | - |
| 24 | | Refrigerator Door Shelf | - |
| 29 | | WR23X448replaces WR23X0448 Refrigerator Drive Hinge Harness | - |
| 75 | | Grommet Tube | Discontinued |
| 76 | | WR2X8933replaces WR02X8933 Refrigerator Sleeve | - |
| 80 |  | WR02X11330replaces WR02X8545 Union Nut | $4.50 Part Advantage |
| 81 | | WR01X2077NLA Refrigerator Button Plug | Discontinued |
| 110 | | WR02X8989NLA Support Bumper | Discontinued |
| 121 | | Refrigerator Handle Trim | - |
| 124 | – | WR71X10048 Refrigerator Module Assembly | - |
| 151 |  | WR01X10623replaces WR01X1554 Shoulder Screw | $4.39 Parts Dr |
| 178 | | WR02X6058NLA Refrigerator Drain Plug | Discontinued |
| 900 | – | WR78X10108 Refrigerator Door Foam Assembly | - |
