Model
Kenmore 363.58777890
Refrigerator (Kenmore 36358777890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.58777890Refrigerator (Kenmore 36358777890)
11 diagrams329 parts
Parts Sections (11)
Diagram

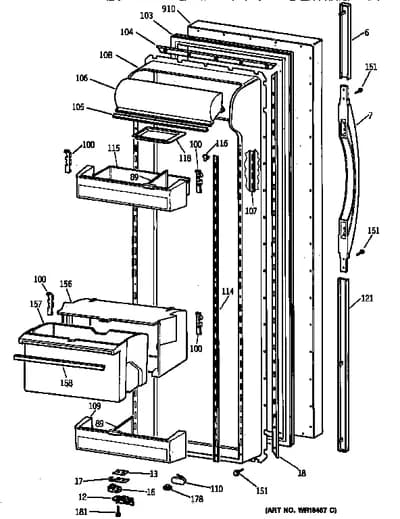

FRESH FOOD DOOR
Parts in FRESH FOOD DOOR
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 6 |  | WR12X10051NLA Refrigerator Handle Trim | Discontinued |
| 7 | – | WR12X10039 Handle Sxs A | - |
| 12 | | WR2X9302replaces WR02X9302 Stop Door Ad | - |
| 13A | | WR02X7489NLA Refrigerator Nutstrip | Discontinued |
| 13B | | WR02X7490NLA Shim Cam | Discontinued |
| 16 | | WR02X7512NLA Refrigerator Riser Cam | Discontinued |
| 18 | | WR17X2092NLA Refrigerator Freezer Door Gasket Retainer | Discontinued |
| 89 | | WR02X7957NLA Refrigerator Snugger Module | Discontinued |
| 100A | – | WR02X8409 Hook Mdl R/s | - |
| 100B | | WR02X8410NLA Hook Mdl L/s | Discontinued |
| 103 | | WR24X0526NLA Refrigerator Gasket | Discontinued |
| 104 | | WR17X1168NLA Refrigerator Door Gasket Retainer | Discontinued |
| 105 | | Refrigerator Door Trim | - |
| 106 | – | WR22X0378 Refrigerator Dairy Door | - |
| 107 | – | WR72X0091 Door Track | - |
| 108 | – | WR77X0506 Dr Inner Ff | - |
| 109 | – | WR71X10050 Refrigerator Shelf | - |
| 110 | | WR02X8989NLA Support Bumper | Discontinued |
| 114 | – | WR72X0092 Refrigerator Shelf Track | - |
| 115 | – | WR71X10049 Refrigerator Door Shelf | - |
| 116 | | WR02X7829NLA Cap Drive Track | Discontinued |
| 118 | | WR19X5003NLA Butter Dish | Discontinued |
| 121 | | Refrigerator Handle Trim | - |
| 151 |  | WR01X10623replaces WR01X1554 Shoulder Screw | $4.39 Parts Dr |
| 156 | – | WR32X1152 Yoke & Hook | - |
| 157 | – | WR22X10005 Refrigerator Storage Bin | - |
| 158 | – | WR38X10063 Bin Trim Assembly | - |
| 178 | | WR02X6058NLA Refrigerator Drain Plug | Discontinued |
| 181 | – | WZ06X0105 Refrigerator Screw | - |
| 910 | – | WR17X10102 DOOR FOAM ASM FF AD | - |
